Gate Valve vs Butterfly Valve For Isolation Of Food Packaging Industry
Related Products

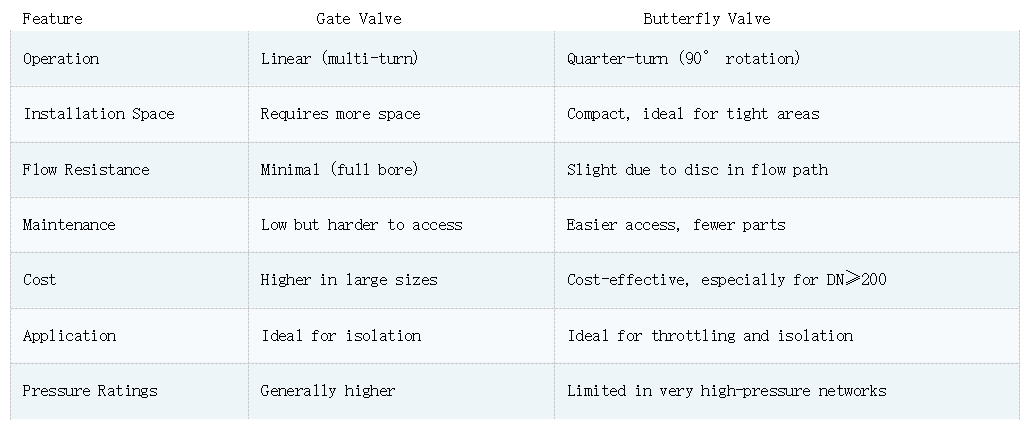

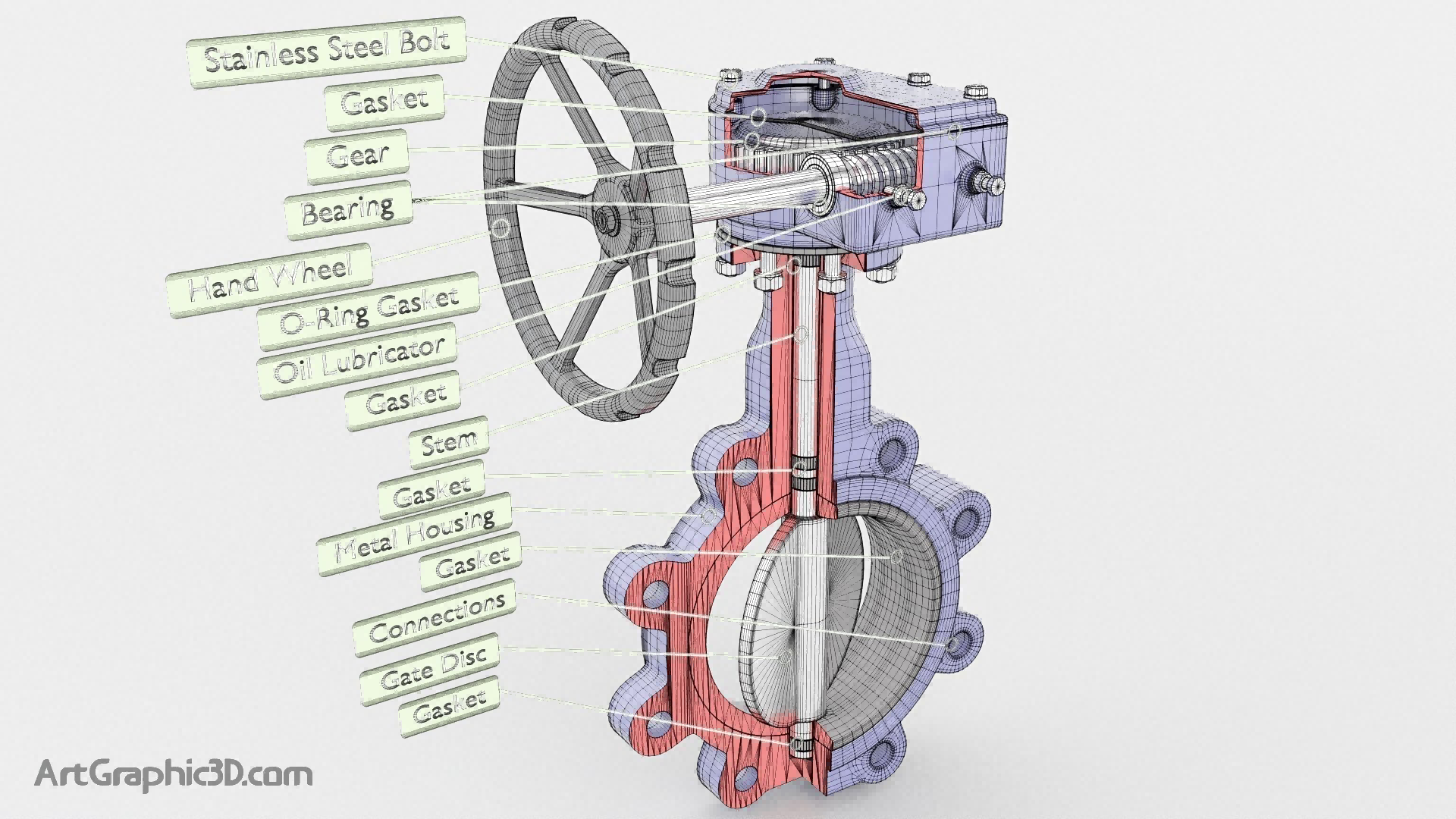

Both gate valves and butterfly valves are used for shut-off control, but butterfly valves can also regulate flow by partially closing the disc. Classified as a quarter-turn valve, a butterfly valve closes significantly faster than a multi-turn gate valve. While gate valves are preferred in high-pressure systems, butterfly valves are better suited for larger nominal diameters.
Recommended Products

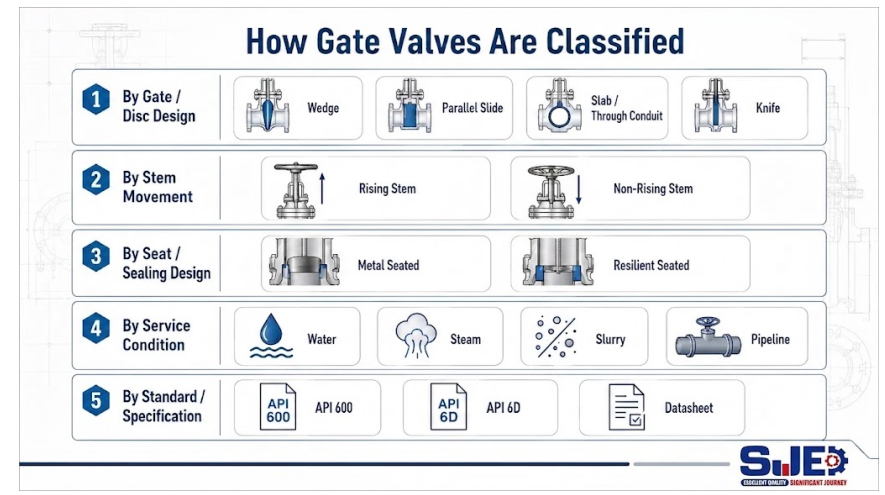

Types of Gate Valves
Gate valves come in various configurations, each engineered for specific application requirements.
The most common types include:
1: Rising Stem Gate Valves: As the valve opens, the stem moves upward, providing a clear visual indication of whether the valve is open or closed.
2: Non-Rising Stem (NRS) Gate Valves: In this design, the stem does not move vertically during operation, making it ideal for installations with limited overhead space.
3:Parallel Slide Gate Valves: These valves feature two parallel discs sealing against each other to achieve tight shut-off, commonly used in low-pressure systems.
4: Wedge Gate Valves: The most prevalent type of gate valve, wedge gate valves utilize a wedge-shaped disc seating against metal seats to ensure a reliable seal.
