Ball Valves

The function of Ball Valve

Q: What is the main function of a ball valve in pipeline systems?

A: The ball valve is a widely‑used rotary fluid control component for industrial pipeline systems. Its core functions include medium isolation, on‑off cut‑off and flow switching for various liquid and gas media. It can quickly open or close pipelines by 90‑degree rotation of the ball core, reliably blocking medium flow and preventing internal and external leakage under normal or differential‑pressure working conditions. It supports pipeline isolation for equipment overhaul, system commissioning and emergency shut‑down. Besides, full‑bore ball valves allow pigging operations with minimum pressure loss, while reduced‑bore versions realize compact flow control. It maintains stable sealing performance under different pressure grades from Class150 to Class2500 for safe operation of process pipelines.

Conclusion: Therefore, the main function of the ball valve is to realize reliable on‑off, isolation and flow switching of pipeline media, providing essential safety guarantees for pipeline normal running, equipment maintenance and emergency disposal.

The principle of using Ball Valve

Q: What is the working principle of a ball valve?

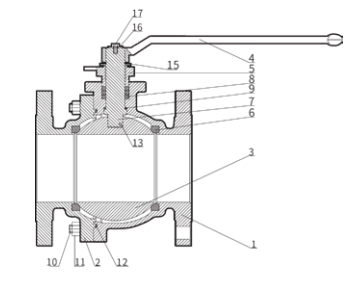

A: The working principle of the ball valve depends on the 90‑degree rotary movement of the internal spherical ball. When the valve opens, the through‑hole on the spherical ball aligns with the pipeline passage, so the medium can pass through smoothly. When the valve closes, rotating the ball by 90° misaligns the ball bore from the pipeline, and the pre‑loaded valve seat seals closely against the ball surface to achieve medium shut‑off. Floating‑ball valves rely on medium pressure to press the ball against the outlet seat for sealing. Trunnion‑mounted ball valves adopt upper and lower trunnion shafts to support the ball, greatly reducing operating torque under high‑pressure differential conditions. Top‑entry ball valves allow internal component maintenance without removing the whole valve from the pipeline. Different seal material combinations can be selected for soft‑seal bubble‑tight shut‑off or metal‑to‑metal hard‑seal for high‑temperature and abrasive media.

Conclusion: Therefore, the operating principle of the ball valve uses 90‑degree ball rotation to complete pipeline opening and closing. Different structural designs including floating‑ball, trunnion‑mounted and top‑entry adapt to various pressure and medium conditions, realizing efficient and safe fluid control for industrial pipelines.

The operating conditions and advantages of Ball Valve

Q: What are the common applications and key advantages of Ball Valves?

A: Ball valves are widely used in multiple industrial sectors including oil & gas, petrochemical, power, water treatment and general process industries. They are suitable for working conditions covering pressure Class150‑Class2500 (PN16‑PN420), sizes from NPS 1/2" up to NPS 40". They handle diverse media such as natural gas, crude oil, water, steam, chemical solvents and partial abrasive process fluids. Its key advantages include:

Fast On‑off Response: Only requiring 90‑degree rotation, ball valves realize rapid opening and closing for emergency cut‑off scenarios.

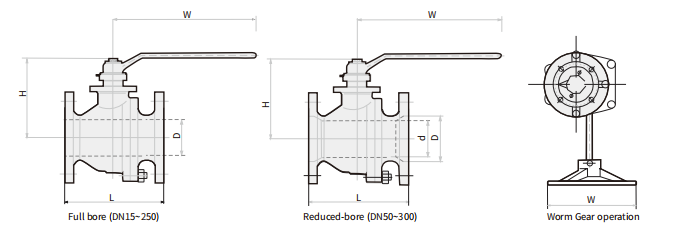

Excellent Sealing Performance: Soft‑seat design achieves bubble‑tight zero‑leakage shut‑off; metal hard‑seat option adapts for high‑temperature, high‑pressure and particle‑containing media. Low Flow Resistance: Full‑bore ball valves offer nearly unobstructed flow passage, suitable for pigging and low pressure‑drop requirements. Trunnion‑mounted structure delivers low operating torque even under high differential pressure.

Diversified Structural Options: Floating‑ball for small‑size low‑pressure service; trunnion‑mounted for large‑size high‑pressure service; top‑entry design supports inline maintenance to reduce system downtime.

High Standard Compatibility: Manufactured complying with API‑6D, ASME B16.34 standards, supporting full‑bore / reduced‑bore configuration and multiple body material options like WCB, LCB, stainless steel and duplex steel.

Flexible Actuation Compatibility: Can be equipped with manual, electric, pneumatic or hydraulic actuators for manual operation or automatic remote control in automated process systems.

Conclusion: Therefore, the ball valve is a versatile high‑reliability fluid control solution for industrial pipeline systems. With prominent strengths of quick operation, reliable sealing, low flow resistance and rich structural selections, it serves as a core on‑off component across numerous process industries.

As a leading industrial valve manufacturer, SJ is proud to deliver high‑performance ball valve solutions tailored for demanding working conditions in oil‑gas, petrochemical, power and new‑energy industries. SJ supplies floating‑ball, trunnion‑mounted and top‑entry ball valves covering Class150‑Class2500, size range NPS 1/2"‑40". Our ball valves are available in full‑bore and reduced‑bore versions, manufactured with premium casting and forging materials such as WCB, LCB, 304/316L and duplex stainless steel. Optimized spring‑loaded seat structures ensure stable sealing performance for various gas and liquid media. Valves can be fitted with manual, electric or pneumatic actuators to meet site automation requirements. Strictly produced and tested in accordance with API‑6D and ASME B16.34 international standards, SJ ball valves provide outstanding sealing reliability, low operating torque and long service life, fully satisfying complex technical requirements of critical industrial process pipelines.
