Can be high sealing, leakage prevention and safe and reliable measurement of liquid level under high temperature, high pressure, high viscosity, strong corrosive conditions
Can be high sealing, leakage prevention and safe and reliable measurement of liquid level under high temperature, high pressure, high viscosity, strong corrosive conditions

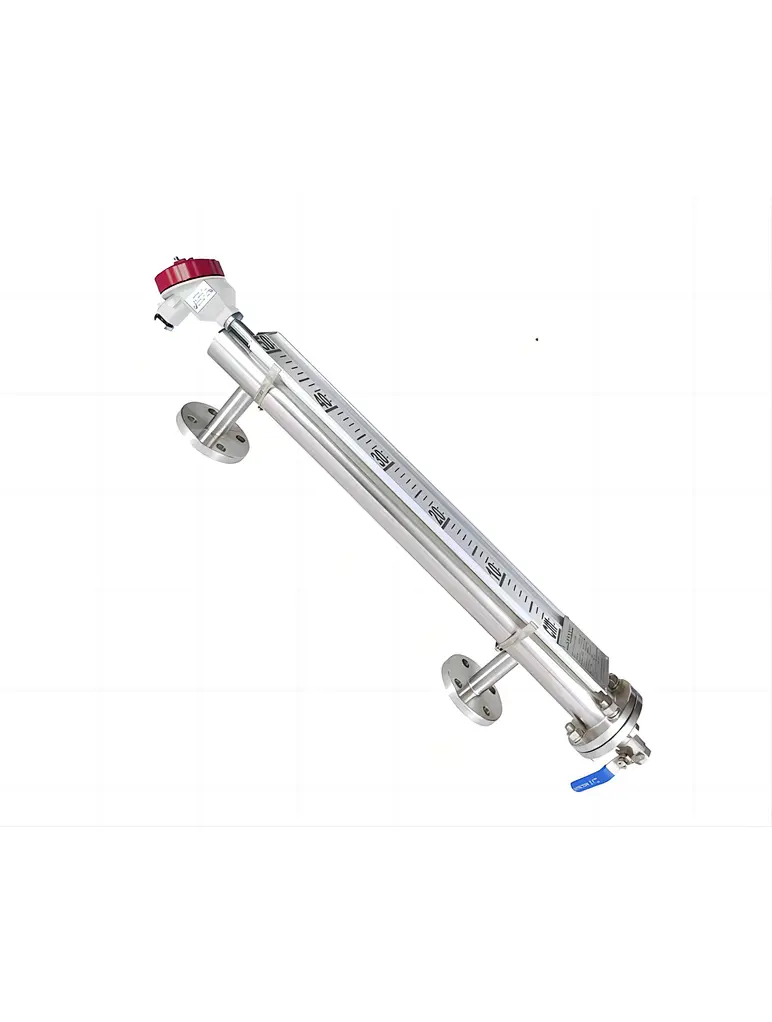

Magnetic Level Gauge
Cost-effective level measurement; no power supply needed
Measuring range: 0.3…5.5 / 1...18 ft (others on request)
Density: 700…1200 kg/m3 / 43.7…74.91 lb/ft3
-70…+200°C / -94…+392°F; -1…40 barg / -14.5…580 psig
Measuring range: 0.3…5.5 / 1...18 ft (others on request)
Density: 700…1200 kg/m3 / 43.7…74.91 lb/ft3
-70…+200°C / -94…+392°F; -1…40 barg / -14.5…580 psig
Quantity
Magnetic Level Gauge Manufacturer
• A variety of specifications to adapt to high pressure, high temperature, corrosive environment;
• PVC, PP, PVDF materials are suitable for places with strong acid and alkali; • SUS304/316 metal material is suitable for high temperature and high pressure tank;
• The display is eye-catching, the reading is intuitive and not affected by sudden temperature changes; • With on-site indication, large measurement range, no blind spot;
• Multi-point control, easy installation and cost saving;
• Special specifications can also be customized to meet customer needs.
The magnetic level gauge is designed according to the principle of buoyancy and magnetic coupling. A ring-shaped magnet float is installed in the closed tube. When the liquid level in the measured tank tank rises and falls, the float in the body tube of the level gauge also rises and falls. The permanent magnet steel in the float is transmitted to the onsite indicator through magnetic coupling, and pushes the red and white flipping columns to turn 180°. When the liquid level rises, the flipping column turns from white to red, and when the liquid level drops, the flipping column turns from red to white. The red and white boundaries of the indicator are the actual height of the medium liquid level in the container, so as to realize the height of the liquid level.
It is suitable for liquid level, oil level, oil-water interface of various towers, tanks, tanks, spherical containers or boilers in the production of metallurgy, petroleum, chemical industry, shipbuilding, environmental protection, electric power, papermaking, pharmaceuticals, printing and dyeing, food, municipal and other industries. , Continuous measurement and control of the foam interface.
S J COMPANTY AS THE magnetic level gauges suppliers IN Generally valve body adopts investment casting technology. Advanced technology to ensure that the valve body has no sand holes, surface more smooth and quality more reliable.
S J magnetic liquid level gauge go through the painstaking design and rigorous quality testing to achieve next-level performance.
