¼” thru 10”Vacuum Ball Valve Good Sealing Properties In The Shut-Off Position, Quick Response Time
¼” thru 10”Vacuum Ball Valve Good Sealing Properties In The Shut-Off Position, Quick Response Time
Vacuum Ball Valve
-Rateing Range:Class 150 to Class 2500
-Size Range ¼” thru 10” (Class Dependent)
-Full Bore and Reduced Bore
-Body Wall Thickness ASME B16.34, Forged or Cast Versions
-End Connections: SW, BW, RF, RTJ, NPT, BSP, Special
-Fire-Safe Design API 607
-Blowout Proof, Low Torque Guided Stem Design
-Anti-Static Device and Live-Loaded Packing
-Size Range ¼” thru 10” (Class Dependent)
-Full Bore and Reduced Bore
-Body Wall Thickness ASME B16.34, Forged or Cast Versions
-End Connections: SW, BW, RF, RTJ, NPT, BSP, Special
-Fire-Safe Design API 607
-Blowout Proof, Low Torque Guided Stem Design
-Anti-Static Device and Live-Loaded Packing
Quantity
Vacuum conditions are used in industrial applications for pick and place systems, and research laboratories. In these processes, vacuum ball valves are often used to keep the 'negative' vacuum pressure in the chamber or pipe and as a channel for the vacuum generators or pumps. A vacuum rated ball valve should possess several characteristics for operation in a vacuum environment. The most important characteristics are the ability to have very good sealing properties in the shut-off position, quick response time, and the ability to operate at pressure differences between the sides of the valve. In some vacuum applications, the valve should operate at sub-zero conditions.
High vacuum ball valves offer straight-through, unimpeded flow with a minimal valve body footprint. Because of their unique design, ball valves are less sensitive than other vacuum valves to particulate contamination and, therefore, are especially useful in ‘dirty’ vacuum applications. For example, ball valves are almost always used to isolate scrubbers and traps downstream of the rough pumping system
Certifications & Compliance
S J Valves are designed and manufactured to internationally recognized standards including, but not limited to the following :
Design: AF1 6D, API 608
Fire Testng AFI 607.AP1 6FA, BS 67S$ Pam II
Testing API 59B, 150 5208,85 6755 Part l as 6364
Marking MSS-SF-25, FED. AFI 6D
Cortifications: API607,SIL NACE,MROT7S,PED,ISO 15848
Partial List of Applications
- Oil & Gas Fipelines
- Refineries and Petochemical Plants
- Powar Goneration
- Gas and Coal Fired Turbines
- Gas Measurement Systems
- Offshore Piatforms
- Cryogenic Serice Appications
- Emegency Shut Down Wales
- Pulp & Paper
- Mining
- Boiler Sxeam and Drain Applications
- Refineries and Petochemical Plants
- Powar Goneration
- Gas and Coal Fired Turbines
- Gas Measurement Systems
- Offshore Piatforms
- Cryogenic Serice Appications
- Emegency Shut Down Wales
- Pulp & Paper
- Mining
- Boiler Sxeam and Drain Applications
Fire-Safe & Fugitive Emissions Certified
Packing arrangement is Fire-Safe foe critical applications and FugitiweEmissicns150 15848 carthad.

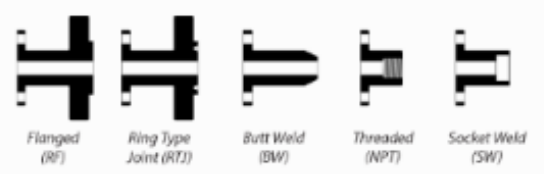

End Connections
Why SJ?
Precision Mlachined Forged BodyThe forged body tliminates
the possibility of leakage due to poor castings.Predision
finish machining keeps tight tolerances to ensure secureassambly
for high prassure, criical apphcat ons.
Ball/Seat LappingLapping saats to tho ball ensures tght tolorancas,
iimpraving shut.oftsealing capability while lowering torque requiremenes.
