Bellows Gate Valve Size 1/2"-36" Pressure 150#-2500# For flammable and explosive working conditions

gate valve

Bellows Gate Valve Size 1/2"-36" Pressure 150#-2500# For flammable and explosive working conditions

bellows gate valve
Size: 1/2"-36" (DN15 - DN900)
Class: 150#-2500#
CS / SS /Alloys / Monel / Hastalloys / Fabricated / Bronze MOC
Solid / Flexible Wedge / Parallel / Double Disc
Stem Protector, Linkage, Chain Pulley and Bypass arrangement on request
Specially: Bellow Sealed, Cryogenic and High Temp
Metal to Metal and Metal to soft Seat
Manual operated / Gear box / Electrical, Pneumatic operated
Quantity

Bellows Gate Valve Manufacturer

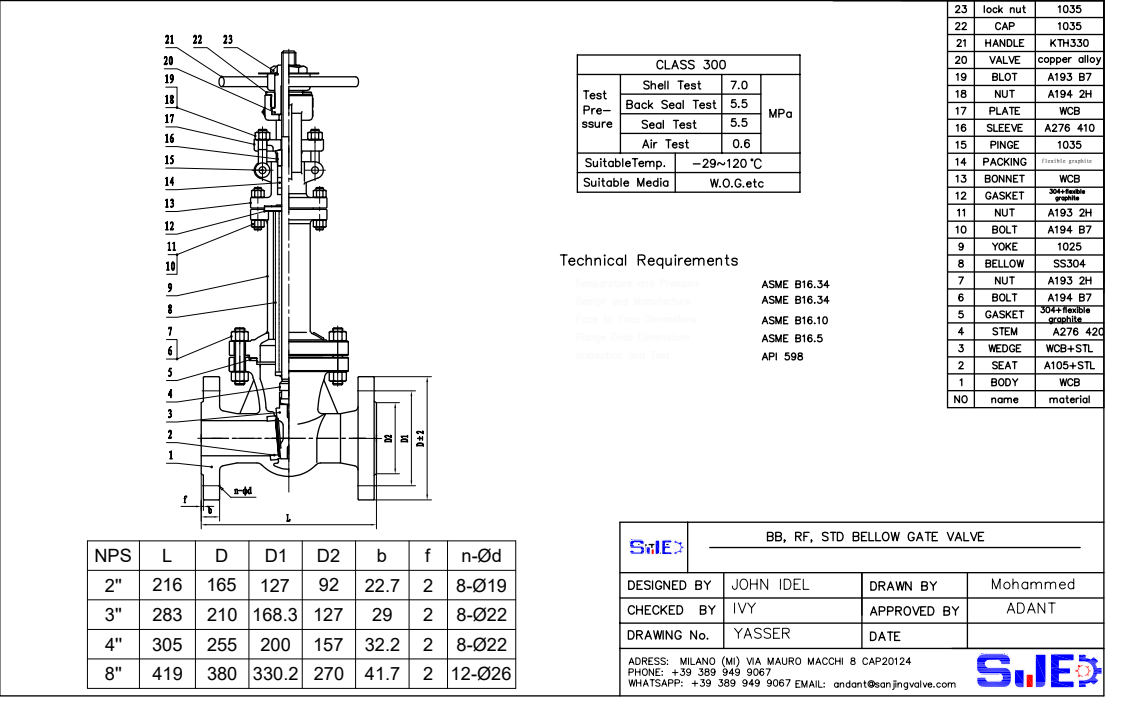

1.bellows valve seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.
2.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
3.Grease nipple. It can direct lubricate the stem, nut and sleeve.
4.Ergonomic hand wheel. It provide longer service life and easier operation.
