Pneumatic Control Valve Size: DN20 to DN200,ANSI Class 125, 150, 300, 600，1500

Pneumatic Single Seat Regulating Valve

Pneumatic Control Valve Size: DN20 to DN200,ANSI Class 125, 150, 300, 600，1500

Pneumatic Single Seat Regulating Valve
Size: DN20 to DN200
• ANSI Class 125, 150, 300, 600，1500
• JIS 10K, 16K, 20K, 30K, 40K
• PN1.6, 4.0, 6.4, 10.0 Mpa
Actuation Type: Spring Return, Double Acting
End Connection: Flanged, RF, MF, RTJ
S J Pneumatic Control Valve series Pneumatic Single Seat Regulating Valve main functions include regulating flow, controlling pressure and liquid level.
The design of the valve plug allows equal amount of flow control required for the required Kv factor. This type of control is recommended for systems
Quantity

Pneumatic Single Seat Regulating Valve

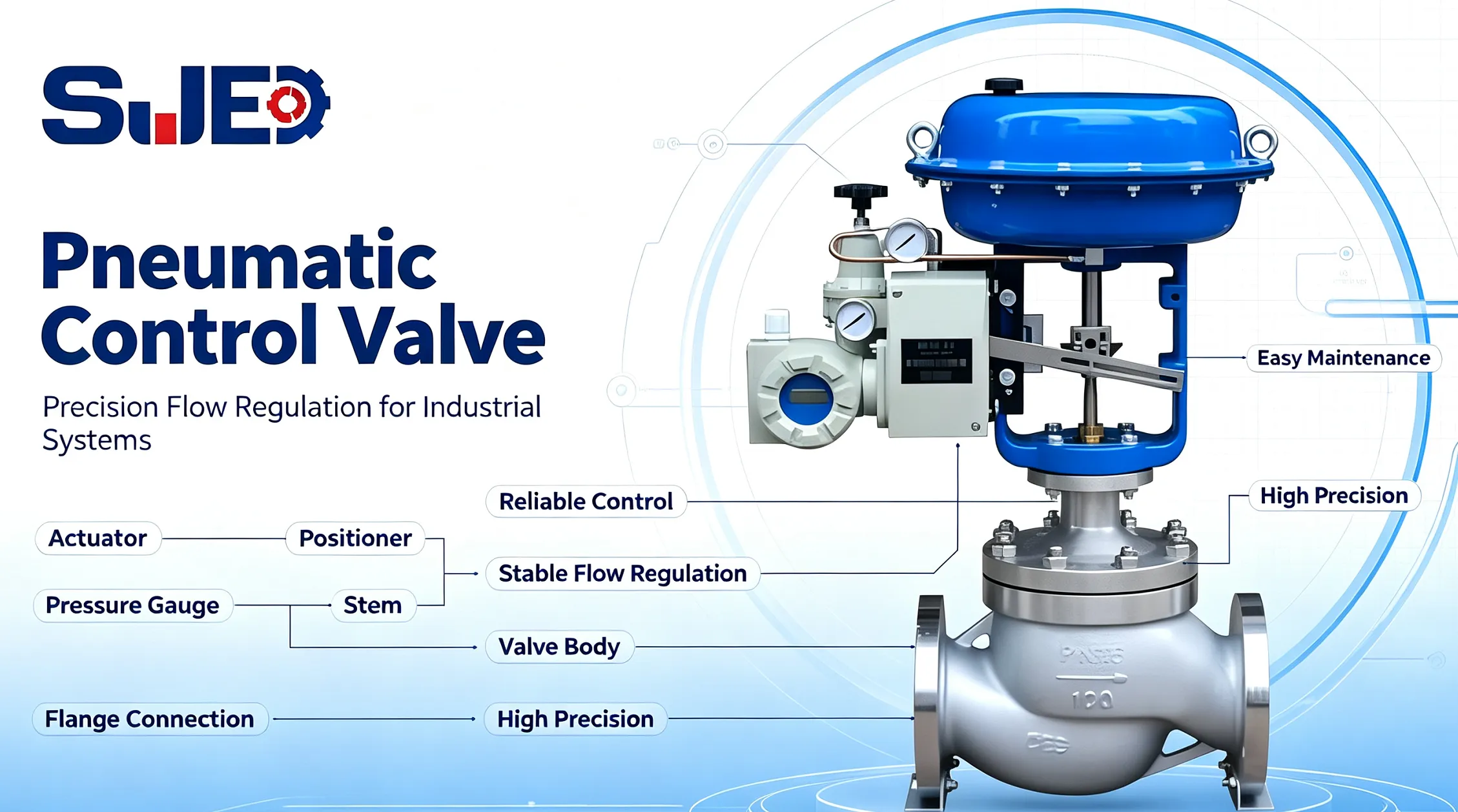

S J Pneumatic Control Valve series Pneumatic Single Seat Regulating main functions include regulating flow, controlling pressure and liquid level. The design of the pneumatic flow control valve plug allows equal amount of flow control required for the required Kv factor. This type of pneumatic manual control valveis recommended for systems with increased flow or pressure differential. Positioning can be controlled manually or using process parameters via positioning sensors.This SJ valve is a pneumatic control valve designed for accurate flow regulation in industrial piping systems. Combining a blue pneumatic actuator, positioner, pressure gauge, and robust valve body, it supports reliable pneumatic flow control and pneumatic manual control valve functions. It is suitable for process control, fluid regulation, and industrial automation applications.

1:Single seat

Body: WCB, WC6, SS304, SS316
Bonnet: WCB, WC6, SS304, SS316

2:Single, double or triple cage Trim

Cage: SS304, SS316
Guide Sleeve: SS304, SS316
Stem: SS304, SS316

3:Multi stage Trim

Balanced Piston: Steel, Aluminium
Balanced Piston Ring: Fluorine Ring, SS+Reinforced PTFE, Flexible Graphite Ring

4:type

1:standard type(-20℃~230℃)
2:Radiator type: (-45℃~ high than 230℃ occasion)
3:Low temperature extended type(-196℃~ -45℃)
4:Bellow seal type
5:Warm insulation Jacket type

TCHNICAL REFER (The specific size will be adjusted according to the inquiry requirements)

Seat diameter(mm)

10

12

15

20

25

32

40

50

65

80

100

125

150

200

Rated Cv

Percentage

1.6

2.5

4.0

6.3

10

16

25

40

63

100

160

250

400

630

Linear

1.8

2.8

4.4

6.9

11

17.6

27.5

44

69

110

176

275

440

690

Nom. size

Travel

Option flow characteristic Cv. (★standard  ●recommanded  ○customized)

DN20

16mm

●

●

●

★





















DN25

●

●

●

●

★



















DN32

25 mm

○

○

○

○

○

★

















DN40



○

○

○

○

●

★















DN50





○

○

○

●

●

★













DN65

40mm











○

○

○

★











DN80











○

○

○

●

★









DN100











○

○

○

●

●

★







DN125

60mm

















○

○

○

★





DN150



















○

○

●

★



DN200



















○

○

●

●

★

Pneumatic actuator
Diaphragm area, Ae(cm2)

SJA/B-22

SJA/B-23

SJA/B-34

SJA/B-45

350

350

560

900

Action

Spring range

Metal sealing allowable pressure difference (MPa)

Air open

20-100KPa

4.46

3.09

1.98

1.16

0.7

0.44

0.28

0.18

0.17

0.11

0.07

0.07

0.05

0.03

40-200 KPa

6.4

6.4

5.94

3.34

2.14

1.31

0.84

0.53

0.51

0.33

0.21

0.22

0.15

0.09

80-240 KPa

6.4

6.4

6.4

6.4

4.99

3.05

1.95

1.25

1.18

0.78

0.5

0.51

0.36

0.21

Air close

20-100KPa

6.4

6.19

3.96

2.23

2.14

0.87

0.56

0.35

0.34

0.22

0.14

0.15

0.1

0.06

40-200 KPa

6.4

6.4

6.4

6.4

6.4

5.86

3.64

2.3

2.21

1.43

0.91

0.95

0.66

0.37

80-240 KPa

6.4

6.4

6.4

6.4

6.4

6.4

5.04

3.18

3.06

1.98

1.26

1.32

0.92

0.52
