Slab Gate Valve
Size: 2"-24"
Class: 150#-2500#
CS / SS /Alloys / Monel / Hastalloys / Fabricated / Bronze MOC
Simple, reliable design
API 6D isolation function (DBB-DIB_1 - Block and bleed - Self-bleed)
Class: 150#-2500#
CS / SS /Alloys / Monel / Hastalloys / Fabricated / Bronze MOC
Simple, reliable design
API 6D isolation function (DBB-DIB_1 - Block and bleed - Self-bleed)
Quantity
Slab Gate Valve Manufacturer

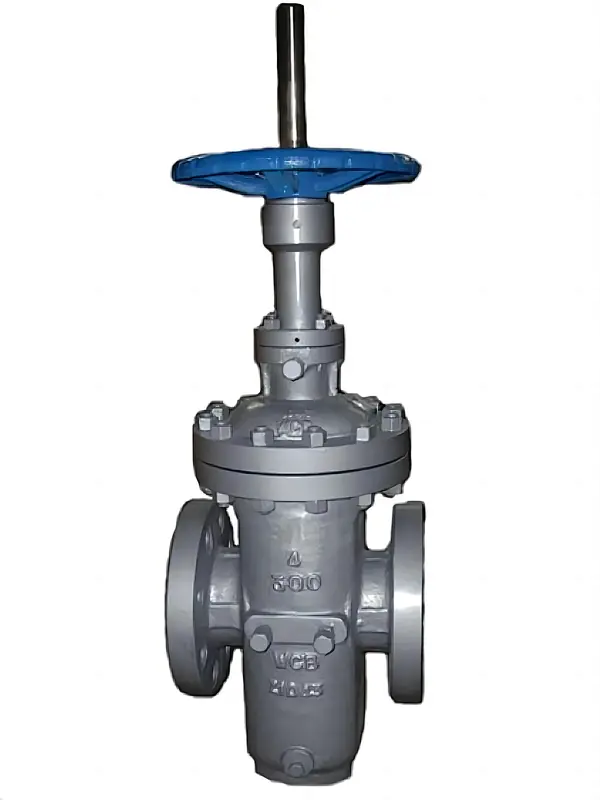

The SJ Slab Gate Valve is a full-bore gate valve with an OS&Y rising stem, floating seat and gate valve, pressure actuated, providing bubble-tight shutoff both upstream and downstream at both low and high pressure differentials. Dual block and bleed capability and automatic relief of excess body pressure are standard features of this seat design. The smooth, continuous bore minimizes turbulence inside the valve, and when in the open position it produces a pressure drop equivalent to a portion of a pipe of the same length and diameter. The seat surface is external to the flow and is therefore protected from the erosive effects of the flow. Pigs and scrapers can pass through the valve without damage.
Features of Slab Gate Valves
- Typical Advantages
- • Negligible pressure drop
- • Self-releasing
- • Double block and bleed performance
- • Balanced bore (as required/operation)
- • Possibility of reverse performance and
- Balanced bore in case of fail-close operation
- • Piston type double seal upstream and floating seal downstream
- • Excellent sealing performance (bubble seal)
- • Suitable for all types of fluids (including abrasive fluids)
- • Suitable for ESDV/BDV applications and pig traps
- • Very flexible actuation, with or without stem ejection assistance
- • Robust construction
- • Full in-line maintainability
- • Fire safe construction

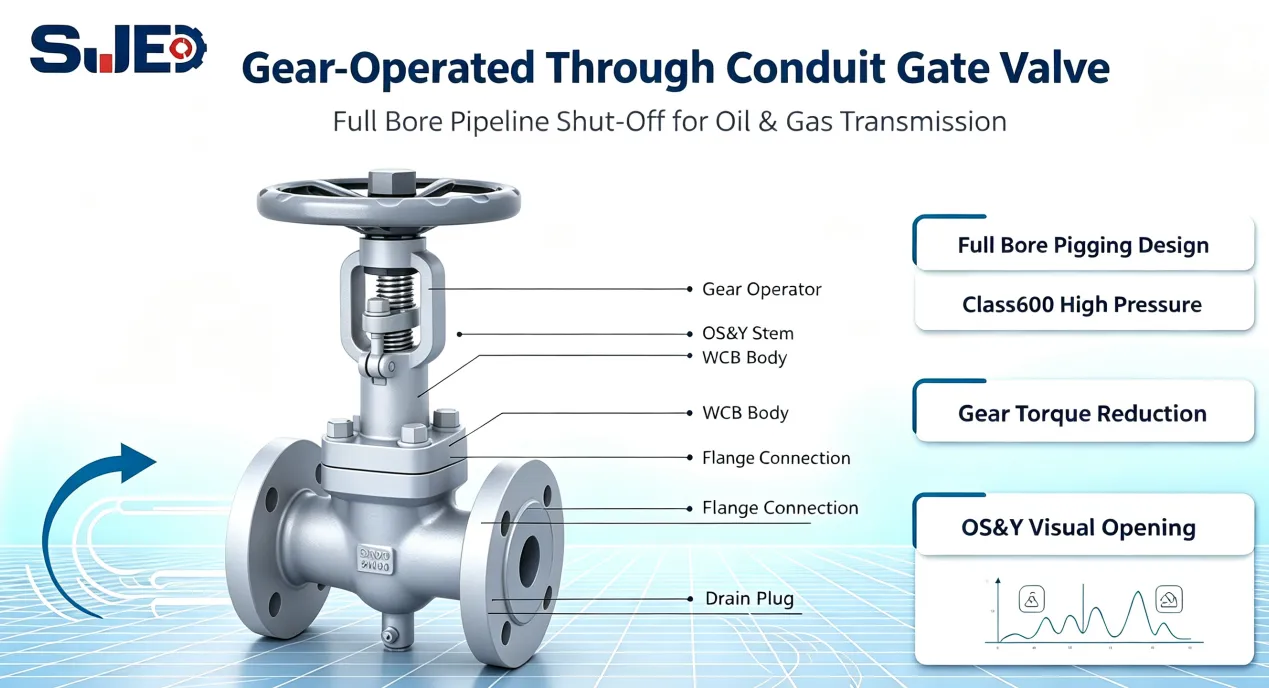

SJ gear‑operated through conduit gate valve adopts full‑bore through conduit design, enabling unobstructed pigging for pipeline inspection. WCB carbon steel body with Class600 high‑pressure rating, flanged end connection for heavy‑duty pipeline installation. Gear‑wheel operator delivers effortless torque‑reduced operation for large‑size high‑pressure service. OS&Y outside screw & yoke structure provides visual stem position to indicate valve opening status. Equipped with bottom drain plug for cavity venting and draining. Widely applied in long‑distance oil & gas transmission pipelines, refineries and petrochemical plants, this valve provides reliable tight‑shut‑off performance for critical process pipelines.
