DN 50 to DN 1200 Class 150LB–1500LB Knife Gate Valve Maximum temperature: 200°F High temperature 300°F option available
DN 50 to DN 1200 Class 150LB–1500LB Knife Gate Valve Maximum temperature: 200°F High temperature 300°F option available

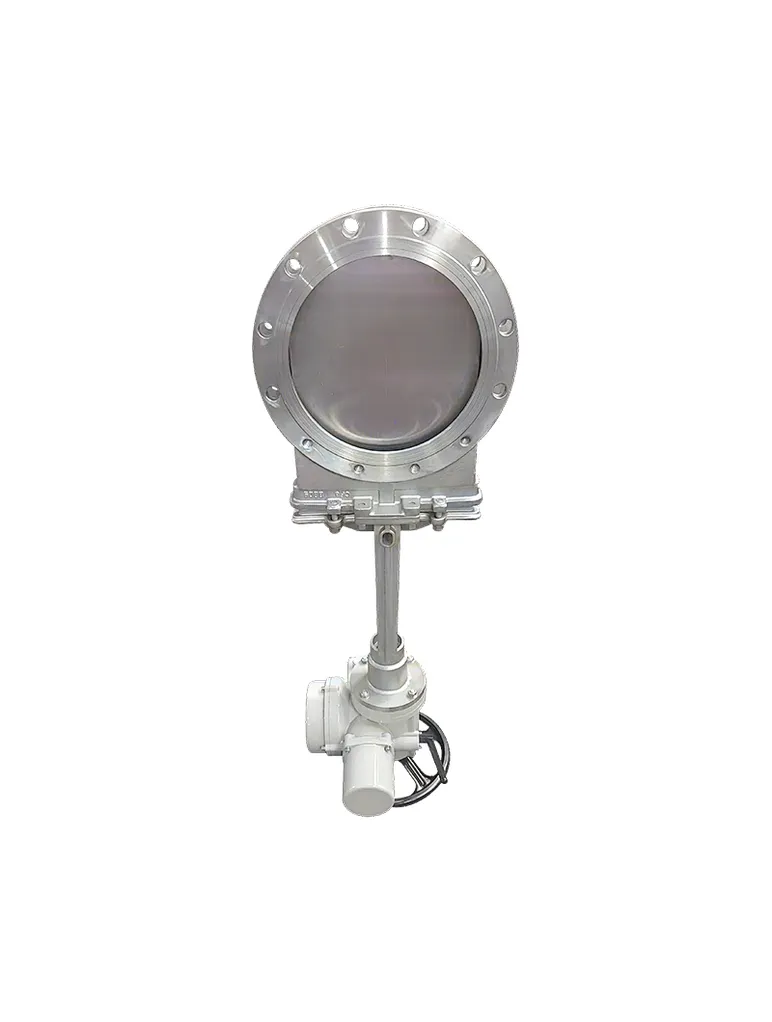

Knife Gate Valve
Available materials: CF8M, SS2507, SS316, SS304, CF8, Ductile Iron, WCB, WC6, WCC, LCB, LCC, Cast iron,
Class:150LB–1500LB From DN 50 to DN 1200
Operation : handwheel ,Gear operated, electric actuated ,pneumatic actuated
Maximum temperature: 200°F
High temperature 300°F option available
Class:150LB–1500LB From DN 50 to DN 1200
Operation : handwheel ,Gear operated, electric actuated ,pneumatic actuated
Maximum temperature: 200°F
High temperature 300°F option available
Quantity
Knife Gate Valve Manufacturer
SJ COMPANTY AS the knife gate valve suppliers IN Generally valve body adopts investment casting technology. Advanced technology to ensure that the valve body has no sand holes, surface more smooth and quality more reliable.
S J gate valve knife go through the painstaking design and rigorous quality testing to achieve next-level performance.
SJ's Knife Gate Valves & Slurry Valves provide dependable on-off isolation in demanding applications across industries such as mining, pulp and paper, general industrial, energy, wastewater management, and oil and gas
GATE
Stainless steel gate as standard. Gate is polished on both sides to avoid jamming and seat damage. Bottom of the gate edge is machined to a bevel to cut through solids for a tighter seal in the closed position. On request : thickness and/or material of the gate can be changed for higher pressure requirement.
STEM
The standard stainless steel stem offers a long corrosion resistant life. An automatic lubrificator is located on the bridge. For rising stem handwheel actuators only, a stem protector is provided for additionnal protection against dust while the valve is in the open position.
PACKING
Long-life packing with several layers of braided fibre plus an EPDM o-ring, with an easy accessible packing gland ensuring a tight seal. Long-life braided is available in a wide range of materials.
EPOXY COATING
The epoxy coating on all TUNING cast iron and carbon steel valve bodies and components is electrostatically applied making the valves to be corrosion resistant with a high quality finished surface
BODY
Wafer style cast monobloc with raised face, with reinforced ribs in larger diameters for extra body strength. Internal cast-in gate wedges and guides allow for tighter shut-off. Full port design for greater flow capacity and minimal pressure drop. Internal design avoids any build up of solids that would prevent valve from closing
GATE SAFETY PROTECTION
TUNING automated valves are provided with gate guards in accordance with EU Safety Standards. The design feature any objects form being caught accidentally while the gate is moving.
