A Comprehensive Analysis of High-Performance Trunnion-Mounted Ball Valve Technology
In demanding industrial sectors such as oil, gas, and chemicals, valve performance directly impacts the safety and efficiency of the entire system. These high-performance three-section forged steel fixed ball valves are specifically designed to handle these stringent operating conditions.
Q1. Why is a trunnion-mounted ball valve the preferred choice for large-diameter, high-pressure applications?

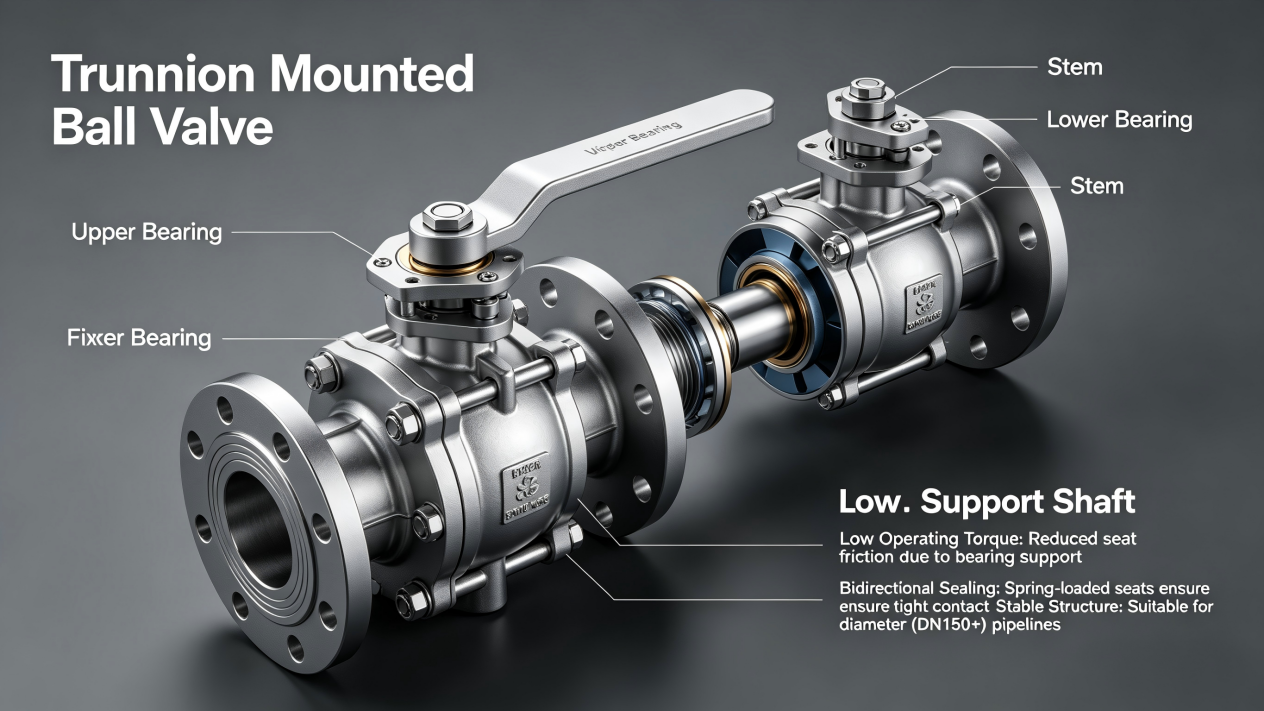

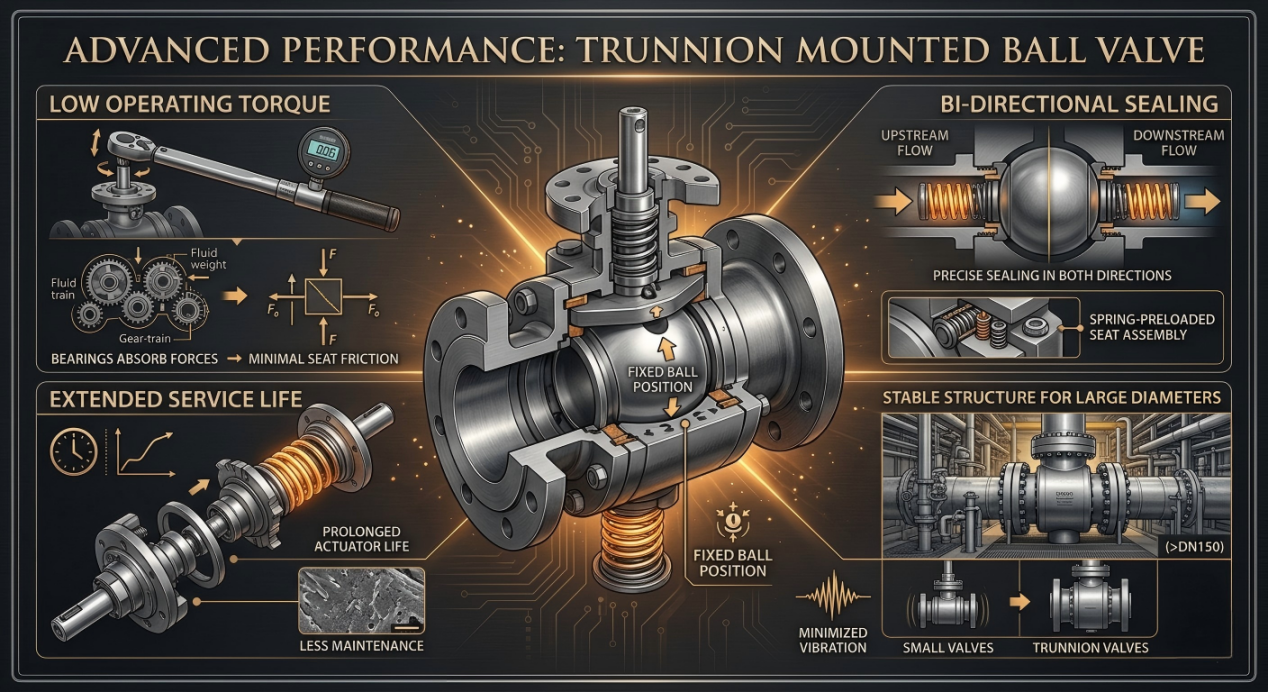

Unlike traditional floating ball valves, trunnion-mounted ball valves completely fix the ball's position using upper and lower bearings (stem and support shaft). The core advantages of this design are:
- Extremely low operating torque: Because the ball's weight and fluid pressure are borne by the bearings, seat friction is reduced. Even under high pressure differentials, opening and closing remain smooth and effortless, effectively extending the actuator's service life.
- Two-way sealing performance: Utilizing a spring-preloaded seat, the seat remains firmly against the ball under pressure, regardless of the medium's direction of origin, achieving a precise seal.
- More stable structure: Particularly suitable for large-diameter (DN150 and above) pipelines, effectively preventing valve vibration caused by fluid impact.
Unlike traditional floating ball valves, trunnion-mounted ball valves completely fix the ball's position using upper and lower bearings (stem and support shaft). The core advantages of this design are:
- Extremely low operating torque: Because the ball's weight and fluid pressure are borne by the bearings, seat friction is reduced. Even under high pressure differentials, opening and closing remain smooth and effortless, effectively extending the actuator's service life.
- Two-way sealing performance: Utilizing a spring-preloaded seat, the seat remains firmly against the ball under pressure, regardless of the medium's direction of origin, achieving a precise seal.
- More stable structure: Particularly suitable for large-diameter (DN150 and above) pipelines, effectively preventing valve vibration caused by fluid impact.
SJ Valve's trunnion-mounted ball valves undergo rigorous low-torque opening and closing tests before leaving the factory, ensuring a smooth operating feel even under high pressure, reducing your actuator procurement and maintenance costs.
Q2 What conveniences does the three-piece forged steel valve body structure bring to later maintenance?
This type of valve adopts a classic three-piece structure, consisting of a main valve body and two side ends (flange sections) connected by high-strength bolts.
-Easy online maintenance: Without disassembling the entire pipeline, internal valve components (such as the ball, seat, and seals) can be quickly inspected or replaced by removing the bolts, significantly reducing downtime.
-Material reliability: Compared to castings, forged steel (such as A105, F316L, etc.) eliminates defects such as internal porosity, has higher mechanical strength, and can withstand greater temperature fluctuations and pressure shocks.
-Flexible customization: The three-piece structure allows for easy replacement of different flange standards or connection methods according to customer needs.
Each SJ Valve uses high-quality forged blanks, ensuring that the valve body maintains excellent tensile strength under extreme operating conditions. We adhere to the design philosophy of "easy maintenance," making your equipment's operation more efficient and convenient throughout its entire lifecycle.
