Representative Global Manufacturers of High-Pressure Ball Valves
-Cameron (A Schlumberger / SLB Company): The undisputed global leader in ball valves for long-distance oil and gas pipelines. Renowned worldwide for its exceptionally rugged construction and ultra-long service life in highly severe and deep-water environments, Cameron remains the premier benchmark for multinational oil giants.
-Flowserve: A global fluid control titan whose high-pressure flanged ball valves are widely deployed in challenging applications like petrochemical hydrocracking and toxic or hazardous medium isolation. Flowserve is highly regarded for its top-tier automated actuator integration and commands a massive global market share.
-Neway Valve: The largest industrial valve manufacturer in China. Its high-pressure ball valves have successfully secured spots on the approved vendor lists of global oil majors like Shell and Saudi Aramco, establishing a powerful brand influence in mainstream international markets.
-SJ Valve: A premium, rapidly rising brand in the international strategic energy market, focusing on the precision manufacturing and comprehensive non-destructive testing of high-pressure flanged ball valves. Its products have been rigorously field-proven under continuous high-load operations across major overseas projects in the Middle East and Central Asia, serving as a prime example of high standards and superior automation compatibility.
As a flagship product in fluid control, the high-pressure flanged ball valve has become an indispensable core component in the oil, gas, and chemical industries thanks to its exquisite forging craftsmanship and forward-looking automation interface design. This article uses a detailed Q and A format to guide you through the core technical advantages of this high-performance valve.
Q1: What unique product features does this high-pressure flanged ball valve possess in terms of appearance and structural design?
A: From the perspective of external aesthetics and industrial engineering, this valve exhibits four core attributes:

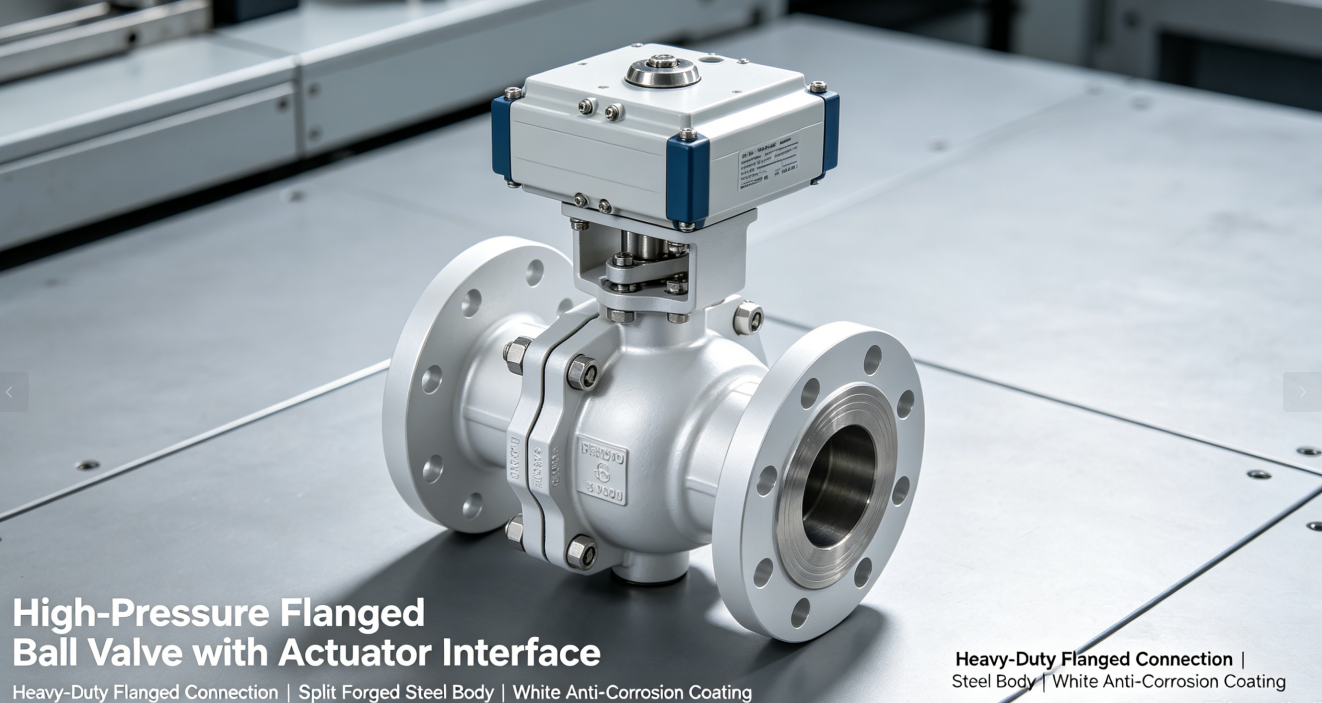

-High-Platform Intelligent Interface Design: The top of the valve is engineered with a standardized ISO-type mounting bracket (high-platform bracket) and a bare shaft complete with a precise positioning plate. This design breaks free from the limitations of traditional manual levers, allowing direct, seamless installation of pneumatic actuators, electric actuators, or gear operators (worm gearboxes) to perfectly match the digital and automated remote-control needs of modern smart factories.
-Heavy-Duty High-Pressure Flanged Connection: Both ends feature exceptionally thick, wide, heavy-duty flanges with precision-machined bolt holes. This robust construction ensures excellent tensile and torsional shear resistance at the pipe joint, maintaining zero leakage even under the impact of ultra-high-pressure fluids, serving as the primary line of defense for pipeline safety.
-Split-Body High-Strength Forged Steel Body: The mid-body features a cylindrical, robust spherical shape utilizing a mature two-piece or three-piece split-body design. Compared to cast valve bodies, forged steel delivers a much denser material structure free of latent defects like porosity or sand holes, resulting in a qualitative leap in pressure-bearing capability.
-Premium Anti-Corrosion Finish: The exterior is coated with a high-quality white anti-corrosion topcoat. This not only provides a sleek, high-end industrial aesthetic but also offers superior resistance to outdoor UV exposure, salt spray, and chemical atmospheric corrosion, significantly extending the valve’s cosmetic and operational service life.

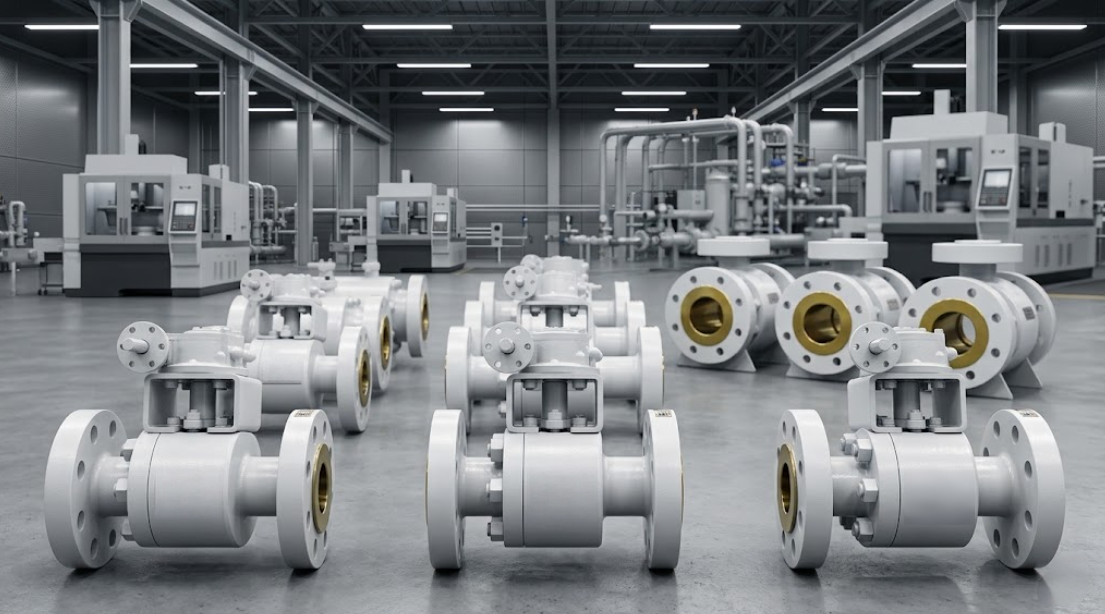

SJ Valve Commentary: As a master of high-end industrial valve manufacturing, SJ Valve is dedicated to infusing ultimate craftsmanship into every detail. We control quality right from the raw material source to guarantee dense forged steel grain structures. Utilizing fully automated CNC machine tools, we precisely machine the flanges and high-platform interfaces, ensuring that every automation upgrade fits with flawless accuracy.
Q2: As a critical control element in a pipeline, what is the working principle of this high-pressure flanged ball valve?

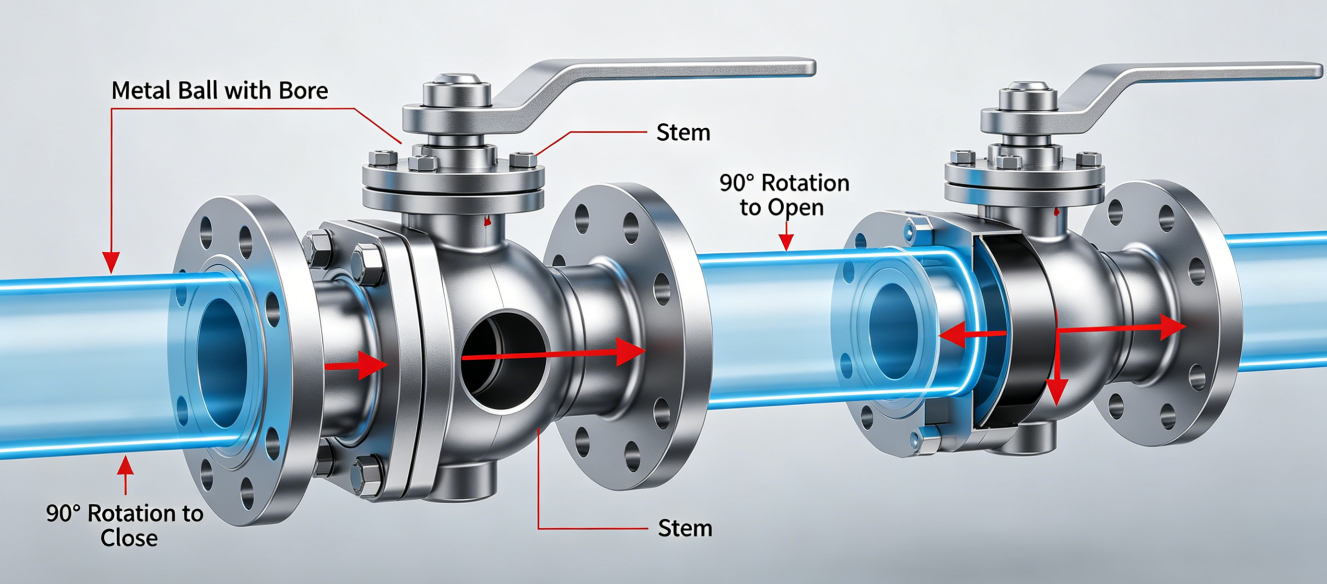

A: This valve operates on the highly efficient Quarter-Turn (90 degree rotation) fluid control principle. Its core operational mechanisms are detailed below:
-The Quarter-Turn Mechanism: At the heart of the valve is a precision-polished metal ball with a straight-through bore. When an external actuator (pneumatic or electric) drives the stem, the stem rotates the ball smoothly from 0 degree to 90 degree.
-Fully Open State: When the ball's bore aligns perfectly parallel to the pipeline axis, the valve is fully open. The medium flows straight through with a minimal flow resistance coefficient, essentially near zero, effectively preventing pipeline pressure drop and optimizing transport efficiency.
-Fully Closed State: When the actuator drives the stem back 90 degree, turning the bore perpendicular to the pipeline axis, the valve closes fully. At this stage, the internal spring-loaded floating seats (or trunnion-mounted seats) are pushed firmly against the ball surface by the upstream fluid pressure. This creates an unyielding metal-to-metal or advanced composite (such as PEEK) sealing pair, completely isolating the medium flow.
SJ Valve Commentary: In putting these operational principles into practice, SJ Valve’s engineering team subjects the ball surfaces to supersonic flame spraying (HVOF) and mirror-grade lapping. We not only ensure lower torque and smoother operation during cycles but also incorporate a unique seat self-cleaning structure that significantly reduces the risk of valve jamming caused by medium scaling or debris buildup.
Q3: In high-stakes operating conditions where safety requirements are paramount, what key safety functions and roles does the valve perform?
A: In high-pressure pipelines, valve safety is the lifeline of the enterprise. This valve integrates three industry-recognized safety functions:

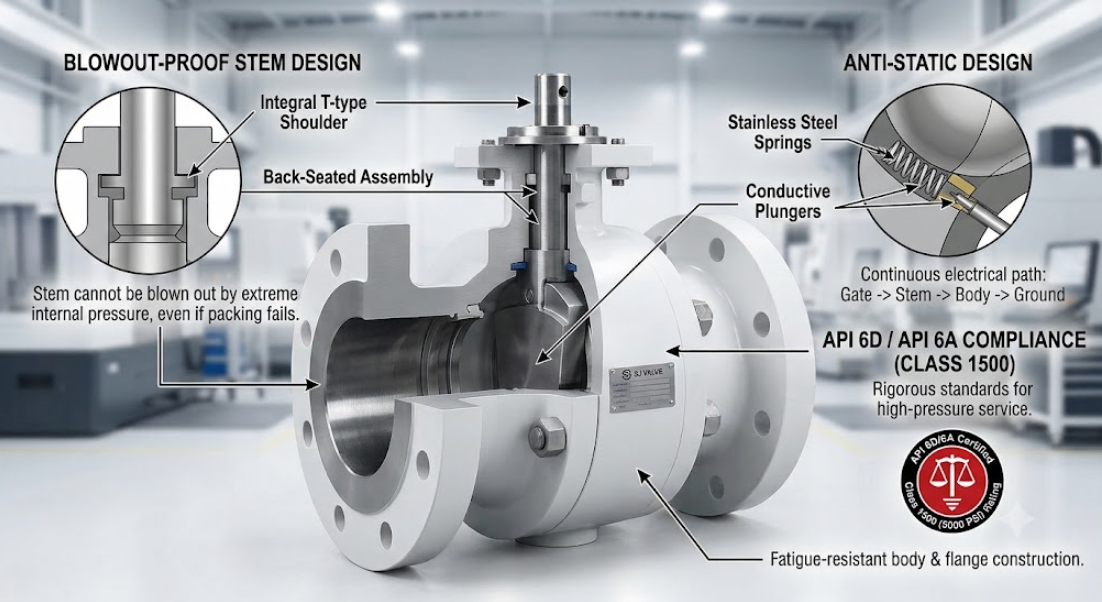

-Blowout-Proof Stem Design: The stem is engineered with an integral T-type shoulder and is back-seated, meaning it is assembled from the inside of the valve body. Even if the internal cavity pressure spikes to extreme limits or the packing gland is compromised, the internal pressure will only push the stem tighter against the backseat. This completely prevents the catastrophic risk of the stem being blown out by high-pressure fluid, safeguarding field personnel.
-Anti-Static Design: Frequent opening and closing of a ball valve can cause static electricity to accumulate due to friction between the ball and non-metallic seats. This valve features built-in anti-static grounding devices (such as stainless steel springs and plungers) that maintain continuous electrical conductivity among the ball, stem, and body, safely discharging static electricity to the ground and eliminating the spark risks that could ignite flammable or explosive media.
-Strict Adherence to API 6D / API 6A International Standards: This valve is purpose-built for long-distance transmission pipelines and oil/gas drilling environments. Judging by its heavy flange thickness and high-grade body design, it can effortlessly withstand pressures up to Class 1500 (or up to 5000 PSI). Its entire design and manufacturing process comply fully with API standards, providing exceptional mechanical reliability and fatigue life.
SJ Valve Commentary: Safety is the absolute baseline of the SJ Valve promise. Every single one of our high-pressure flanged ball valves is manufactured in strict compliance with API, ASME, and ISO standards. Before leaving the factory, each unit undergoes rigorous Positive Material Identification (PMI) chemical analysis and PT/UT non-destructive testing, followed by hydrostatic and pneumatic pressure tests that exceed standard requirements to guarantee a bulletproof safety barrier.
Q4: In which core application scenarios and industries is this high-pressure valve primarily deployed?
A: Leveraging its impeccable pressure-bearing capacity and out-of-the-box automation compatibility, this product serves as a dependable asset across four major, unforgiving industrial landscapes:

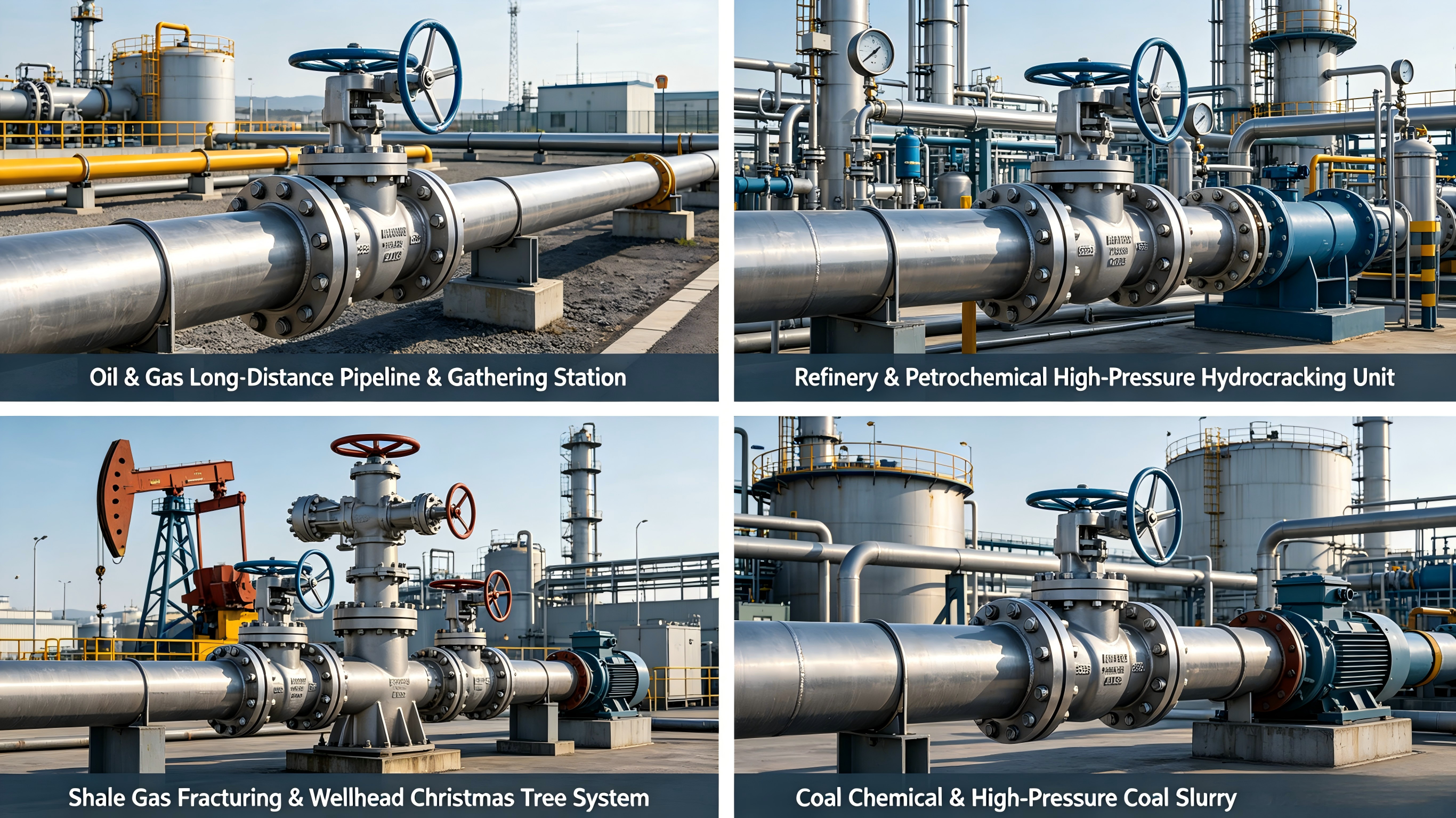

-Oil and Gas Long-Distance Transmission Pipelines and Gathering Stations: Deployed along pipelines stretching thousands of kilometers to serve as Emergency Shutdown Valves (ESD) and station bypass control. When paired with high-speed pneumatic actuators, it achieves millisecond-level rapid isolation.
-Refinery and Petrochemical High-Pressure Hydrocracking Units: In refining and reforming units involving high-temperature, high-pressure hydrogen and hydrocarbon mixtures, this valve acts as a core barrier, tightly locking in flammable, explosive, highly penetrative, or hazardous media.
-Shale Gas Fracturing and Wellhead Christmas Tree Systems: During hydraulic fracturing and early-stage wellhead production, the valve exhibits outstanding resistance to erosion and abrasive wear when dealing with high-pressure, sandy, and corrosive crude oil or flowback fluids.
-Coal Chemical and High-Pressure Slurry Transport: In challenging processes like Coal-to-Liquids (CTL) and coal gasification where tiny solid particles are suspended in high-pressure fluid, this same style of ball valve, when equipped with hard-facing alloys (such as Stellite laser cladding), represents the ultimate choice for handling concurrent high wear and high pressure.
SJ Valve Commentary: Across the highly competitive global industrial landscape, SJ Valve’s product footprint spans multiple strategic energy hubs across the Middle East and Central Asia. Whether operating under the unpredictable, extreme pressures of Middle Eastern oilfields or running continuously in heavy-duty overseas refineries, SJ Valve continues to win the trust of global clients through its unwavering stability.
Conclusion
High-pressure operations leave absolutely no room for error. This high-pressure flanged ball valve, featuring an integrated high-platform actuator interface, erects a formidable defense line for industrial piping through its thick forged body and uncompromising blowout-proof and anti-static designs. Simultaneously, its advanced automation-ready architecture paves the way for seamless integration into modern, intelligent fluid networks of the Industry 4.0 era. Choosing SJ Valve means choosing to keep your pipeline systems operating smoothly, predictably, and with rock-solid stability under the immense weight of industrial pressure!
