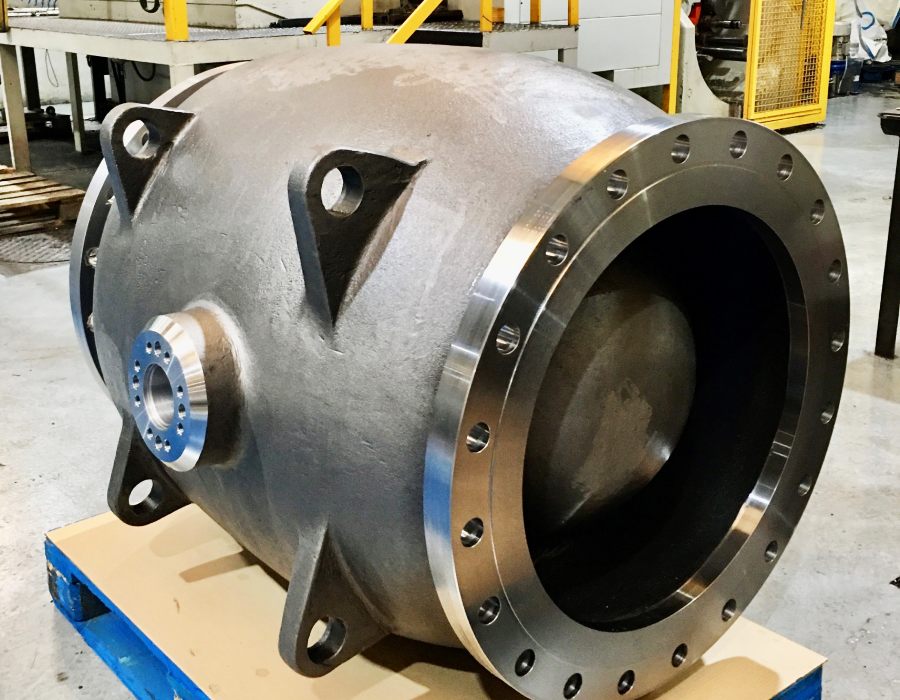

What is a Check Valve?
Valves used to prevent backflow in piping systems are called check valves. It is also known as the non-return valve or NRV.
Check valve is installed in the pipeline and only allows one-way flow; Help protect equipment and processes. They operate entirely by reaction with the line fluid and therefore do not require any external drive.
Types of Check Valve
-
Lift Check Valve
-
Ball Check Valve
-
Swing Check Valve
-
Top-hinged Check Valve
-
Tilting Disc Check Valve
-
Butterfly Check Valve
-
Stop Check Valve
-
Diaphragm Check Valve
-
Spring Loaded Check Valve
-
Spring Loaded in-line valve
-
Spring Loaded Y-valve
-
Foot Check Valve
-
Duckbill Check Valve
-
Wafer Check Valve
-
Silent Check Valve
-
Pneumatic Check Valve
-
Non-slam Check Valve
