Flexible Wedge Valve vs Solid Wedge Gate Valve
2024-10-24
Flexible Wedge Valve vs Solid Wedge Gate Valve
Flexible Wedge Valve vs Solid Wedge Gate Valve

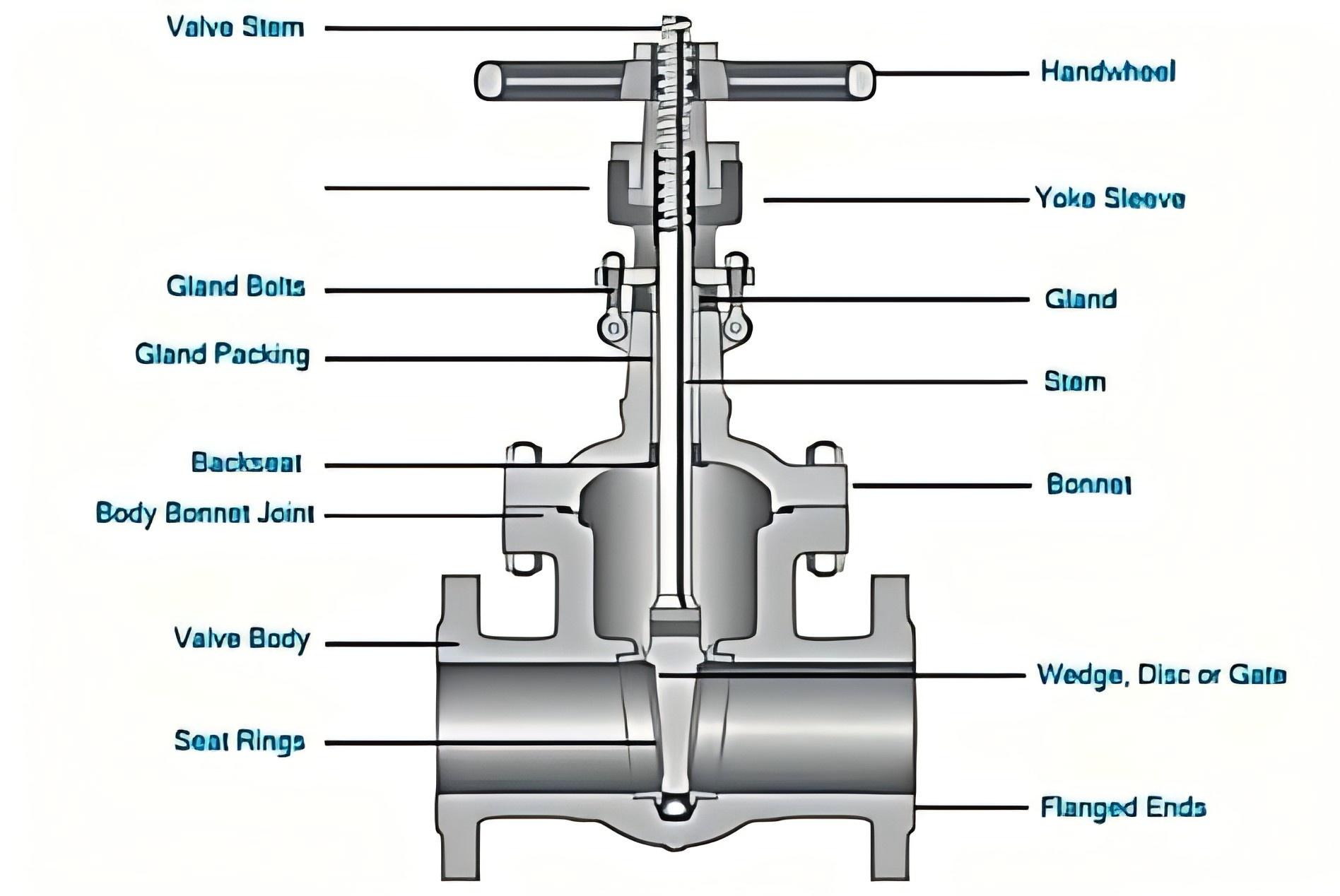

A solid wedge is an integral piece that is machined to fit into the seat for a good seal, while in a flexible wedge design, the wedge has an annular groove that allows the wedge to bend inside the seat. Flexible wedge valves and solid wedge gate valves are commonly used in various industrial applications for controlling the flow of fluids. Both valves have their own unique features and benefits, which make them suitable for different purposes. Here is a comparison between the two:
Flexible Wedge Gate Valve:
The flexible wedge gate valve is designed with a hinge in the center of the closure plate, allowing it to move freely up and down. This type of valve is typically used in high pressure applications where it is necessary to be able to handle extreme pressure fluctuations without failure. It is also commonly used in areas where the flow rate needs to be regulated regularly, as its adjustable design allows it to be easily adjusted according to the application.
Flexible wedge valves are recommended for applications where there are significant changes in temperature or pressure, or where there is a risk of thermal expansion.These valves are also ideal for applications where corrosion or erosion is a concern, as the segments can be made of materials that are resistant to these problems.
Flexible wedge valves are recommended for applications where there are significant changes in temperature or pressure, or where there is a risk of thermal expansion.These valves are also ideal for applications where corrosion or erosion is a concern, as the segments can be made of materials that are resistant to these problems.
Advantages
The advantage of a flexible wedge gate valve is that it can adapt to changes in temperature and pressure without losing its sealing ability. This is because the flexible wedge design allows the valve to move slightly and adjust to any changes in the pipeline's temperature or pressure. This prevents leaks and damages to the valve and pipeline and ensures that the valve can function effectively for a longer period of time. Additionally, the flexible wedge gate valve is easier to operate and requires less force to close and open compared to other types of gate valves.
Solid Wedge Gate Valve:
Solid wedge gate valves are designed with single-piece closure plates, which means they cannot be adjusted once installed. This type of valve is best suited for applications where pressure fluctuations are small and the flow rate does not need to be adjusted regularly. One advantage of using a solid wedge valve is that it requires less maintenance than a flexible wedge valve because there are no moving parts that may wear out over time. In addition, because there are no moving parts, this type of valve can also provide better sealing capability than flexible valves.
Advantages
The main advantage of solid wedge valves over other types of valve designs is that they are very durable. They feature an all-metal construction with internal hard seat plates for excellent flow control, ensuring excellent performance even in the most extreme conditions. In addition, the metal construction makes these valves last longer than other valves as they are less susceptible to corrosion caused by pressure or temperature changes.
Another benefit is that these valves are very low-maintenance, which means that once you install them, you don't have to worry about frequent repairs or replacements. This makes them highly cost-effective and reliable over time. Finally, unlike some other valve designs, solid wedge valves can be used for both high and low pressure applications without compromising performance levels.
