How Does The Globe Valve Become The Golden Benchmark of Fluid Control
In modern industrial fluid conveying systems, every minor pressure fluctuation or medium leakage can potentially affect the safety and efficiency of the entire production line. As one of the most widely used valves in pipeline systems, the globe valve has always held a prominent position in the field of fluid control, thanks to its excellent shut-off performance and regulating capabilities.
Whether in high-temperature and high-pressure power systems or in precise petrochemical pipelines, globe valves play an indispensable role as precise regulators. This article will delve into the core charm of this industrial tool.
Whether in high-temperature and high-pressure power systems or in precise petrochemical pipelines, globe valves play an indispensable role as precise regulators. This article will delve into the core charm of this industrial tool.
Q1: What is the core function of a globe valve? What are its main applications?

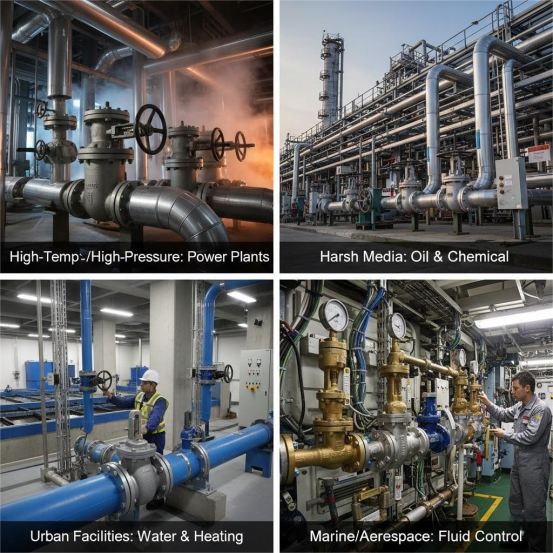

A: The main function of a globe valve is to completely cut off or connect the flow of medium in the pipeline. Unlike a ball valve, it also has certain expertise in regulating flow. Its application scenarios are extremely wide:
-High temperature and high pressure environment: such as the steam system in thermal power plants and nuclear power plants.
-Severe medium transmission: pipelines in petroleum, chemical, natural gas, and other industries that require extremely high sealing performance.
-Urban supporting facilities: Water supply network, boiler room, and heating system.
-Shipbuilding and aerospace: used for precise fluid control in compact spaces.
SJ VALVE has developed a series of globe valves that cover all operating conditions, addressing pain points in various industries. Whether dealing with chemically corrosive media or ultra-high pressure power systems, SJ VALVE ensures stable performance in various harsh scenarios through customized material selection and sealing solutions, helping customers reduce operation and maintenance costs.
A: The main function of a globe valve is to completely cut off or connect the flow of medium in the pipeline. Unlike a ball valve, it also has certain expertise in regulating flow. Its application scenarios are extremely wide:
-High temperature and high pressure environment: such as the steam system in thermal power plants and nuclear power plants.
-Severe medium transmission: pipelines in petroleum, chemical, natural gas, and other industries that require extremely high sealing performance.
-Urban supporting facilities: Water supply network, boiler room, and heating system.
-Shipbuilding and aerospace: used for precise fluid control in compact spaces.
SJ VALVE has developed a series of globe valves that cover all operating conditions, addressing pain points in various industries. Whether dealing with chemically corrosive media or ultra-high pressure power systems, SJ VALVE ensures stable performance in various harsh scenarios through customized material selection and sealing solutions, helping customers reduce operation and maintenance costs.
Q2: What is the mystery behind the internal structural design of a globe valve?

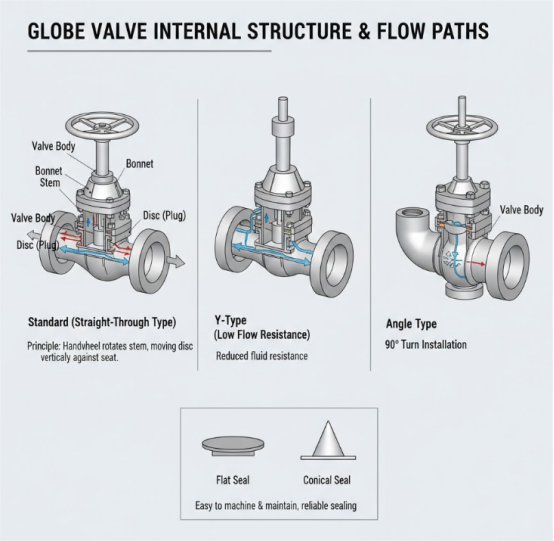

A: The structure of a globe valve follows the "forced sealing" principle. It is mainly composed of a valve body, a valve disc (valve core), a valve stem, and a valve cover.
- Operating principle: Rotating the handwheel drives the valve stem, causing the valve disc to move vertically along the centerline of the valve seat.
-Flow channel design: Common types include straight-through (standard type), direct-flow (Y-type), and angle type. The straight-through type is the most common, while the direct-flow type effectively reduces fluid resistance, and the angle type is suitable for installation at 90-degree corners.
- Sealing surface: Typically, flat or conical surfaces are used for sealing, which are highly accessible for machining and maintenance, ensuring sealing reliability over long-term operation.
In terms of structural design, SJ VALVE utilizes a unique flow channel optimization technology, significantly reducing the fluid resistance commonly found in traditional globe valves. Our valve stems undergo precision grinding and hardening treatment, coupled with a self-lubricating packing system, making SJ VALVE's products feel lighter to operate and greatly extending their mechanical service life.
A: The structure of a globe valve follows the "forced sealing" principle. It is mainly composed of a valve body, a valve disc (valve core), a valve stem, and a valve cover.
- Operating principle: Rotating the handwheel drives the valve stem, causing the valve disc to move vertically along the centerline of the valve seat.
-Flow channel design: Common types include straight-through (standard type), direct-flow (Y-type), and angle type. The straight-through type is the most common, while the direct-flow type effectively reduces fluid resistance, and the angle type is suitable for installation at 90-degree corners.
- Sealing surface: Typically, flat or conical surfaces are used for sealing, which are highly accessible for machining and maintenance, ensuring sealing reliability over long-term operation.
In terms of structural design, SJ VALVE utilizes a unique flow channel optimization technology, significantly reducing the fluid resistance commonly found in traditional globe valves. Our valve stems undergo precision grinding and hardening treatment, coupled with a self-lubricating packing system, making SJ VALVE's products feel lighter to operate and greatly extending their mechanical service life.
Q3: Compared with other valves, what are the core advantages of globe valves?

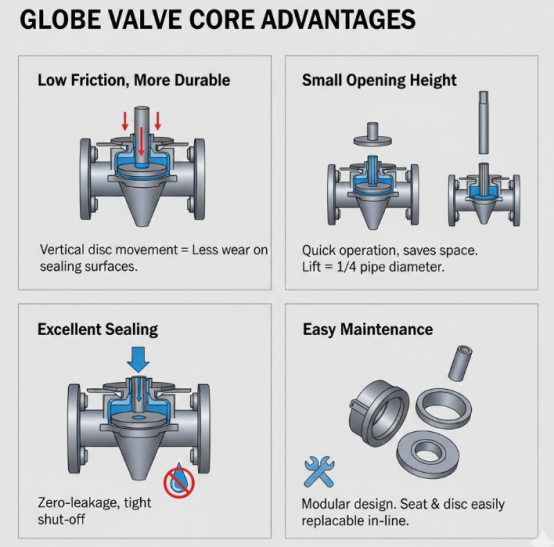

A: The reason why globe valves have been thriving in the industrial sector is primarily due to the following four major advantages:
-Low friction and greater durability: During the opening and closing process, the friction between the valve disc and the sealing surface of the valve seat is lower than that of gate valves, resulting in a longer service life.
-Low opening height: The travel distance (opening height) of a globe valve is typically only 1/4 of the diameter of the passage, making it quick to open and close and space-saving.
-Excellent sealing performance: The mandatory closing force ensures zero leakage, making it the preferred choice for flammable and explosive media.
- Easy to maintain: The valve seat and disc are mostly of easily removable structures, allowing for seal replacement without the need to completely remove them from the pipeline.
A: The reason why globe valves have been thriving in the industrial sector is primarily due to the following four major advantages:
-Low friction and greater durability: During the opening and closing process, the friction between the valve disc and the sealing surface of the valve seat is lower than that of gate valves, resulting in a longer service life.
-Low opening height: The travel distance (opening height) of a globe valve is typically only 1/4 of the diameter of the passage, making it quick to open and close and space-saving.
-Excellent sealing performance: The mandatory closing force ensures zero leakage, making it the preferred choice for flammable and explosive media.
- Easy to maintain: The valve seat and disc are mostly of easily removable structures, allowing for seal replacement without the need to completely remove them from the pipeline.
Excellent sealing performance is the hallmark of SJ VALVE. We employ high-grade hard alloy surfacing on the sealing surface, which is not only resistant to wear and erosion, but has also passed rigorous zero-leakage pressure tests. Each SJ VALVE globe valve undergoes multiple quality inspection processes before leaving the factory, ensuring that users receive a "once-and-for-all" sealing experience.
Q4: What are the key considerations when purchasing and using globe valves?

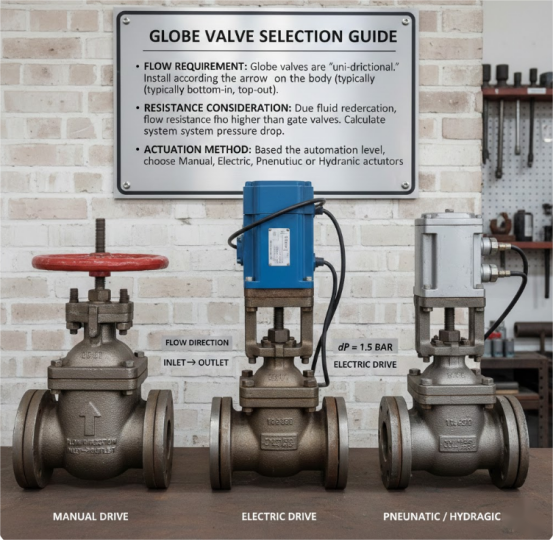

A: To maximize the performance of the globe valve, the following points should be noted during selection:
- Flow direction requirements: The globe valve is a "check valve", and its installation must strictly follow the arrow direction on the valve body (usually bottom inlet and top outlet).
-Resistance Consideration: Since the fluid needs to change direction within the valve body, its flow resistance coefficient is higher than that of a gate valve. When selecting the type of valve, it is necessary to calculate the system pressure drop.
- Drive mode: Depending on the level of automation, manual, electric, pneumatic, or hydraulic drive devices can be selected.
SJ VALVE provides customers with comprehensive technical selection support. Our team of engineers is involved throughout the entire process, from initial condition analysis to later installation guidance. Additionally, SJ VALVE's modular design allows for the rapid addition of various actuators according to user needs, providing you with the most flexible and intelligent automated fluid control solutions.
A: To maximize the performance of the globe valve, the following points should be noted during selection:
- Flow direction requirements: The globe valve is a "check valve", and its installation must strictly follow the arrow direction on the valve body (usually bottom inlet and top outlet).
-Resistance Consideration: Since the fluid needs to change direction within the valve body, its flow resistance coefficient is higher than that of a gate valve. When selecting the type of valve, it is necessary to calculate the system pressure drop.
- Drive mode: Depending on the level of automation, manual, electric, pneumatic, or hydraulic drive devices can be selected.
SJ VALVE provides customers with comprehensive technical selection support. Our team of engineers is involved throughout the entire process, from initial condition analysis to later installation guidance. Additionally, SJ VALVE's modular design allows for the rapid addition of various actuators according to user needs, providing you with the most flexible and intelligent automated fluid control solutions.
Conclusion
Globe valves are not only a component on industrial pipelines, but also a solid barrier ensuring the safe operation of industrial processes. With their simple structure, good sealing performance, and convenient maintenance, globe valves will surely continue to play a core role in the future field of more intelligent and refined fluid control. Choosing high-quality globe valves is like choosing a long-term insurance for the safety of your project.
Globe valves are not only a component on industrial pipelines, but also a solid barrier ensuring the safe operation of industrial processes. With their simple structure, good sealing performance, and convenient maintenance, globe valves will surely continue to play a core role in the future field of more intelligent and refined fluid control. Choosing high-quality globe valves is like choosing a long-term insurance for the safety of your project.
