Metal Seated Ball Valves vs Soft Seated Ball Valves
2024-11-18
Metal Seated Ball Valves vs Soft Seated Ball Valves
Metal Seated Ball Valves vs Soft Seated Ball Valves
With the advancement of industry and engineering, there are constant challenges in selecting the right components for various applications. For flow control systems, choosing the right valve is crucial for ensuring optimal performance and reliable operation.
In this article, we will focus on a common but critical question: "Which is the better choice: metal seat valves or soft seat valves?"
Both options have their own unique features and advantages, but also significant differences in design, operation, and ideal applications. Before choosing the right valve seat, you must know the following:
- Does your situation require an airtight closure?
- Is the medium corrosive?
- Does it contain abrasive particles?
- Is it under high pressure or high temperature?
Once you have a firm grasp of these factors, the choice becomes obvious.
Soft Seated Ball Valves
The sealing surfaces of soft seat valves are made of non-metallic thermoplastic materials such as PTFE, DELRIN, NYLON and PEEK. They operate in medium or low pressure environments and are suitable for operating temperatures below 500°F. Under the right conditions, soft seat valves can provide a fairly high level of sealing over their service life, often higher than traditional metal seat valves.
However, soft-seated valves are not suitable for aggressive media, dirty process fluids, or abrasives. These conditions can cause the soft seat to rupture and leak. They cannot withstand the same pressure as metal sealed valves. Although soft sealed valves are usually cheaper than metal sealed valves, when harsh conditions are required, metal sealed valves usually win.
Soft seats in industrial applications
Soft seat valves are used in a variety of industries because they are very good at sealing. Let's look at how these valves ensure efficiency, purity and safety in certain industries.
-
Pharmaceutical industry
In pharmaceuticals, it is essential to maintain tight control over fluid flow. This is to ensure product quality and compliance.
Soft seat valves avoid contamination through good sealing. They can also prevent impurities from entering the system. This ensures the purity of the drug.
-
Food processing
The food processing industry must be hygienic in order to produce safe, high quality food. Food processing uses soft seats to prevent cross-contamination and product safety issues. These valves are tightly sealed and use soft materials to maintain fluid quality.
-
Water treatment plant
Soft seat valves manage water flow in water treatment plants. These valves prevent leaks and backflow and maintain water quality after treatment.Soft seat valves are ideal for water pollution control tasks. The valves help protect human health and the environment.

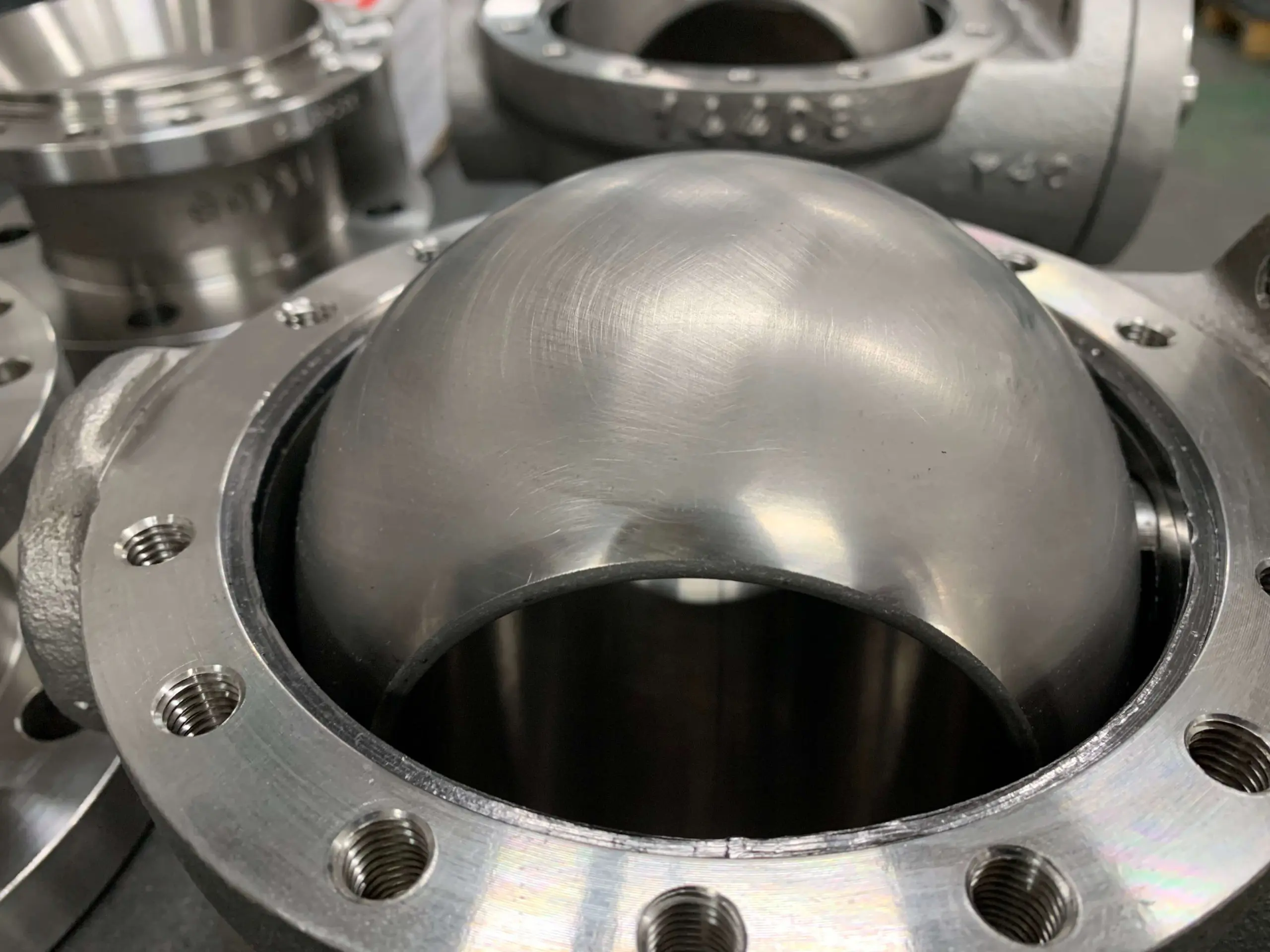

Metal Seated Ball Valves
Metal seated valves are designed for demanding applications. The metal seat valve has a metal-to-metal sealing surface for increased durability and wear resistance. These valves can withstand harsh conditions, including extreme temperatures in excess of 1000°F (538°C). The metal seat surface has a long service life and works well under harsh conditions.
