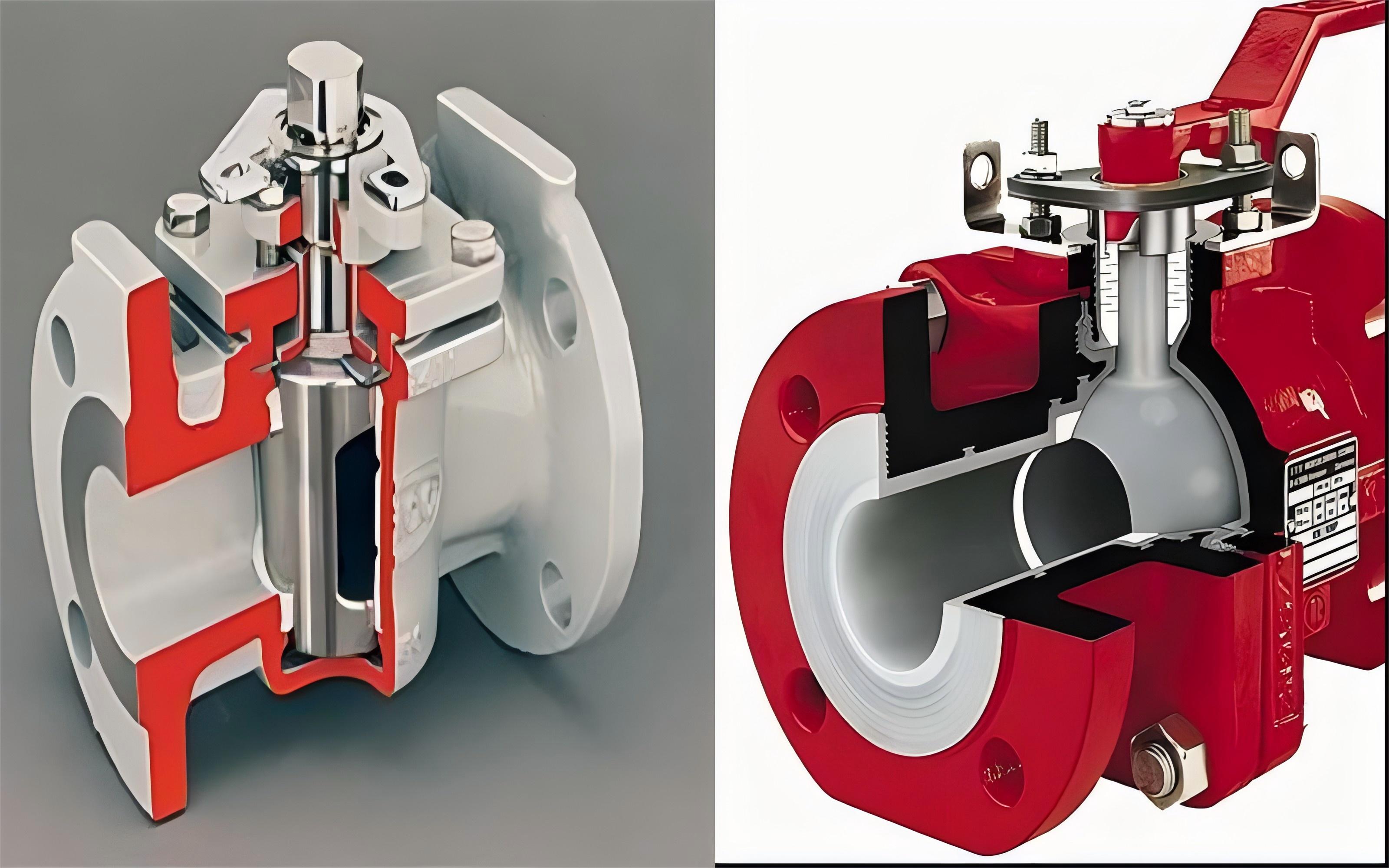

Plug Valve vs Ball Valve - How To Choose

SJ Plug Valve and S J Ball Valve are used in a variety of industries to control the flow of liquids and gases. Both have unique features and design differences that make them suitable for different applications. To help customers determine which type of valve is better suited for a specific application, this article explores the main differences between plug valves and ball valves, including their design, features, advantages and disadvantages.

                                                                                                  S J Plug Valve

1:SJ Plug Valve have been used in a variety of different fluid services. They perform well in slurry services. They are used as on-off stop valves in bubble-tight service. They are used in air, gas and steam service, natural gas and oil pipeline systems, food processing, non-abrasive slurries, vacuum, pharmaceutical service, and vacuum to high pressure applications. They are suitable for on-off valves, diverter services, and moderate throttling. Plug valves were originally designed to replace gate valves because the quarter-turn action of the plug valve can easily open and close the flow compared to the gate valve.

2:SJ Plug Valve are generally suitable for low-pressure and low-temperature services. Plug valves with materials such as poly tetrafluoroethylene (PTFE) in the valve body lining can be used in corrosive chemical services.

Components of SJ Plug Valve  has all common parts such as stem, body, disc and bonnet. It is different from other valves due to its plug disc design.

1: SJ Plug Valve Body:

The valve body has all the internal components of the valve. The valve body is connected to the pipe through end connections.

2: SJ Plug Valve Stem:

The valve stem of the valve connects the disc (or flap) to the actuator. This helps to transmit the movement of the actuator to the plug disc, which opens or closes the plug disc. The plug valve has a small stem connected to the disc

3:SJ Plug Valve Disc;

The plug disc, also known as the tapered disc, acts as a plug, which distinguishes plug valves from globe valves. Among all valves, plug valves, ball valves, and globe valves have some similarities. The main difference is the appearance of the disc. The globe valve has a cylindrical disc. The plug valve has a solid metal piece with a tapered end.

4:SJ Plug Valve Ports;

Plug valves have a solid metal piece with a tapered end.

An important feature of a plug valve is that it is easily adaptable to multi-port configurations. In general, multi-port plug valves are widely used.
