Lift Piston Check Valve Sizes: 2" - 24" Pressure Rating: Class150 - Class2500 Conforms to NACE MR0175/ISO 15156

Lift Check Valve

Lift Piston Check Valve Sizes: 2" - 24" Pressure Rating: Class150 - Class2500 Conforms to NACE MR0175/ISO 15156

Lift Check Valve
Sizes: 2" - 24" Pressure Rating: Class150 - Class2500
Design Specifications & Compliance:Design/Materials: API 6D 24th Edition, ASME B16.34
End to End: ASME B16.10&Flanged End: ASME B16.5&Testing: API 598/API 6D,
Conforms to NACE MR0175/ISO 15156
Material of Valve Body: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.
Quantity

What Is S J Lift Check Valve

S J Valve ​manufactures a premium array of check valves. Our  products are manufactured and tested in accordance with respective API, ASME, and ANSI standards.

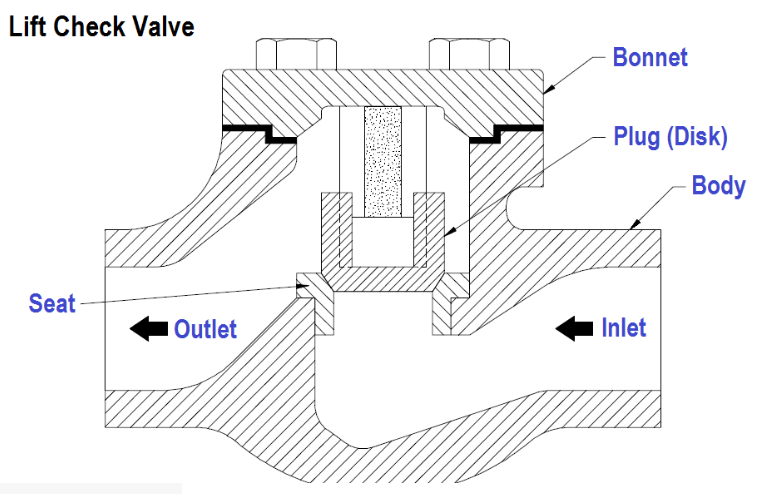

They are essentially globe valves without the stem and top device, allowing the disc to respond to flow and direction. The disc has a linear motion, usually guided by the body with a tapered seating surface. A spring can be added above the disc to provide more closing force as the disc returns to its closed position. Depending on the body construction (y-type, angled or t-type), the pressure drop may be close to that of a tilted disc check valve or may be higher. The disc of this check valve construction is stable in any open position and can be used over a wide range of flows.









Recommend Products

Temperature:-46ºC up to 425ºC Sizes 2" - 24" Rating ASME 150LB - 2500LB Axial Flow Check Valves

Temperature:-46ºC up to 425ºC Sizes 2" - 24" Rating ASME 150LB - 2500LB Axial Flow Check Valves

Model NO.Axial Flow Check Valves

Dual Plate Check Valve

Dual Plate Check Valves 1/2"-12"150LB~2500LB(ASME B16.34)Working temperature: -20℃+120℃

Model NO.Dual Plate Check Valve

Pressure range:CLASS 150Lb~2500Lb Nominal diameter;NPS 2~60″Flapper Check Valve(​Swash Plate Type)

Pressure range:CLASS 150Lb~2500Lb Nominal diameter;NPS 2~60″Flapper Check Valve(​Swash Plate Type)

Model NO.Flapper Check Valve(​Swash Plate Type)

Stainless Steel Swing Check Valve

2″-24”600LB~2500LB Body Materials: Stainless Steel Stainless Steel Swing Check Valve

Model NO.Stainless Steel Swing Check Valve
