Plug Valves quarter turn operation via manual hand lever or another actuating device Size: 1/2"-16" Class: 150#-1500#

plug valve

Plug Valves quarter turn operation via manual hand lever or another actuating device Size: 1/2"-16" Class: 150#-1500#

Plug Valves
Size: 1/2"-16" (15mm - 400mm)
Class: 150#-1500#
Two Way / Three Way
CS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE
Hand Lever / Gear Box / Hydraulic / Electrical Actuator
Jacketing / Inverting with Spring Load
PTFE Sleeve body
Insolation and Reversing
Handened Sleeve and Plug
Quantity

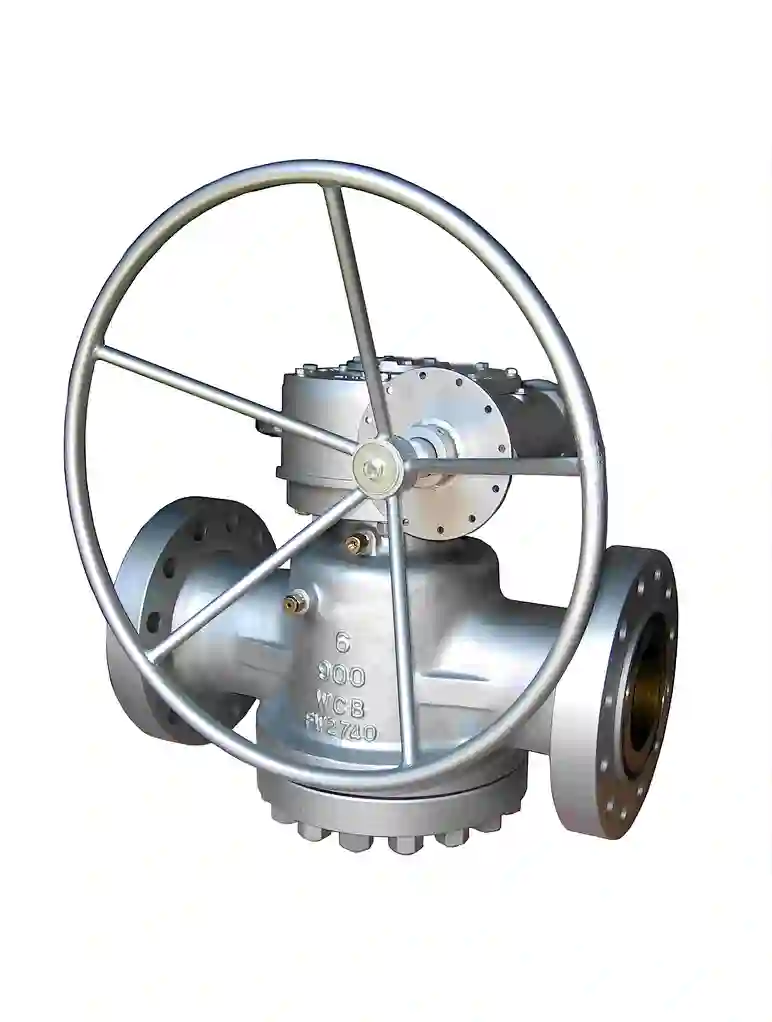

PLUG VALVES

Plug valve, Size: 1/2"-16"(15mm - 400mm)Class: 150#-1500#Flanged Ends, RF, Reduced bore, 2 ways.
Plug Valve Type: Sleeved.Body Materials: CS, Std & Gr. ASTM A 216.
Plug Valve Material: S.S., std & Gr. ASTM A 351 CD4MCU.Seat Materials: Teflon.
Bonnet Material: CS.Type: Bolted.Stem Material: S.S.Seal Material: Teflon 15% RPTFE.
Gear Op. Manuf. STD : API 6D.

Why Choose SJ?

Plug valves have a wide range of applications, and the SJ plug valve series reliably meets most requirements. High temperature and pressure. Corrosive media. Deadly toxic sub-zero liquids Our range of plug valves achieve low energy consumption through safe operation with low torque design and tight closing performance. The high level of uptime is achieved through the pressure balance design. The absolute shutdown requirement can be addressed with a dual isolation model.



Recommend Products

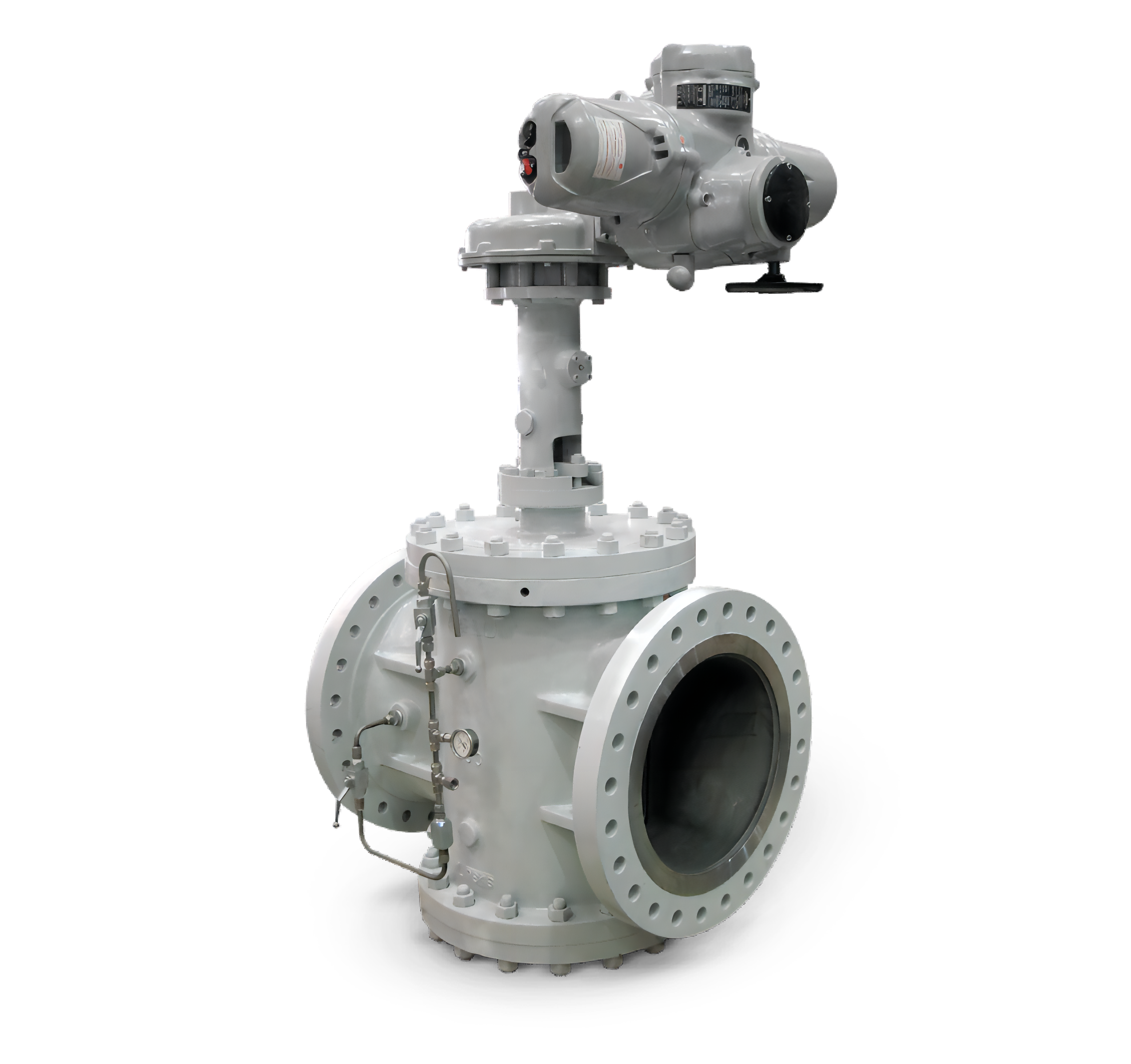

Size: 1/2"-16" (15mm - 400mm) Class: 150#-1500# The bevel gear drive full bore general valve is suitable for aviation kerosene, crude oil, light oil, natural gas,

Size: 1/2"-16" (15mm - 400mm) Class: 150#-1500# The bevel gear drive full bore general valve is suitable for aviation kerosene, crude oil, light oil, natural gas,

Model NO.Orbital Plug Valve

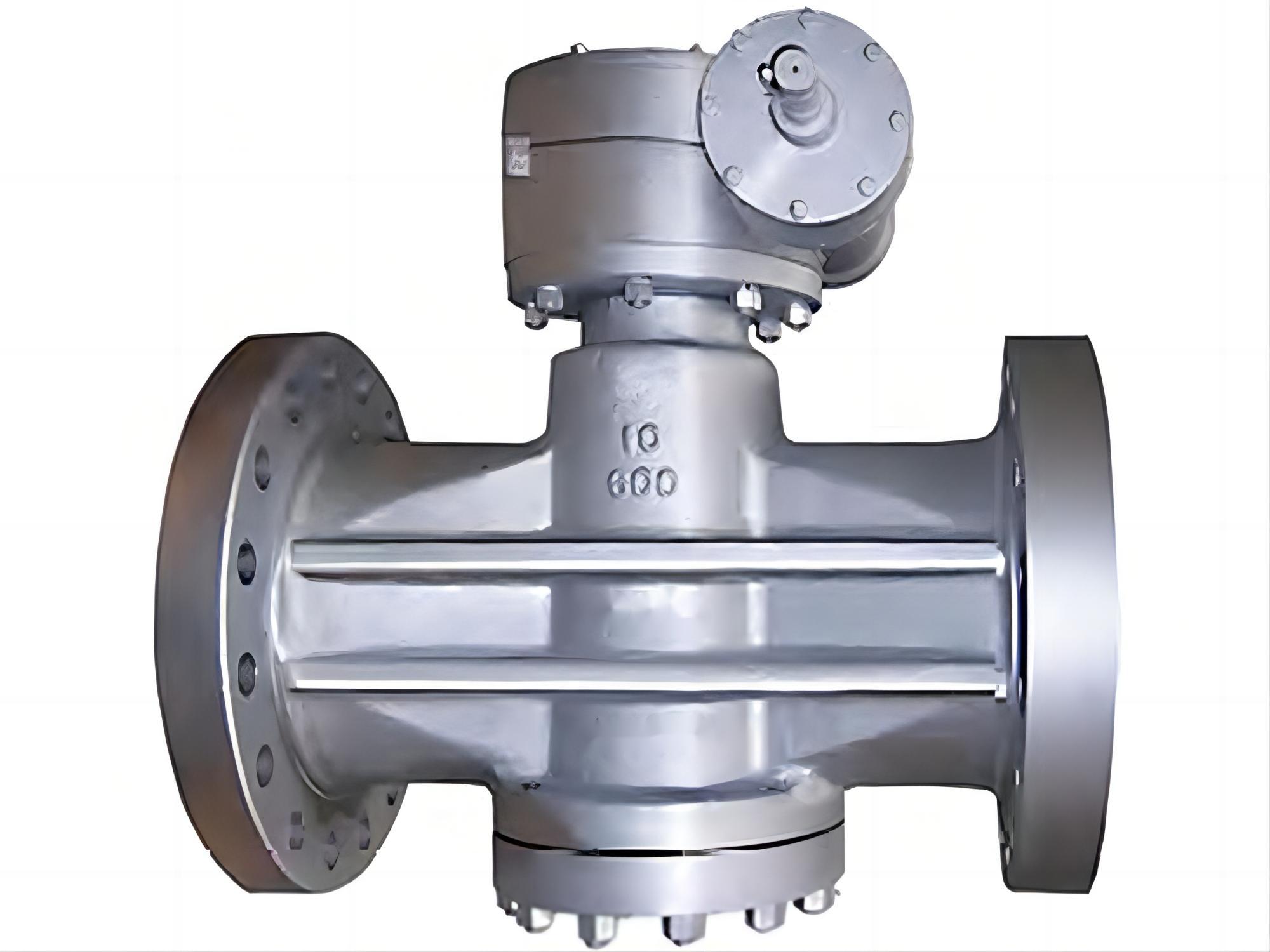

Size:1/2"-16" Class: 150#-300#-600# pressure balanced lubricating plug valve is simple to operate

Size:1/2"-16" Class: 150#-300#-600# pressure balanced lubricating plug valve is simple to operate

Model NO.Pressure Balance Lubricating Type Plug Valves
