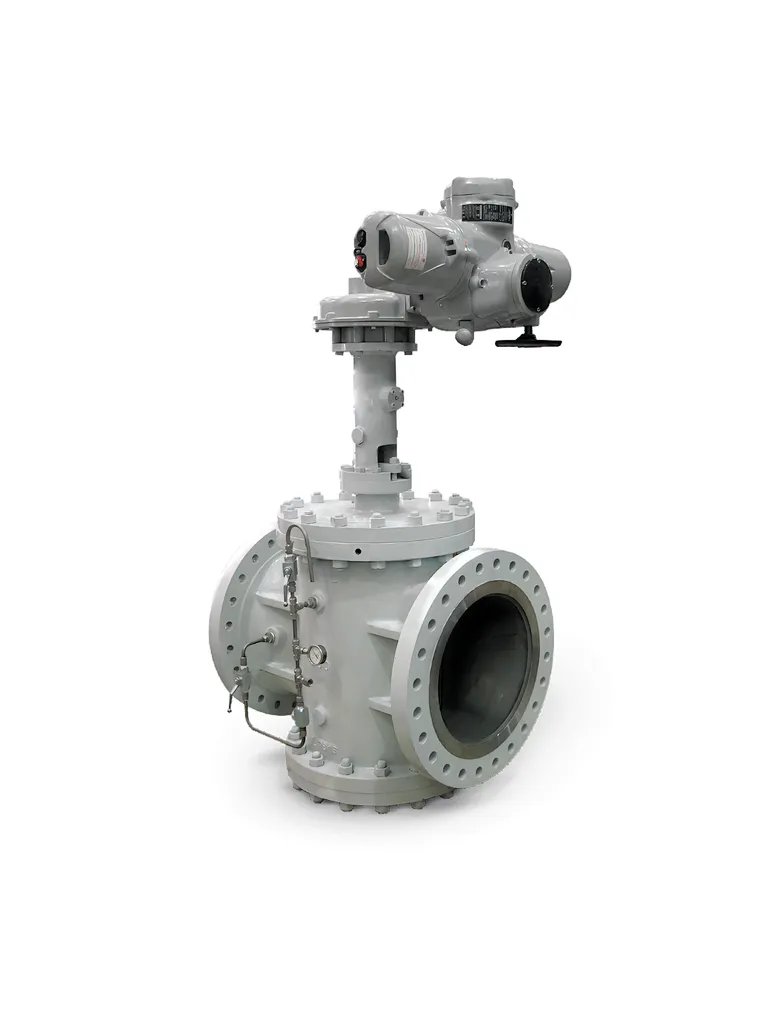

Orbital Plug Valve
Size: 1/2"-16" (DN15 - DN400)
Class: 150#-1500#
Two Way / Three Way
CS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE
Hand Lever / Gear Box / Hydraulic / Electrical Actuator
Jacketing / Inverting with Spring Load
PTFE Sleeve body
Insolation and Reversing
Handened Sleeve and Plug
Class: 150#-1500#
Two Way / Three Way
CS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE
Hand Lever / Gear Box / Hydraulic / Electrical Actuator
Jacketing / Inverting with Spring Load
PTFE Sleeve body
Insolation and Reversing
Handened Sleeve and Plug
Quantity
PLUG VALVES
An orbital valve, also known as an eccentric plug valve, is a type of industrial valve commonly used in various applications to control the flow of fluids. The cutting-edge orbital plug valves, synonymous with innovation, are rapidly becoming a staple in sectors such as petroleum, chemicals, pharmaceuticals, fertilizers, and power, redefining how we approach pipeline connectivity.
Plug valve comprises of plug, body, and cover and is used for on-off and Control services basically in refinery, chemical industry, and petrochemical. Normally small in size, require less headroom and available in wide range of materials. They provide tight shut off, quick opening and low pressure drop
ADVANTAGES OF PLUG VALVES
- It comprises of few parts and has a simple design.
- Opens and closes easily.
- It can be maintained and repaired easily at the place of operation.
- They have low flow resistance and has a reliable leak-proof feature
- The most important feature is that there is no dead zone in the valve, especially since there is no dead zone inside the valve, there is no locking or deterioration in the valve due to the accumulations caused by the fluid.
Applications and Operational Principle
Tailored for pipelines in industries requiring nominal pressures between CLASS 150 and 900LBS, the orbital plug valves excels in seamlessly interrupting or connecting pipeline mediums. Its operational principle involves aligning the plug's channel with the valve body's channel when fully open, ensuring an optimal minimum pressure drop.
Rotating the handwheel initiates the plug's movement towards the valve, concurrently driving the valve disk by 90 degrees. Continuous handwheel rotation causes the plug to press down, opening the valve and tightly compressing the valve disk onto the seat for secure closure.
