Size: 1"-36" Class: 150#-1500#. Concentric Butterfly Valve Manufacturers of high performance butterfly valves

Model NO. Concentric Butterfly Valve

Size: 1"-36" Class: 150#-1500#.
Manufacturers of butterfly valves
Bi-Directional Tight Shut-Off
Ends : Wafer Type, Lugged, Semi Lugged, Double Flanged
Design Standards
Designs to ANSI B16.34, API 609, BS5155
Face to face : API 609 / ISO 5752 short
Flange : UNI/DIN/ISO/ANSI
Testing to API 598

Quantity

Concentric Butterfly ValveofSJ

The concentric butterfly valve is a lightweight, cost-effective quarter-turn valve used for on-off and throttling control in low-pressure industrial pipelines. With a simple structure and 90° operation, it is easy to install and maintain. Suitable for clean water, air, gas, oil and general non-corrosive media, it is widely applied in water treatment, HVAC, fire protection and general industry. WTY provides reliable concentric butterfly valves with flexible actuation options and full factory testing.

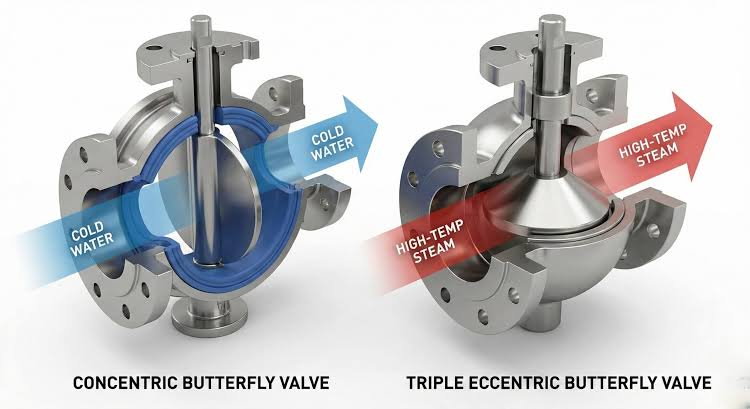

Reference images for Concentric Wafer‑Type Butterfly Valve and Triple Eccentric Butterfly Valve Design

Comparison Dimension	Concentric Butterfly Valve (Wafer Type)	Triple Eccentric Butterfly Valve
Sealing Principle	Relies on the interference deformation of the resilient seat (rubber/PTFE, etc.) squeezing the disc to achieve sealing.	Relies on metal-to-metal (or composite) slanted-cone hard sealing, utilizing geometric eccentricity to achieve"zero-friction"closure.
Sealing Material	Soft seal (re(typically $-20^circtext{C} sim 120^circtext{C}$).silient rubber, EPDM, NBR, PTFE, etc.).	Hard seal (stainless steel, Stellite alloy, cemented carbide, etc.).
Leakage Class	Can achieve zero leakage (due to soft seal characteristics).	Can achieve zero leakage (under strict API 598 / ISO 5208 standards).
Friction & Wear	The sealing surfaces are constantly subjected to friction and squeezing during opening/closing, leading to faster wear and relatively shorter service life.	Sealing surfaces disengage instantly upon opening and only touch at the moment of closing, achieving"zero friction"throughout the entire stroke and an extremely long service life.
Temperature & Pressure Resistance	Generally lower pressure ratings (PN10/PN16/Class 150), temperature limited by rubber material (typically -20.℃～120℃）	High pressure resistance (up to Class 600/900 and above), extreme high and low temperature（ -196℃～+650℃）
Flow Resistance & Flow Capacity	Thicker disc, relatively higher flow resistance, and slightly lower flow capacity.	Streamlined disc design, lower flow resistance, and strong flow capacity (high Cv value).
Typical Application Scenarios	Water treatment, HVAC, sewage, low-pressure and ambient-temperature general industrial pipelines.	Petrochemical, refining, high-temperature and high-pressure steam in power plants, LNG (cryogenic), severe services.
Structural Complexity & Cost	Simple structure, compact size, lightweight, and low cost.	Complex structure, extremely high machining precision requirements, and high cost.

STANDARD MATERIALS OF MAIN PARTS
ITEM		PART NAME						MATERIAL
1		Body						Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel
2		Seat						NBR,EPDM,Viton,Neoprene,Hypalon,Silicon
3		Shaft						Stainless Steel 410,316,17-4PH
4		Disc						Ductile Iron+Ni,CF8,CF8M,Bronze
5		Pin						Stainless Steel
6		Bushing						PTFE,Bronze
7		O Ring						NBR,EPDM

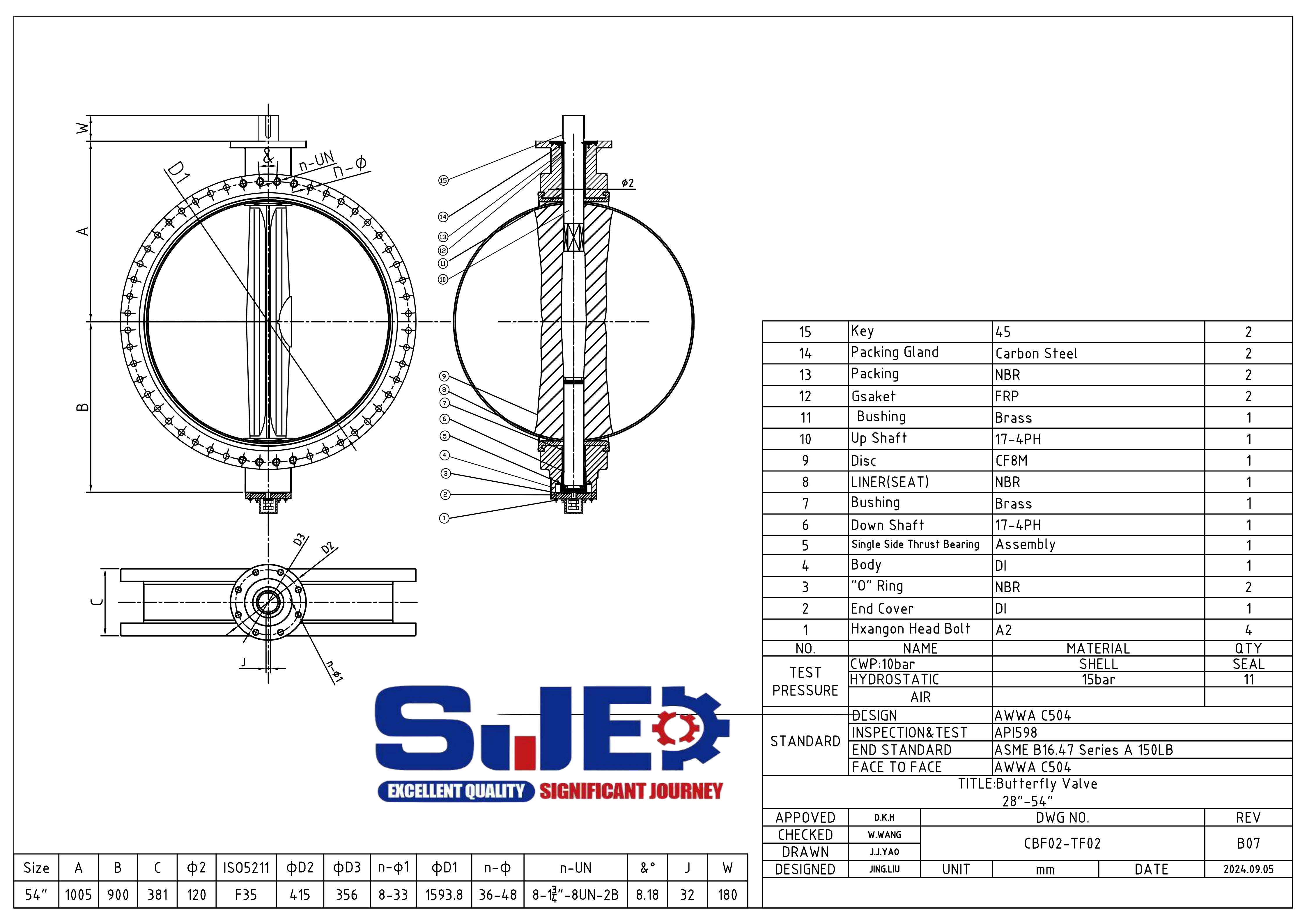

DIMENSIONS AND WEIGHTS
SIZE		A	B	C	D	L	d0		P	H	KEY bXI	UPPER FLANGE					ANSI 150		DIN PN10/16		Weight (kg)
in	DN	A	B	C	D	L	d0		P	H	KEY bXI	K	E	Z-d	g	h	D1	n-M	D1	n-M	Weight (kg)
1-1/2	40	145	75	33	42.4	32	12.6		9	10	3X16	77	50	4-7	35	3	98.5	4-1/2"	110	4-M16	3.2
2	50	161	80	42	52.6	32	12.6		9	10	3X16	77	50	4-7	35	3	120.5	4-5/8"	125	4-M16	3.8
2-1/2	65	175	89	44.7	64.5	32	12.6		9	10	3X16	77	50	4-7	35	3	139.5	4-5/8"	145	4-M16	4.2
3	80	181	95	45.2	78.8	32	12.6		9	10	3X16	77	50	4-7	35	3	152.5	4-5/8"	160	4/8-M16	4.7
4	100	200	114	52.1	104	32	15.77		11	12	5X19	90	70	4-9	55	3	190.5	8-5/8"	180	8-M16	9.0
5	125	213	127	54.4	123.3	32	18.92		14	14	5X19	90	70	4-9	55	3	216	8-3/4"	210	8-M16	10.9
6	150	226	139	55.8	155.6	32	18.92		14	14	5X19	90	70	4-9	55	3	241.5	8-3/4"	240	8-M20	14.2
8	200	260	175	60.6	202.5	45	22.1		17	17	5X19	125	102	4-12	70	3.5	298.5	8-3/4"	295	8/12-M20	18.2
10	250	292	203	65.6	250.5	45	28.45		22	22	8X28	125	102	4-12	70	3.5	362	12-7/8"	350/355	12-M20/M24	26.8
12	300	337	242	76.9	301.6	45	31.6		22	24	8X28	140	102	4-12	70	3.5	432	12-7/8"	400/410	12-M20/M24	40
14	350	368	267	76.5	333.3	45	31.6		22	24	8X28	140	102	4-12	70	3.5	476	12-1"	460/470	16-M20/M24	56
16	400	400	309	86.5	389.6	51.2	33.15		24	24	10X50	197	140	4-18	100	4	540	16-1"	515/525	16-M24/M27	96
18	450	422	328	105.6	440.5	51.2	38		27	27	10X50	197	140	4-18	100	4	578	16-11/8"	565/585	20-M24/M27	122
20	500	480	361	131.8	491.6	64.2	41.15		36	32	10X50	197	140	4-18	100	4	635	20-11/8"	620/650	20-M24/M30	202
24	600	562	459	152	592.5	70.2	50.65		36	36	2-16X60	276	165	4-23	130	5	749.5	20-11/4"	725/770	20-M27/M33	270

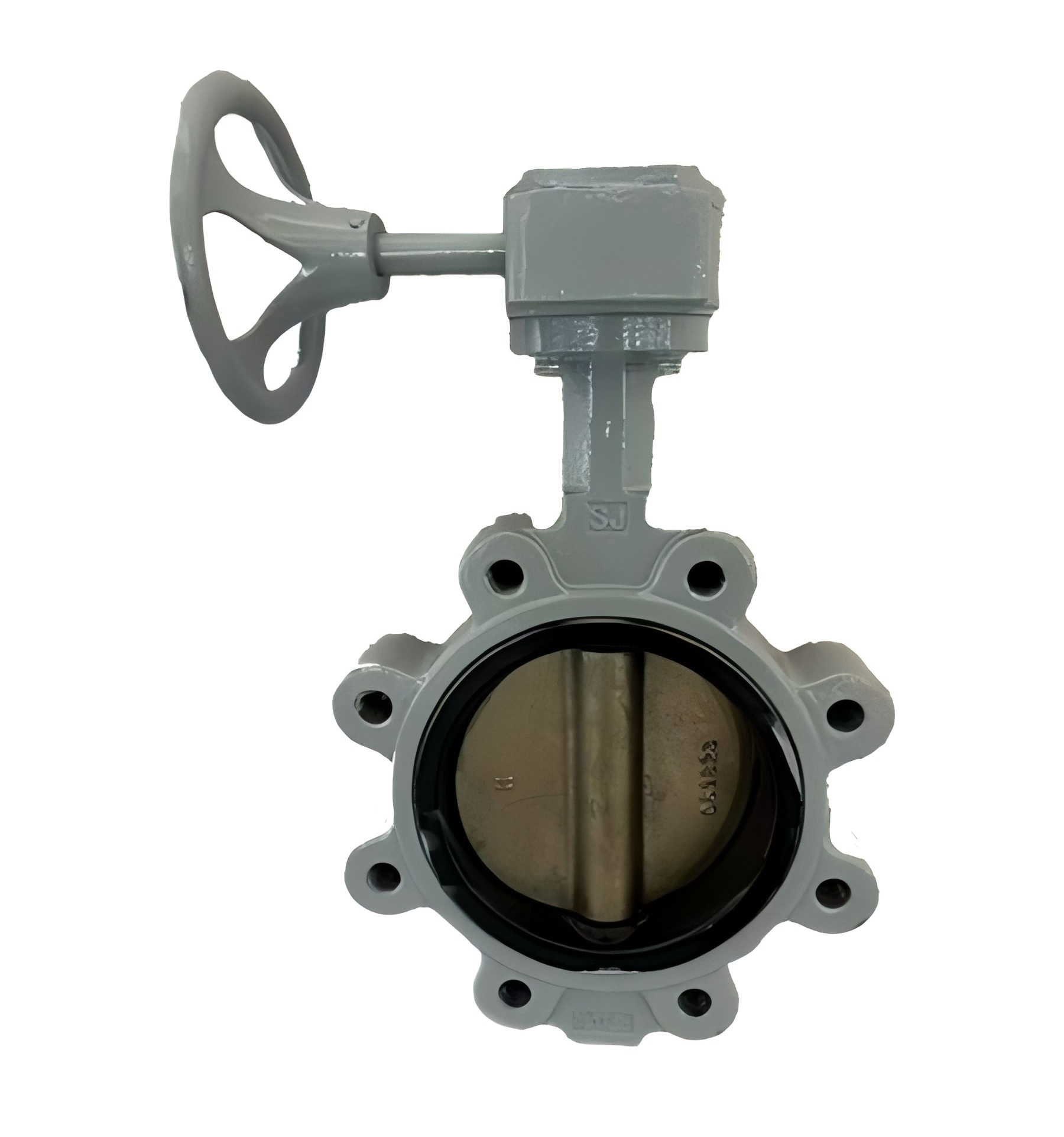

The disc of concentric wafer type lug butterfly valve is installed in the diameter direction of the pipeline.In cylindrical channel of the valve body,the disc rotates around the axis,and the rotation angle is between 0°-90° When it rotates to 90°,the valve is fully open.Valve is widely used,so the same valve will be have different collocation according to different occasions and working conditions.
Technical parameters
Medium/working condition /Main Parts	Can be used in water supply and drainage,central air conditioning,heating,sewage, chemical industry,paper making,Marine,food industry,etc


Seat	NBR	EPDM	VITON
Suitable temperature	-20℃~80℃	-20℃~100℃	-10℃~180℃

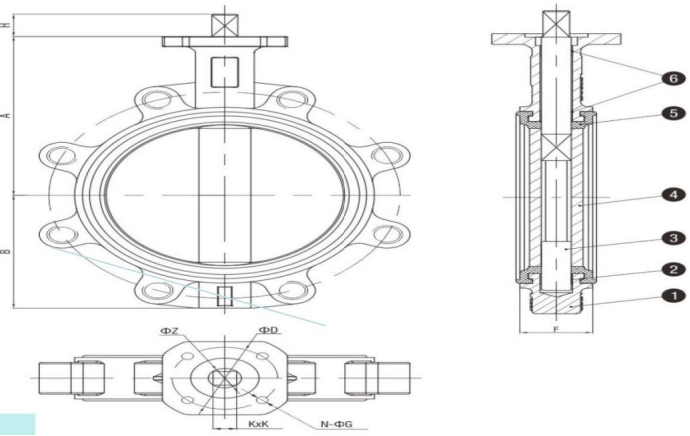

Main Parts and Materials:
NO	Part name			Material			NO		Part name			Material
1	Body			GGG40			4		Disc			CF8/C954/CF8M
2	Gland bush			SF-1			5		Seat			EPDM/NBR
3	Shaft			SS420			6		Gland bush			SF-1
Data size:
MM		A±3	B±3		φZ	H±1		KxK		F±1	Top Flange		ΦD	N-ΦG
DN50		115	74		12.6	32		9x9		43	F05		50	4-Φ8
DN65		132	82		12.6	32		9x9		46	F05		50	4-Φ8
DN80		135	92		12.6	32		9x9		46	F05		50	4-Φ8
DN100		162	108		15.77	32		11x11		52	F07		70	4-Φ10
DN125		176	123		18.92	32		14x14		56	F07		70	4-Φ10
DN150		190	135		18.92	32		14x14		56	F07		70	4-Φ10
DN200		230	166		22.10	45		17x17		60	F10		102	4-Φ12
DN250		270	200		28.45	45		19x19		68	F10		102	4-Φ12
DN300		305	238		31.60	45		22x22		78	F10		102	4-Φ12
DN350		340	270		31.60	45		22x22		78	F10		102	4-Φ12
DN400		400	310		33.15/37.95	52		27x27		102	F14		140	4-Φ18
DN450		420	330		38.00/42.86	52		27x27		114	F14		140	4-Φ18
DN500		465	367		41.15/45.70	64		36x36		127	F14		140	4-Φ18
DN600		536	430		50.65/53.98	70		36x36		154	F16		165	4-Φ22

The data is provided for reference purposes only. For detailed information, please contact our technical personnel.

FAQ1: What is the main difference between lug‑type and ordinary wafer‑type butterfly valve?

Answer: The lug‑type valve has threaded lugs on the valve body. Bolts screw directly into these lugs, allowing one‑side pipeline disassembly without removing the valve. Standard wafer‑type relies on long bolts running through both flanges; the valve will fall off if one‑side piping is removed.

FAQ2: Can this concentric wafer‑type lug butterfly valve work for water and seawater service?

Answer: Yes. Its concentric soft‑seat design is suitable for water service. For seawater, please advise us of working conditions so we can select suitable elastomer and metal material to resist corrosion.

FAQ3: What pressure classes are available for this lug butterfly valve?

Answer: We support ANSI Class 150 and PN10 / PN16 as regular options. Other pressure ratings can be customized upon your request.

FAQ4: Is this valve supplied with actuator?

Answer: This item refers to bare valve body only by default. Lever handle, gear operator, electric or pneumatic actuators are optional extras. Please specify your requirement in your inquiry.
