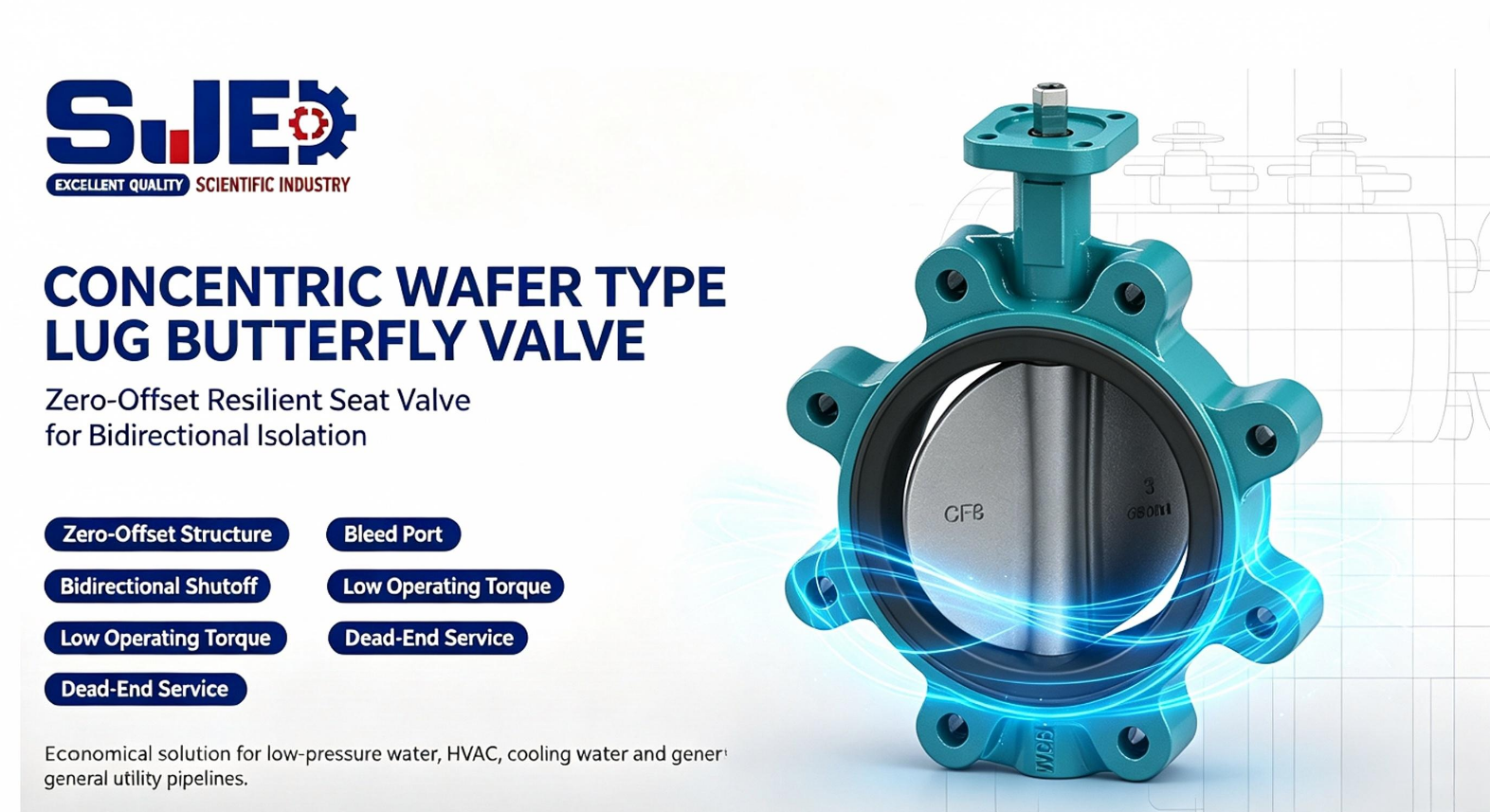

Concentric Wafer Type Lug Butterfly Valve

Model NO. Butterfly valve series

Butterfly valve series
Model NO.
LTD71X‑Fig1902
Size Range DN50‑DN600
Nominal Pressure 16bar
Suitable Temperature -20~100°C
Suitable Medium Water, sea water, gas and other non‑corrosive medium
Design Standard: GB/T 12238
Face‑to‑Face: GB/T 12221
Connection Size: PN6/PN10/PN16/5K/10K/CLASS150
Pressure Testing: GB/T 13927

Quantity

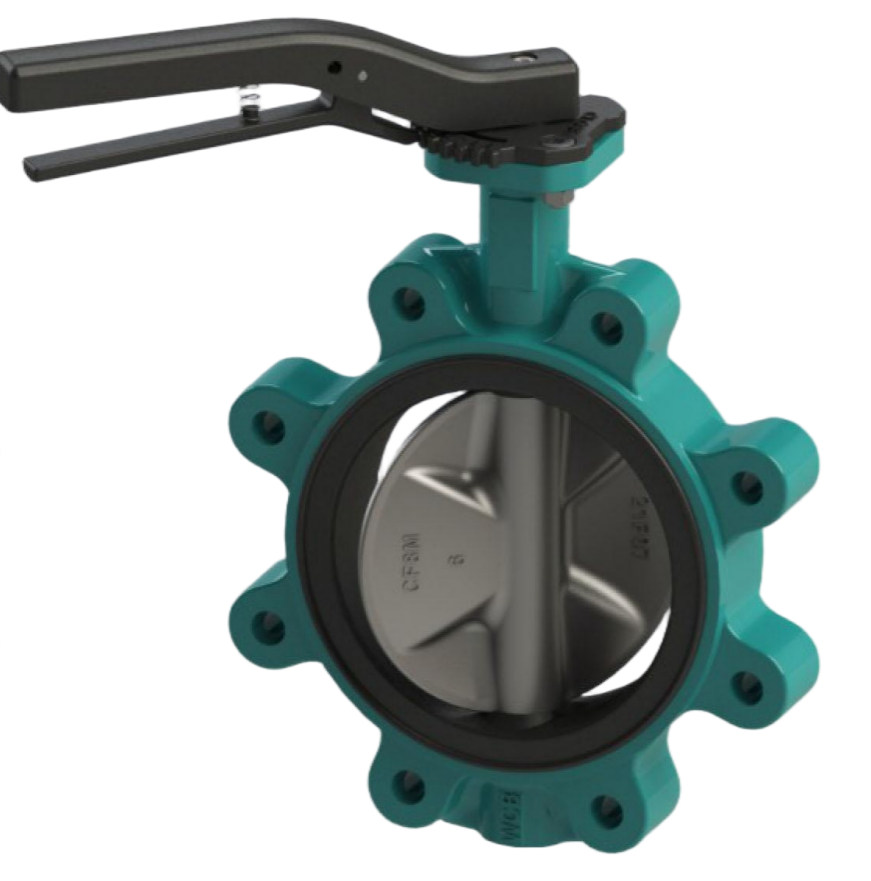

Concentric Wafer Type Lug Butterfly Valve of SJ
The disc ofconcentric wafertype lug butterfly valve is installed in the diameter directionof the pipeline.In thecylindrical channelofthevalvebody,the discrotatesaroundtheaxis,andtherotationangleisbetween0°~90°.When itrotates to 90°,thevalveis fullyopen.Valveiswidelyused,so the samevalvewillbehavedifferentcollocationaccordingtodifferentoccasionsandworkingconditions.

Concentric Wafer Type Lug Butterfly Valve vs Double Eccentric Lug Butterfly Valve？

The concentric lug butterfly valve adopts zero-offset structure with soft rubber seat. It has low cost, low operating torque and supports dead-end service, best for low-pressure clean water and HVAC systems. But the disc continuously rubs against the seat during operation, leading to faster seat wear and limited temperature & pressure range. The double eccentric lug butterfly valve uses double offset design. The disc leaves the seat right after opening, minimizing friction and extending service life. It can be equipped with soft or metal seat for higher pressure and temperature, suitable for medium-pressure pipelines requiring frequent operation, though its price is higher. Both are lug style and permit dead-end service.

Technical parameters
Medium/working /condition/ Main Parts	Can be used in water supply and drainage,central air conditioning,heating,sewage, chemical industry,paper making,Marine,food industry,etc

Body	Ductile iron/WCB/SS.,etc.
Disc	SS/DSS/Copper Alloy
Seat	NBR	EPDM	VITON
Suitable temperature	-20℃~80℃	-20℃~100℃	-10℃~180℃

Main Parts and Materials:

Part name

Material

Part name

Material

Body

GGG40

Disc

CF8/C954/CF8M

Gland bush

SF-1

Seat

EPDM/NBR

Shaft

SS420

Gland bush

SF-1

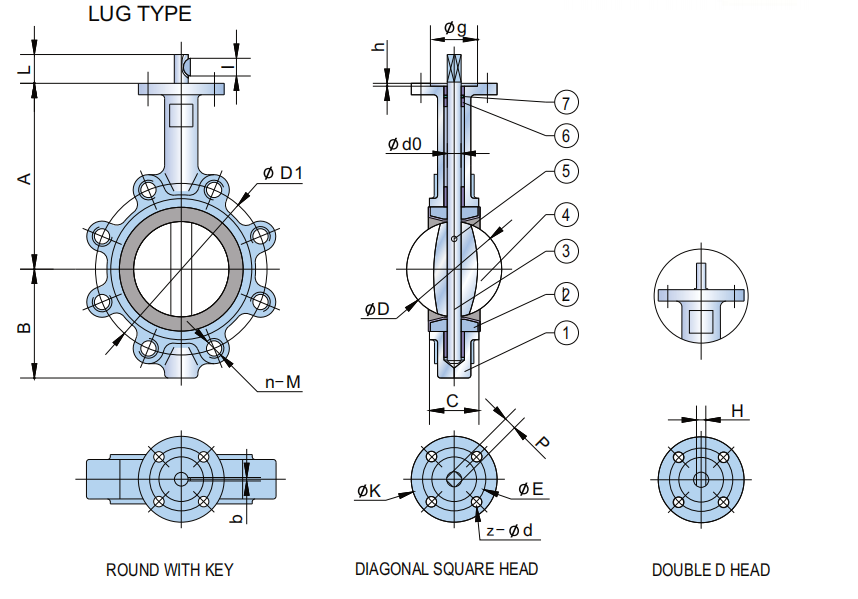

Data size:

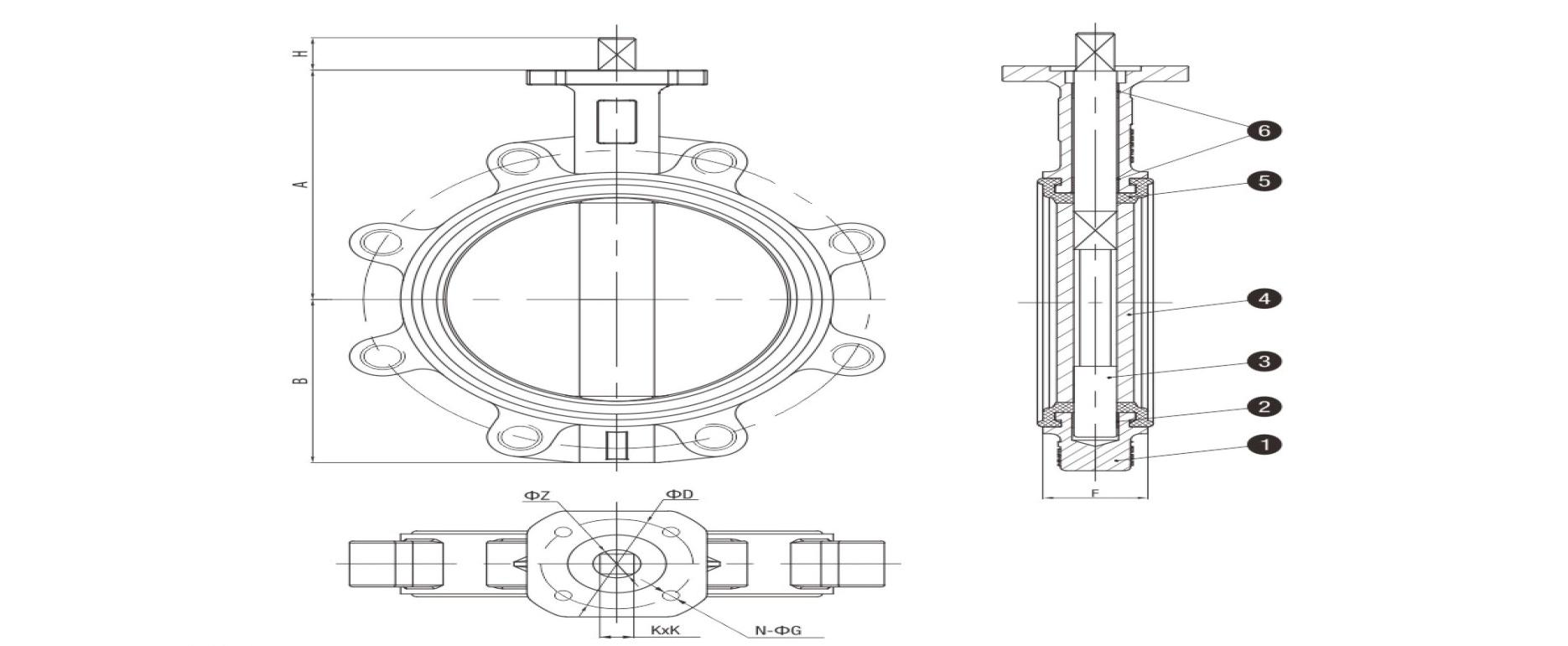

MM	A±3	B±3	φZ	H±1	KxK	F±1	Top Flange	ΦD	N-ΦG
DN50	115	74	12.6	32	9x9	43	F05	50	4-φ8
DN65	132	82	12.6	32	9x9	46	F05	50	4-Φ8
DN80	135	92	12.6	32	9x9	46	F05	50	4-Φ8
DN100	162	108	15.77	32	11x11	52	F07	70	4-Φ10
DN125	176	123	18.92	32	14x14	56	F07	70	4-φ10
DN150	190	135	18.92	32	14x14	56	F07	70	4-Φ10
DN200	230	166	22.10	45	17x17	60	F10	102	4-Φ12
DN250	270	200	28.45	45	19x19	68	F10	102	4-Φ12
DN300	305	238	31.60	45	22x22	78	F10	102	4-Φ12
DN350	340	270	31.60	45	22x22	78	F10	102	4-Φ12
DN400	400	310	33.15/37.95	52	27x27	102	F14	140	4-Φ18
DN450	420	330	38.00/42.86	52	27x27	114	F14	140	4-Φ18
DN500	465	367	41.15/45.70	64	36x36	127	F14	140	4-Φ18
DN600	536	430	50.65/53.98	70	36x36	154	F16	165	4-Φ22

The above data is for reference only. Please consult our technical staff for detailed information.

Q1: What is the main function of a Concentric Wafer Type Lug Butterfly Valve in pipeline systems?

A: The Concentric Wafer Type Lug Butterfly Valve has a zero-offset resilient seat and threaded lugs. It provides bidirectional bubble-tight shutoff for fluid isolation and supports dead-end service, allowing downstream flange removal while keeping upstream pressurized. It features low torque and compact size. Conclusion: Therefore, the main function of the Concentric Wafer Type Lug Butterfly Valve is to offer cost-effective bidirectional isolation for low-pressure water pipelines and enable one-side maintenance without upstream depressurization.

Q2: What are the core differences between Concentric Wafer Type Lug Butterfly Valve vs Double Eccentric Lug Butterfly Valve?

A: The concentric lug butterfly valve is zero-offset. Its disc rubs the rubber seat throughout opening and closing. It uses only soft seat for PN10/PN16, -10~120℃, low cost yet poor wear resistance for frequent operation. The double eccentric design lets the disc separate from the seat immediately upon opening to reduce friction. It supports soft or metal seats for higher pressure and temperature with longer service life but higher price. Both adopt lug construction for dead-end service. Conclusion: Therefore, their key difference lies in offset structure and applicable working conditions. The concentric type is economical for simple low-pressure service, while the double eccentric version suits medium pressure and frequent cycling.

Q3: What are the typical applications and limitations of Concentric Wafer Type Lug Butterfly Valve?

A: This valve is fitted with EPDM or NBR soft seats. It serves HVAC, cooling water, fire protection and low-pressure clean water pipelines with reliable shutoff. Limited by elastomer seat, it cannot be used for high-temperature steam, strong corrosive media or liquid with hard solids. Frequent operation accelerates seat wear. Conclusion: Therefore, this valve is suitable for low-pressure clean water isolation, and not recommended for high temperature, abrasive media or pipelines with frequent cycles.
