Sizes:1/2" ~ 8"3 Ways Ball Valve ASME: 150LB ~ 300LB Body: CF8M/CF8/WCB
Sizes:1/2" ~ 8"3 Ways Ball Valve ASME: 150LB ~ 300LB Body: CF8M/CF8/WCB

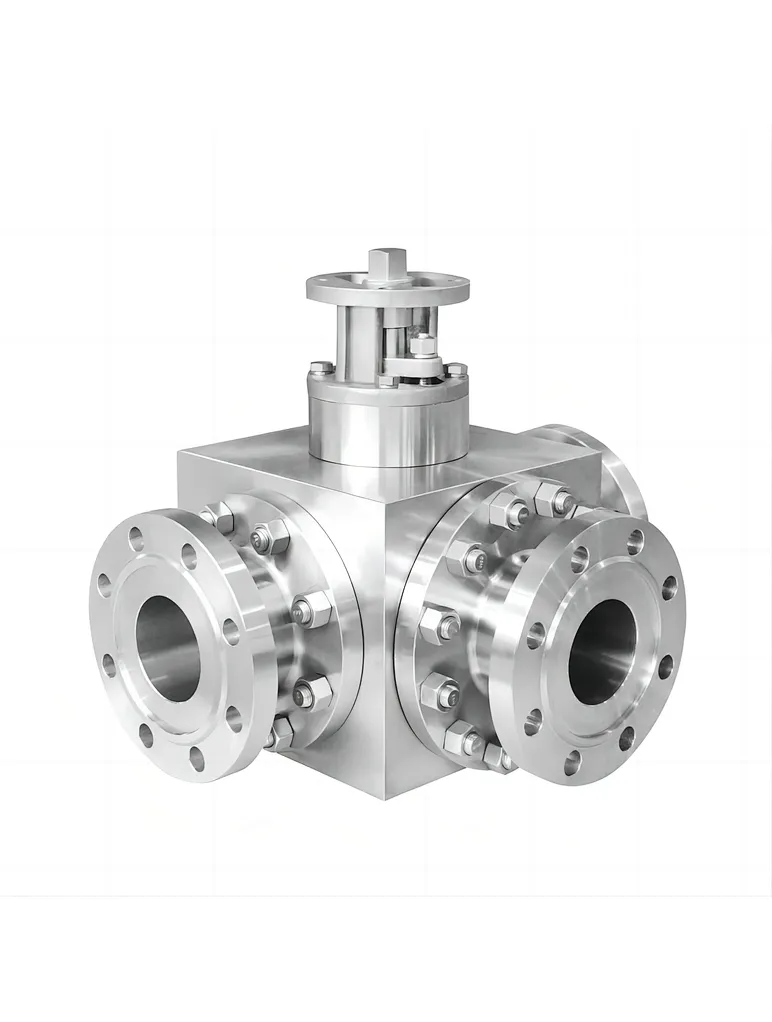

3 Ways Ball Valve
Sizes:1/2" ~ 8"
Nominal Ratings: ASME: 150LB ~ 300LB JIS: 10K ~ 20K,DIN: PN16 ~ PN40
Full Port With Locking Device
Ball Options : L Port / T Port
-way Screw End Ball Valve, Direct Mounting Type
ISO 5211 Pad for Direct Actuation
Body: CF8M/CF8/WCB
Seats: TFM 1600 / PTFE / R-PTFE
EndsASME B16.34 class 150、ASME B16.34 class 300
with real locking function
Nominal Ratings: ASME: 150LB ~ 300LB JIS: 10K ~ 20K,DIN: PN16 ~ PN40
Full Port With Locking Device
Ball Options : L Port / T Port
-way Screw End Ball Valve, Direct Mounting Type
ISO 5211 Pad for Direct Actuation
Body: CF8M/CF8/WCB
Seats: TFM 1600 / PTFE / R-PTFE
EndsASME B16.34 class 150、ASME B16.34 class 300
with real locking function
Quantity
Three Way Ball Valve
S J three way ball valve, distinguished by their ability to diverge or converge flows within a system, serve as critical components in a myriad of industrial applications. Each variant is meticulously engineered to fulfill specific operational requisites, ranging from precise flow regulation to efficient directional control.
FAQ:What Types of 3 way ball valve Are There?
There are two types of 3-way ball valves: L-Port and T-Port. An L-Port can send flow one way or the other or can shut it off completely. A T-Port will perform all the same flow tasks as an L-Port but cannot be shut off. In addition, the T-Port can mix flows by sending or receiving flow to/from both ways of the Tee. The"T"and"L"refer to the shape of the opening in the ball.
Which type of 3-way ball valve is best?
The best type of 3-way ball valve for your application depends on whether you need to close all ports at any stage of operation, or mix all three fluids. If the requirement is to completely close the valve, then you should choose an L-port. If a mix of all three streams is required, then you should choose a T-port.
How to use a T-port 3-way valve, but still shut off all flows?
In order to shut off all flows on a T-port 3-way valve, a separate valve must be added to the two opposite branches of the tee. In order to shut off the flow, both valves must be closed and the ball in the 3-way valve turned to the rear of the valve. A better solution is to install a 3-way piece with a single valve on each branch.
How to tell the flow direction of a 3-way ball valve
On a 3-way ball valve, there is a 3-way arrow indicator on the handle that mimics the cut portion of the ball inside the valve. By referring to this mark, you can determine in which direction the flow will flow through the valve.
On a 3-way ball valve, there is a 3-way arrow indicator on the handle that mimics the cut portion of the ball inside the valve. By referring to this mark, you can determine in which direction the flow will flow through the valve.
Why SJ?
Precision Mlachined Forged BodyThe forged body tliminates
the possibility of leakage due to poor castings.Predision
finish machining keeps tight tolerances to ensure secureassambly
for high prassure, criical apphcat ons.
Ball/Seat LappingLapping saats to tho ball ensures tght tolorancas,
iimpraving shut.oftsealing capability while lowering torque requiremenes.
