NPS 2"~56" , Class 150~2500, Double Eccentric C-Ball Valve Double Eccentric C-Ball Valve

NPS 2"~56" , Class 150~2500, Double Eccentric C-Ball Valve Double Eccentric C-Ball Valve

Model NO. Double Motorised ball valve

Body material: carbon steel, stainless steel, alloy steel
Nominal diameter: NPS 2"~56"
Pressure range: Class 150~2500
Working temperature:-46℃～560℃
Operation : Handle, Gear, Electric,Pneumatic

Quantity

Double Motorised ball valve

What is Double Motorised ball valve？

Double Motorised ball valve are similar in principle to traditional ball valves, but have a"C"shaped hemisphere. It is used to control the flow of fluid. These valves are equipped with electric actuators to open and close according to the requirements of the application. Compared with other solenoid ball valves, electric ball valves support high flow and are suitable for fast actions, including emergency shutdown and water hammer prevention.

●Energy-saving and environmental protection: The electric ball valve is driven by a motor, which consumes less energy and causes less pollution than traditional hydraulic or pneumatic drives.

●High degree of automation: The electric ball valve can be used in conjunction with automation control systems such as PLC and DCS to achieve automated control and improve production efficiency and product quality.

●Simple maintenance: The electric ball valve has a simple structure and few parts, making maintenance relatively simple.

●Wide range of application: The electric ball valve is suitable for various media, including high temperature, high pressure, corrosive media, etc.

●Reliable closing: The electric ball valve uses a ball as a closing element, which is reliable and has less leakage


Technical specification
Design reference		API	ASME	rOCT
Design standard		API6D	ASME B16.34	/
Structural length	Flanged ends	API6D	ASEM B16.10	/
	Welded connection
Flanged ends		ASME B16.5/ASME B16.47		rOCT 33259 rOCT 12815
Butt-welding ends		ASME B16.25
Test&inspection		API6D	API598	rOCT 9544
Notes:The sizes of valve connectingflange and butt-welding terminas can be designed according to customer's requirement.

DN50~DN1200 PN10~PN420
NPS2~NPS48 Class150~Class2500

Main material			Main material

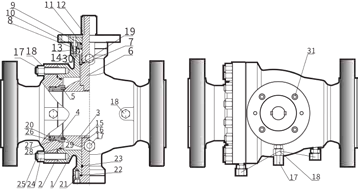

	Part Name	Main Material		Part Name	Main Material
1	Body	WCB,LCB,LCC,4A,CF8,CF3,CF3M,CF8M,G20Mn5,F51 A105,LF2,F304,F304L,F316,F316L,F321,F416,F440C, 17-4PH,Inconel,Monel,Alloy steel,Aluminium Bronze	16	Trunnion	410,LF2,F304,F304L,F316,F316L,F321,F416,F440C,F51, Inconel,Monel,Alloy steel,Aluminium Bronze
2	Cover		17	Drain plug	Component
3	Ball	A105,LF2,F304,F304L,F316,F316L,F321,F416,F440C,F51,In- conel,Monel,Alloy steel,Aluminium Bronze	18	Grease injection valve	Component
4	Seat Retainer	F51,Inconel,Monel,Alloy steel,Aluminium Bronze	19	Anti static device	IncX750
5	Seat Seal	PTFE,RPTFE,DEV,NLY,PPL,POM,PEEK,+STL,+TCC,+Ni60 410,LF2,F304,F304L,F316,F316L,F321,F416,F440C,F51, Inconel,Monel,Alloy steel,Aluminium Bronze	20	Spring	IncX750
6	Stem		21	Hexagon socket screw	B7,B7M,L7,L7M,Inconel,Monel,Alloy steel,Aluminium Bronze
7	Thrust Washer	PTFE	22	Spiral Wound Gasket	SS+Graphite
8	Pin	1035,410,F304,F316,F51	23	O Ring	HNBR,VITON,VITON AED,VITON GTL
9	Flexible graphite braided filler	Graphite	24	Nut	2H,2HM,7,7M,Inconel,Monel,Alloy steel,Aluminium Bronze
10	Spiral Wound Gasket	SS+Graphite	25	Stud	B7,B7M,L7,L7M,Inconel,Monel,Alloy steel,Aluminium Bronze
11	Connecting flange	A105,LF2,F304,F304L,F316,F316L,F321,F416,F440C,F51,In- conel,Monel,Alloy steel,Aluminium Bronze	26	Flexible graphite braided filler	Graphite
12	key	1035	27	O Ring	HNBR,VITON,VITON AED,VITONGTL
13	O Ring	HNBR,VITON,VITON AED,VITON GTL	28	O Ring	HNBR,VITON,VITON AED,VITON GTL
14	Hexagon socket screw	B7,B7M,L7,L7M,Inconel,Monel,Alloy steel,Aluminium Bronze	29 30	Spiral Wound Gasket	SS+Graphite
15	Bearing	F304+PTFE,F316+PTFE,F51+PTFE	29 30	O Ring	HNBR,VITON,VITON AED,VITON GTL
			31	Hexagon socket screw	B7,B7M,L7,L7M,Inconel,Monel,Alloy steel,Aluminium Bronze
Notes:Major parts of the valve series and materials of sealing surface differ according to actual working condition and customer's special requirement.

Full bore Reduced-bore Worm Gearoperation

Double Motorised ball valve
Full bore
Nominal Size		D		L		H		W		Weight
in	mm	in	mm	in	mm	in	mm	in	mm	Lb	kg
2	50	2	49	7.0	178	6.5	165	9.06	230	37.5	17
3	80	3	74	8.0	203	7.6	193	15.75	400	72.8	33
4	100	4	100	9.0	229	9.09	231	18.11	460	110.2	50
6	150	5.91	150	15.5	394	12.95	329	39.37	1000	205.0	93
8	200	7.91	201	18.0	457	15.47	393	19.69	500*	366.0	166
10	250	9.92	252	21.0	533	15.79	401	19.69	500*	601.9	273
12	300	11.93	303	24.0	610	17.36	441	19.69	500*	1047.2	475
14	350	13.15	334	27.0	686	18.94	481	19.69	500*	1256.6	570
16	400	15.16	385	30.0	762	23.54	598	19.69	500*	1715.2	778
18	450	17.16	436	34.0	864	25.31	643	19.69	500*	2061.3	935
20	500	19.17	487	36.0	914	27.87	708	23.62	600*	2623.5	1190
22	550	21.18	538	40.0	1016	31.42	798	23.62	600*	2967.4	1346
24	600	23.19	589	42.0	1067	33.98	863	23.62	600*	3481.0	1579

Reduced- bore
Nominal Size		d		D		L		H		W		Weight
in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	Lb	Kg
3*2	80*50	2	49	2.99	76	8	203	7.6	193	9.06	230	66.1	30
4*3	100*80	3	74	4.02	102	9	229	9.09	231	15.75	400	103.6	47
6*4	150*100	4	100	5.98	152	15.5	394	12.95	329	18.11	460	198.4	90
8*6	200*150	5.91	150	7.99	203	18	457	15.47	393	39.37	1000	354.9	161
10*8	250*200	7.91	201	10.00	254	21	533	15.79	404	19.69	500*	590.8	288
12*10	300*250	9.92	252	12.01	305	24	610	17.36	441	19.69	500*	1029.5	467
14*10	350*300	11.93	303	13.27	337	27	686	18.94	481	19.69	500*	1234.6	500
16*12	400*350	13.15	334	15.24	387	30	762	31.42	598	19.69	500*	1688.7	766
18*14	450*400	15.16	385	17.24	438	34	864	25.31	643	19.69	500*	1988.5	902
20*16	500*450	17.16	436	19.25	489	36	914	27.87	708	19.69	500*	2491.2	1130
22*18	550*500	19.17	487	21.26	540	40	1016	31.42	798	23.62	600*	2866.0	1300
24*20	600*550	21.18	538	23.27	591	42	1067	33.98	863	23.62	600*	3351.0	1520
Note: The sizes in the table are stipulated by API standards. For other standard sizes, please contact our sales staf

"The above parameters are based on Class 150 - 1.6~2.5 MPa and are for reference only. For detailed information, please consult the technical team."

The function of double motorised ball valve

Q: What is the main function of a double motorised ball valve in pipeline systems?

A: The double motorised ball valve is equipped with two independent electric actuators to realise remote switch control and emergency cut‑off functions.It adopts double‑actuator driving structure to control the opening and closing action of the ball, which can realise normal on‑off operation and quick emergency isolation of the pipeline. It can realise position interlock and signal feedback, and monitor the valve working state in real time to ensure the stable operation of the pipeline.

Conclusion: Therefore, the main function of the double motorised ball valve is to realise remote automatic control and emergency safe isolation of the pipeline, providing reliable fluid switching and safety protection for industrial piping systems.

The principle of using double motorised ball valve

Q: What is the working principle of a Double Motorised Ball Valve?

A: Its operation is based on the 90‑degree rotation of the ball driven by double electric actuators. Two actuators can work cooperatively or independently. When receiving the control signal, the actuators output torque to drive the ball to rotate 90 degrees to complete opening or closing. The double‑actuator structure can realise redundant driving. When one actuator fails, the other can still complete the valve action. It feeds back the valve on‑off position signal to the control system at the same time.

Conclusion: Therefore, the operating principle of the double motorised ball valve relies on dual electric actuators to drive ball rotation, achieving automatic fluid switch with redundant drive and position signal feedback for safe and stable pipeline control.

The operating conditions and advantages of double motorised ball valve

Q: What are the common applications and key advantages of double motorised ball valves?

A: This valve is widely used in industrial environments such as oil, gas, chemical, power plant and water treatment industries. It is suitable for pipeline systems requiring high‑reliability remote control, emergency cut‑off and interlock protection. Its key advantages include:

-Redundant Safety Performance: Dual‑actuator redundant drive reduces the risk of valve failure and improves system safety.

-Remote Automatic Control: Supports remote signal control and real‑time position feedback, convenient for centralised system management.

-Emergency Quick Cut‑off: Can rapidly complete valve closing under emergency conditions to cut off medium flow.

-High Reliability: Robust valve body construction adapts to harsh working conditions for long‑term stable service.

-Interlock Compatibility: Easy to connect with DCS and PLC control systems to realise complex process interlock logic.

Conclusion: Therefore, the double motorised ball valve provides a high‑reliability automatic fluid control solution for demanding operating conditions. With advantages such as redundant safety, remote control and emergency shut‑off capability, it is a vital control component for critical industrial pipeline systems.As a leading industrial valve manufacturer, SJ is proud to offer its high‑performance double motorised ball valve solutions, specifically engineered for critical remote control and emergency isolation in oil, gas, and chemical applications. Our double motorised ball valve features an advanced redundant dual‑actuator design fitted on one ball valve body, significantly improving actuation reliability compared to traditional single‑actuator ball valves. This specialised double motorised ball valve ensures stable on‑off operation and reliable emergency cut‑off, allowing operators to remotely control pipeline media without on‑site manual operation. With rugged construction in materials like WCB carbon steel and adherence to strict international standards, SJ delivers the safety, efficiency, and durability your process lines demand。
