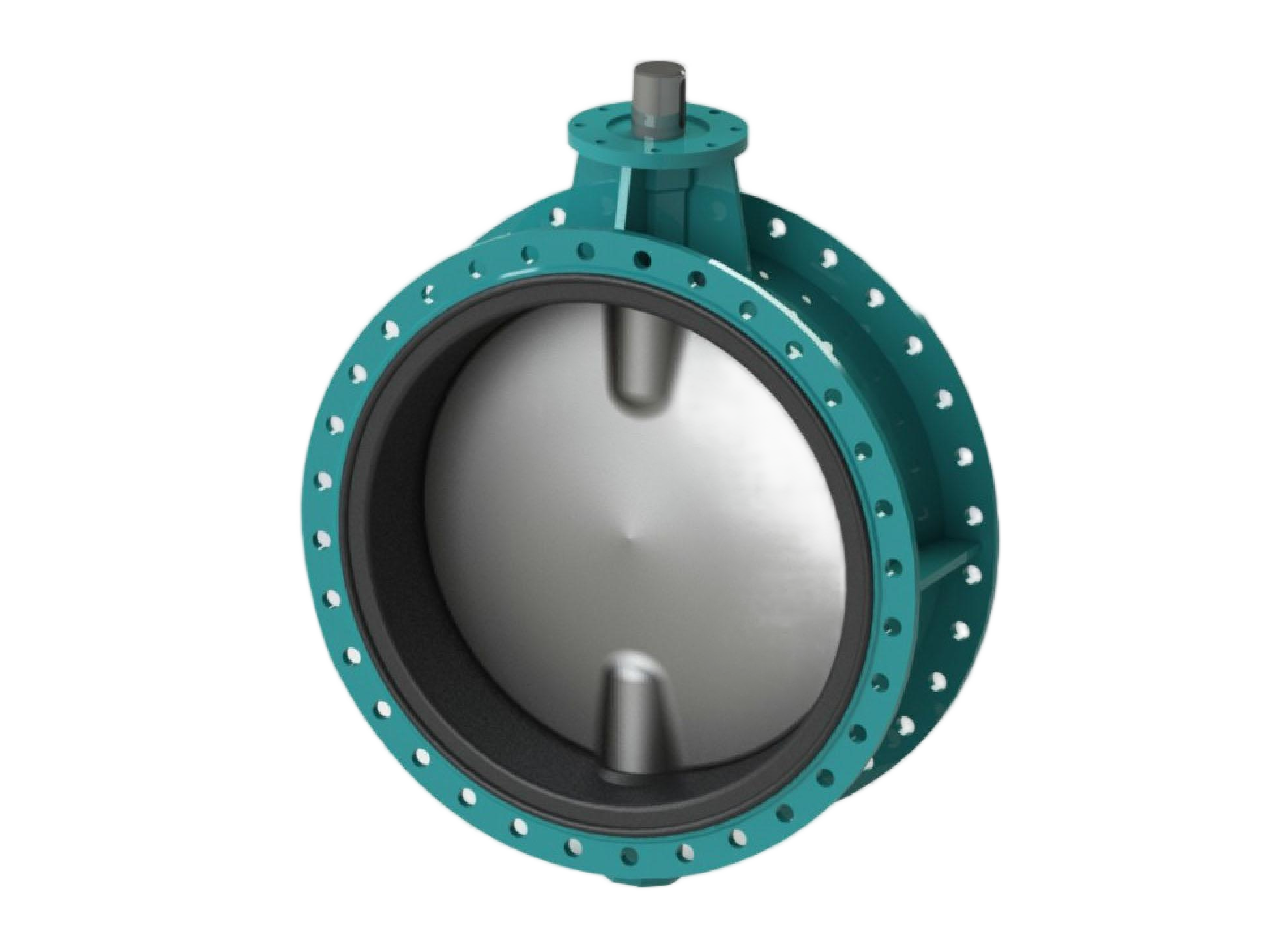

Double Flanged Butterfly Valve

Model NO. D41X Butterfly valve series

D41X Butterfly valve series
Model NO.
D41X
Size Range DN50~DN2200
Nominal Pressure 16bar
Suitable Temperature -20~100°C
Suitable Medium Water, sea water, gas and other non‑corrosive medium
Design Standard: GB/T 12238
Face‑to‑Face: GB/T 12221
Connection Size: PN10/PN16/CLASS150
Pressure Testing: GB/T 13927

Quantity

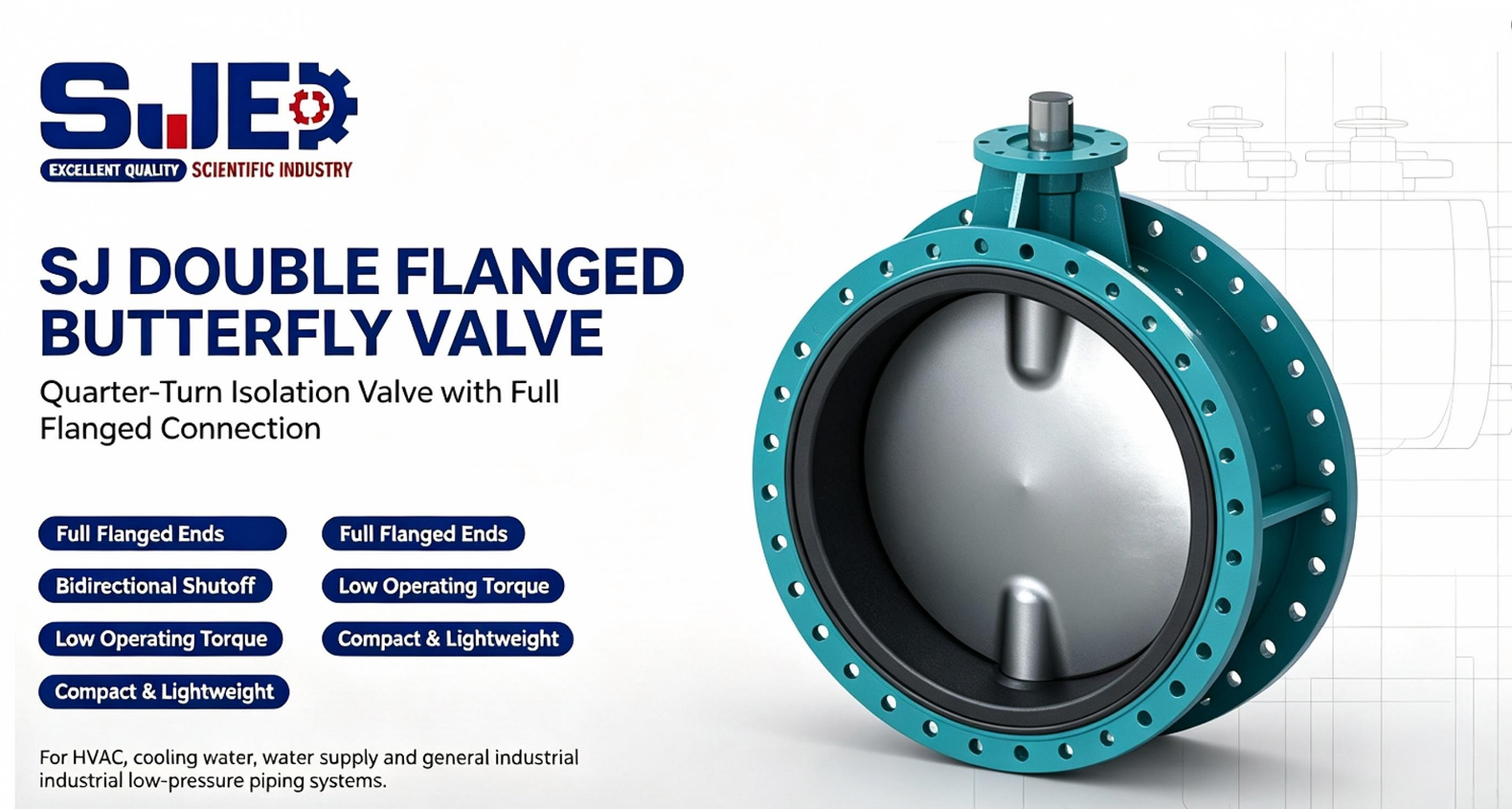

Double Flanged Butterfly Valve of SJ

Functions and Uses

Concentric Flanged butterfly valve is used for pipeline water supply and drainage,gas pipeline regulated flow andclosed the medium.As long as the rotation of 90°,you can close quickly,and operate easily.In the cylindrical channelof the valve body,the disc rotates around the axis,and the rotation angle is between 0°~90°.When it rotates to 90°,the valve is fully open.

Technical parameters
Medium/working condition Main Parts	Can be used in water supply and drainage,central air conditioning,heating,sewage, chemical industry,paper making,Marine,food industry,etc
Body	Ductile iron/WCB/SS.,etc.
Disc	SS/DSS/Copper Alloy
Seat	NBR	EPDM	VITON
Suitable temperature	-20℃~80℃	-20℃~100℃	-10℃~180℃

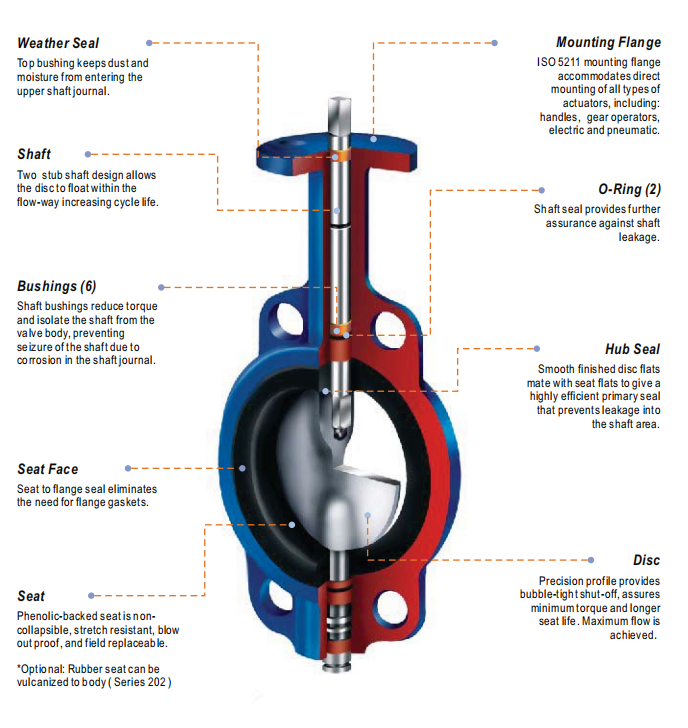

Main Parts and Materials:

Part name

Material

Part name

Material

Body

GGG40

Seat

EPDM/NBR

Disc

GGG40/CF8/CF8M

Gland bush

PTFE/Copper

Shaft

SS420

O ring

NBR

Recommend Products

Message Content

Country

Fax

WS&BOTIM

Company Name

Name

Pressure Range

Material Grades

End Connections

Operation

Size Range

File

You can only upload 1 attachments at most
Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
The size of the uploaded file should not exceed 10MB

SEND INOUIRY >

Talk To Our Team

Have a question for our team? Get in touch with the details below.

BOTIM

+39 389 949 9067

PHONE

+39 389 949 9067

andant@sanjingvalve.com

+39 389 949 9067

CONTACT INFORMATION

WORKING HOURS

Sitemap

Contact Us

Head Office Address: Viale del Lavoro.19,20003 Casorezzo Ml. ltaly Testing zone 1 Address:Via S. Giovanni Bosco S.n.c.70020 – Poggiorsini (BA) – ITALY

EMAlL: andant@sanjingvalve.com
PHONE: +39 389 949 9067
WHATSAPP:+39 389 949 9067

Branch Office Address:Dongou Industrial Zone, Oubei Street, Yongjia Wenzhou City, Zhejiang Province China Testing zone 2 Address:No. 205, Linwu Road, Sanqiao Industrial Zone

What exactly is the relationship between SANJING Valve Company and S J Valvole S.R.L.?

SJ Valvole S.R.L. is an Italian-registered entity holding multiple European OEM brand authorizations, utilizing shared local facilities for valve manufacturing, testing, and dispatch. SANJING Valve Co. operates as a wholly owned subsidiary of S J Valvole S.R.L., serving as its primary manufacturing hub with licensed processing rights under European brand authorizations.

Strategic Synergy & Operational Purpose

The operational alignment between SANJING Valve Co. and S J Valvole S.R.L. is strategically structured to meet global trading requirements:

Pricing & Cost Efficiency: Optimizes tariff structures and local production costs to maintain competitive global pricing.

Supply Chain & Lead Times: Streamlines manufacturing schedules to meet strict delivery deadlines across international markets.

Compliance & Documentation: Facilitates tailored Certificates of Origin (COO) to fulfill regional import regulations and trade agreements.

Global Agency Agreements: Supports international distribution networks and global strategic partnership frameworks.

Data size:

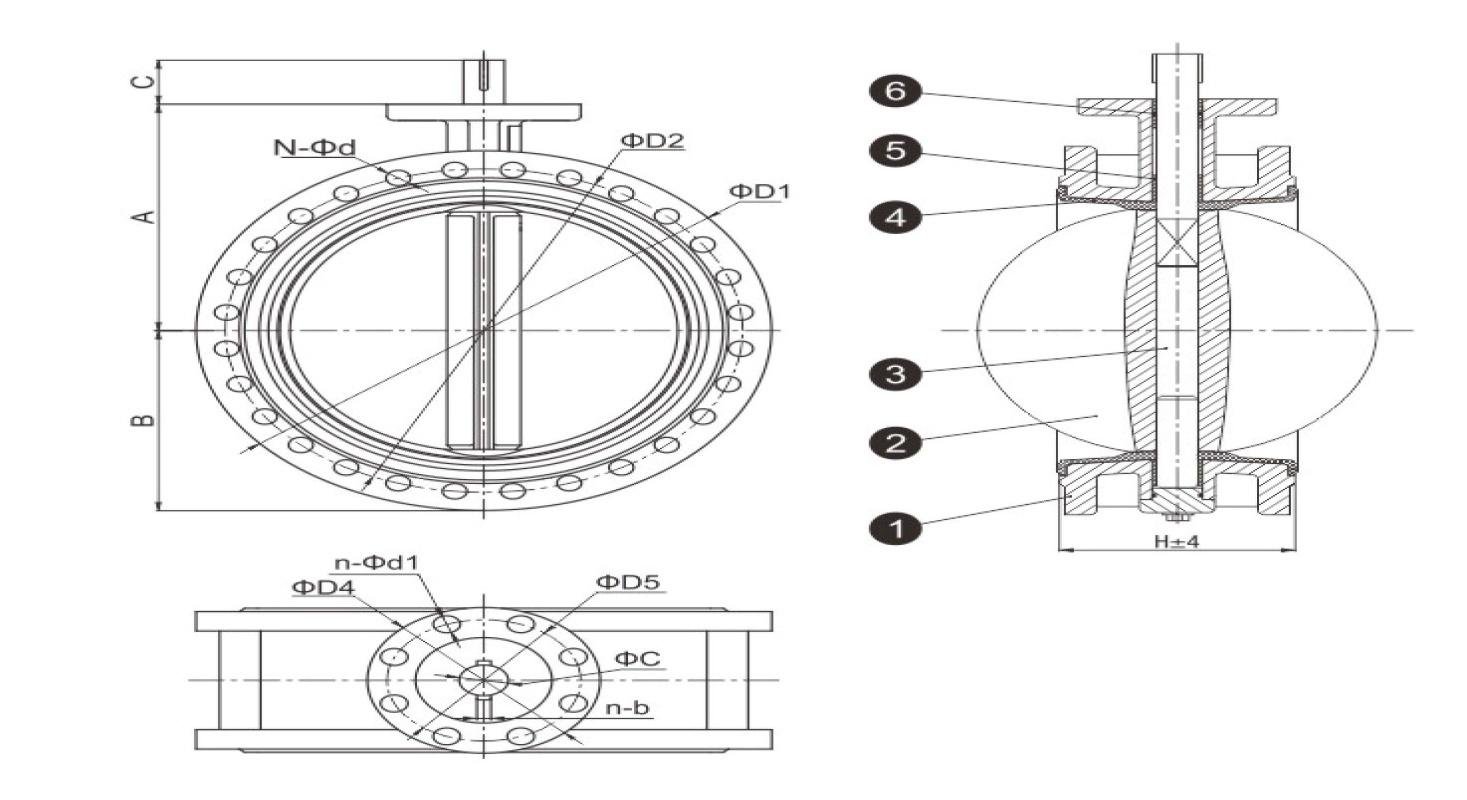

mm							PN10			PN16			150LB			ISO 5211
