pneumatic rotary actuator Pneumatic Actuator
pneumatic rotary actuator Pneumatic Actuator
Temperature Range:
Standard: -20~80°C(-4°F to 176°F)
High: -20~+150°C(-4°F to 302°F)
Low: -40~+80°C(-40°F to 176°F)
Ultra Low:-60~+80°C(-76°F to 176°F)
Type selection: Single acting
Air supply: Minimum 4 Bar/Psi, Maximum 6 bar/Psi

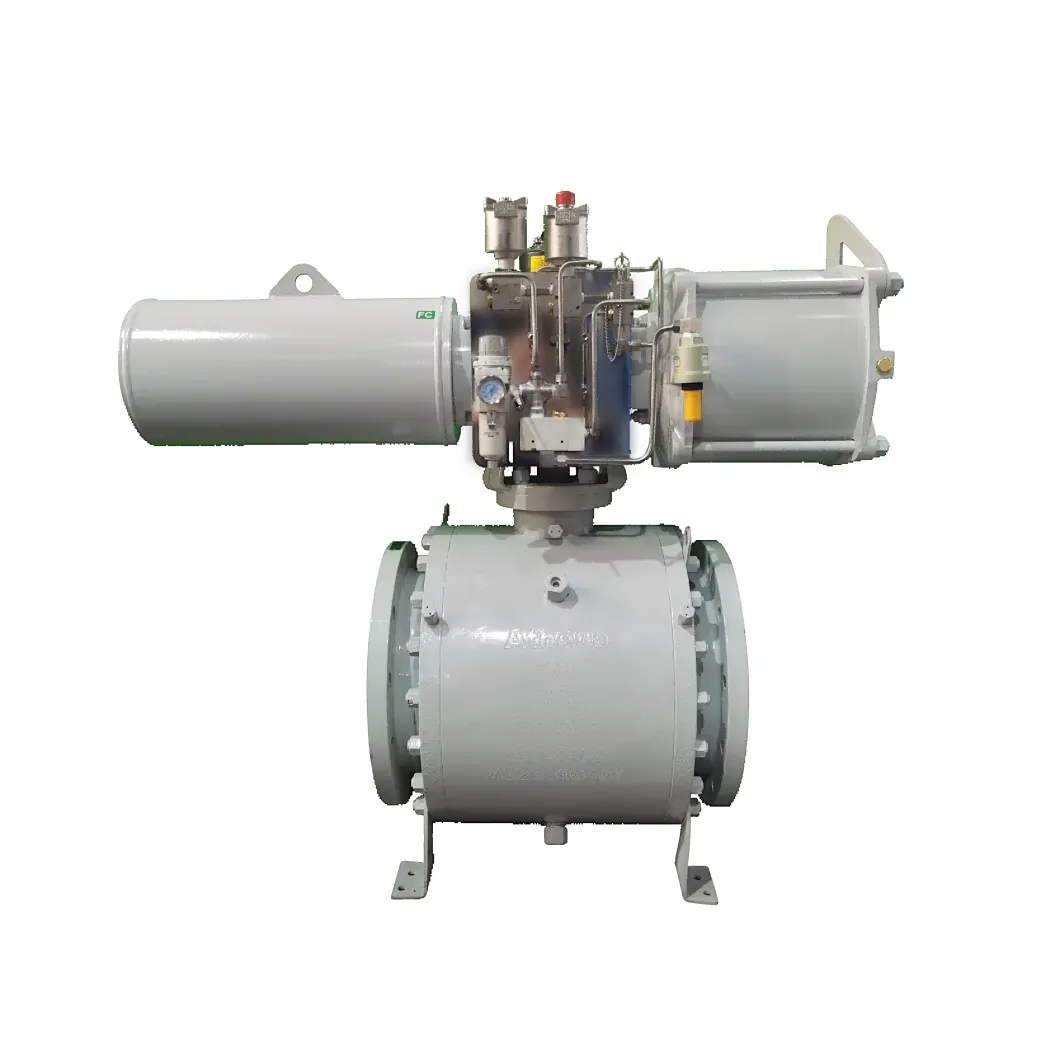

Valen Tech has specifically engineered Quick-Closing single acting actuators with SIL3 certified integral high flow pneumatic quick exhaust dump valve to trip valves up to 1 second, avoiding damages to valve drive train.
What is a Pneumatic Actuator Valve?
Pneumatic actuator is an automated driving device that uses compressed air as a power source. It uses air pressure to push the internal piston, diaphragm or gear mechanism, converting it into linear or rotational mechanical motion, thereby controlling the opening, closing or adjustment of valves (such as ball valves and butterfly valves). Its core features are simple structure, rapid response, explosion-proof safety (no need for electricity), and can work through single acting (spring reset) or double acting (bidirectional pneumatic) mode, widely used in process control systems in industries such as petroleum, chemical, and power.
What is the working principle of pneumatic actuator ?
The working principle of pneumatic actuators is to drive internal pistons, diaphragms, or gear mechanisms with compressed air, converting pneumatic energy into mechanical motion. When compressed air enters the actuator chamber, it drives the piston to move in a straight line or the gear to rotate, thereby driving the valve stem to move and achieve the functions of opening, closing, or adjusting. The single acting type relies on spring reset, while the double acting type achieves bidirectional drive through alternating air intake.
Pneumatic Actuator Technical Parameters:
Stroke:90°
Temperature Range:
Standard:-20~80°C(-4°F to 176°F)
High:-20~+150°C(-4°F to 302°F)
Low:-40~+80°C(-40°F to 176°F)Ultra Low:-60~+80°C(-76°F to 176°F)
Type selection: Single acting
Air supply: Minimum 4Bar/Psi, Maximum 6bar/Psi
Accessries Solution: Filter/ Regulater/Gauge, Solenoid valves, Limit switch boxes,
Positioners, Air Operated Valve, Handwheel,etc
Protection Function option: Weather proof, Corresion Resistance, Fire safety
