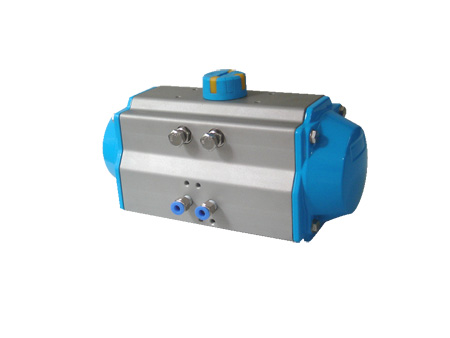

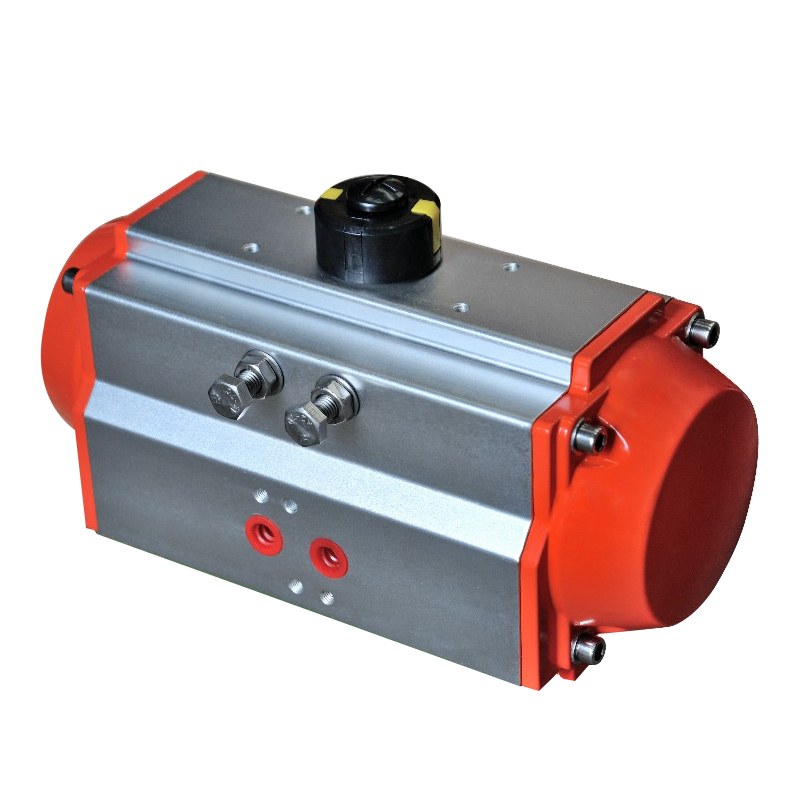

Pinion Pneumatic rotary actuator
Pinion Pneumatic rotary actuator
VTA
Complies with international specifications: EN15714.3, ISO 5211, DIN 3337，VDl/VDE 3845 and NAMUR standards.
Temperature: -20°C-80°C (standard type)
Air source pressure: 5 bar (default)
Rack and Pinion actuators often represents the cheapest solution for rotary small dimension valves or valves that need a constant torque during the entire stroke.
Temperature: -20°C-80°C (standard type)
Air source pressure: 5 bar (default)
Rack and Pinion actuators often represents the cheapest solution for rotary small dimension valves or valves that need a constant torque during the entire stroke.
Quantity
What is a Rotary Pneumatic Actuator?
A rotary actuator is a driving device that converts energy (such as pneumatic, hydraulic, or electrical energy) into rotational motion, used to control the angle, speed, or torque of equipment such as valves, robotic arms, or turntables. Its core feature is that the output shaft can rotate partially or continuously, rather than moving in a straight line.
What is the difference between linear and rotary pneumatic actuators?
Linear pneumatic actuators drive pistons to perform linear reciprocating motion through compressed air, suitable for applications that require push-pull action (such as clamping, lifting); Rotary pneumatic actuators convert air pressure into rotational torque, achieving 90 °, 180 ° or continuous rotational motion, mainly used for valve opening and closing (such as ball valves, butterfly valves) or angle adjustment. The core difference between the two lies in the output motion form (linear vs rotational) and the internal transmission structure (piston rod vs gear/blade mechanism).
Rotary Pneumatic Actuator Parameters：
Operating Environment Temperature
Standard type:-20℃-80℃
Low-temperature type:-40℃-80℃
Ultra-low-temperature type:-60℃-80℃
High-temperature type:-20℃-160℃
Air Source Pressure
3 bar，4 bar，5 bar，6 bar，10 bar
