SJ Angle Globe Valve: Striving for Excellence, Creating Outstanding Quality

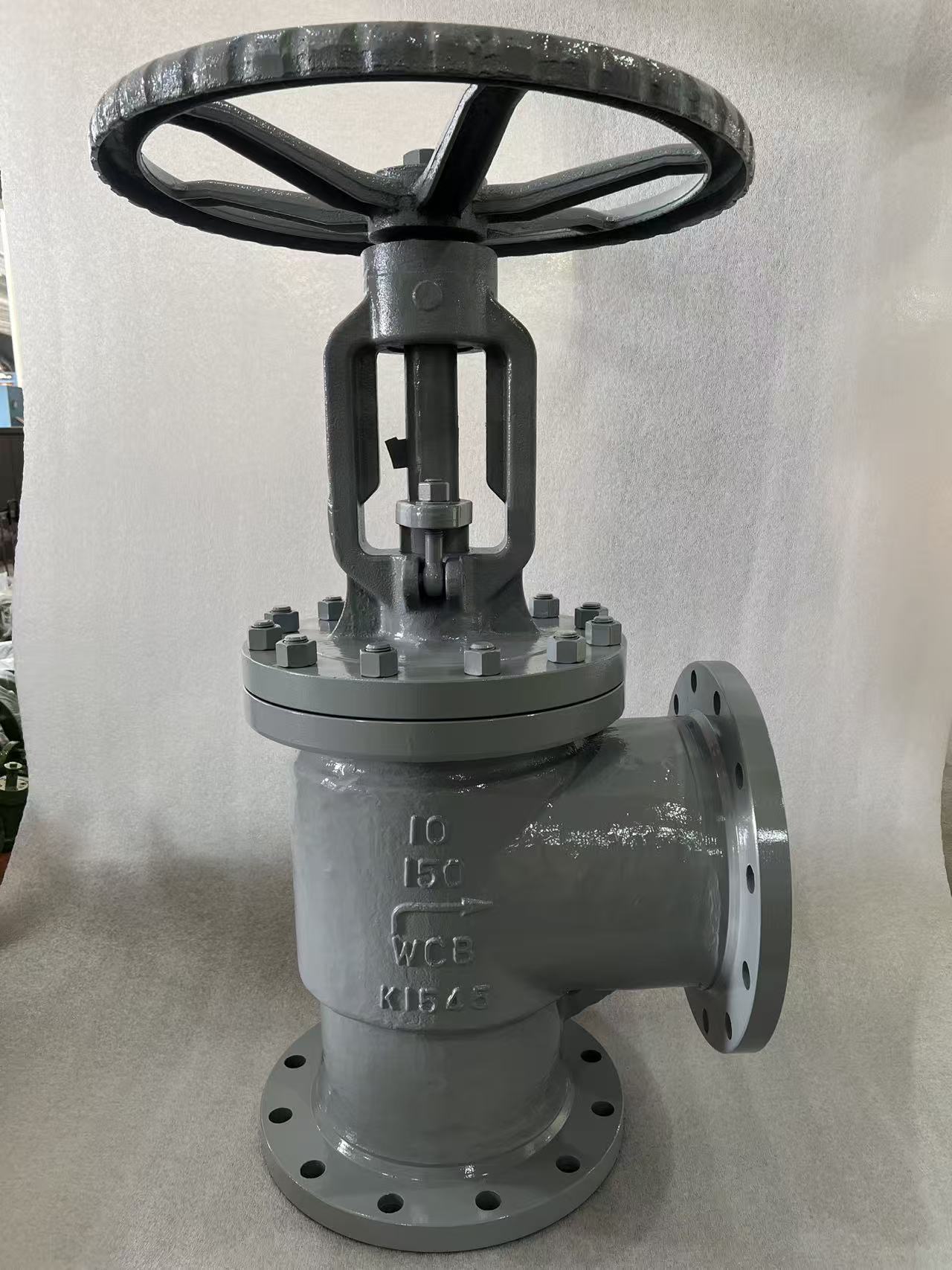

What is an angle globe valve?
Angle globe valve is a special type of globe valve, and its most prominent feature is that the flow channel inside the valve body is at a right angle (usually 90 degrees). Unlike traditional straight through globe valves, the inlet and outlet flanges of angle globe valves are located on two mutually perpendicular surfaces of the valve body. This unique L-shaped or Z-shaped structural design not only makes its installation in pipeline systems more compact, but also reduces the need for additional elbow fittings and simplifies pipeline layout because it can simultaneously change flow direction and regulate flow rate.
Working principle
The core working principle of angle globe valve is similar to that of ordinary globe valve, but its fluid path is different. The workflow can be summarized as follows:
1. Valve core movement: The handwheel or actuator at the top of the valve drives the valve core to move up and down through the valve stem.
The core working principle of angle globe valve is similar to that of ordinary globe valve, but its fluid path is different. The workflow can be summarized as follows:
1. Valve core movement: The handwheel or actuator at the top of the valve drives the valve core to move up and down through the valve stem.
2. Opening, closing, and adjustment:
-When the valve core is lifted upwards, the gap between it and the valve seat increases, allowing fluid to pass through smoothly.
-When the valve core is pressed downwards, it forms a tight seal with the valve seat, completely cutting off the fluid passage.
-During the entire movement of the valve core, the fluid flow rate can be precisely adjusted by controlling its position, achieving precise control of the flow rate.
3 Flow direction change: After fluid enters the valve from one inlet, its flow direction will be guided by the right angle channel inside the valve body and flow out from another vertical outlet. This process can effectively reduce the resistance generated by the fluid at the bend, reduce pressure loss, and improve the fluid efficiency of the system.
SJ angle globe valve product testing
A batch of high-quality angle globe valves from SJ have successfully passed strict coating thickness testing, adding solid strength to the field of industrial fluid control. This inspection is not only a strict control of product quality, but also a powerful practice of customer commitment, demonstrating the manufacturer's unremitting efforts in pursuing excellent quality. This angle globe valve has achieved a high level of control over the coating process during the manufacturing process. The technicians used advanced coating thickness detection technology to conduct a comprehensive and detailed inspection of the valve surface. Through multi-point measurement, the coating is ensured to cover uniformly and achieve the desired protective thickness, providing a solid guarantee for the corrosion resistance and long-term stable operation of the valve. The application of this technology not only reflects our ultimate pursuit of product quality, but also demonstrates the company's strong strength in technological innovation and process improvement.
A batch of high-quality angle globe valves from SJ have successfully passed strict coating thickness testing, adding solid strength to the field of industrial fluid control. This inspection is not only a strict control of product quality, but also a powerful practice of customer commitment, demonstrating the manufacturer's unremitting efforts in pursuing excellent quality. This angle globe valve has achieved a high level of control over the coating process during the manufacturing process. The technicians used advanced coating thickness detection technology to conduct a comprehensive and detailed inspection of the valve surface. Through multi-point measurement, the coating is ensured to cover uniformly and achieve the desired protective thickness, providing a solid guarantee for the corrosion resistance and long-term stable operation of the valve. The application of this technology not only reflects our ultimate pursuit of product quality, but also demonstrates the company's strong strength in technological innovation and process improvement.
In terms of design, this angle type globe valve fully considers the actual needs and operating habits of users. Its unique angular structure reduces fluid resistance and enhances flow capacity when passing through, making it easy to cope with various complex working conditions such as high pressure and high temperature. At the same time, the handwheel design of the valve is clever and conforms to ergonomic principles, making it easy and flexible to operate, greatly reducing the labor intensity of operators and improving work efficiency.
In addition to its design advantages, this angle globe valve also performs well in terms of sealing performance. We have adopted advanced sealing technology and high-quality materials to ensure that the valve can achieve zero leakage in the closed state, effectively preventing the loss and pollution of the medium, and ensuring the safe and stable operation of the system.
In the manufacturing process, we always adhere to the attitude of striving for excellence and strictly implement international quality management system standards. From careful selection of raw materials to strict testing of finished products, every process has gone through layers of checks to ensure that every product meets high quality requirements. In addition, we have conducted multiple performance tests and practical application validations on the finished product to ensure its stable performance under various harsh working conditions.
