SJ company reveals how water pumps and safety valves work together to build a strong industrial safety defense line
2025-12-05
SJ company reveals how water pumps and safety valves work together to build a strong industrial safety defense line
SJ company reveals how water pumps and safety valves work together to build a strong industrial safety defense line
Q: How to achieve a perfect balance between efficiency and safety in modern industrial fluid systems?
A: Through intelligent linkage and cooperation between safety valves and water pumps. SJ company believes that high-performance water pumps provide stable and reliable power output, while precise safety valves serve as the final safety barrier. The two work together to ensure efficient system operation and personnel and equipment safety.
A: Through intelligent linkage and cooperation between safety valves and water pumps. SJ company believes that high-performance water pumps provide stable and reliable power output, while precise safety valves serve as the final safety barrier. The two work together to ensure efficient system operation and personnel and equipment safety.
Why is it said that the water pump is the "power core"
and the safety valve is the "door to life"?
Water pumps and safety valves play an irreplaceable role in fluid systems, but their functions and focuses are completely different, forming a perfect complementary relationship.
- Pump: responsible for lifting, transporting, or pressurizing fluids, it is the energy source and executor of the system. Its performance directly determines the flow rate, head, and work efficiency of the system.

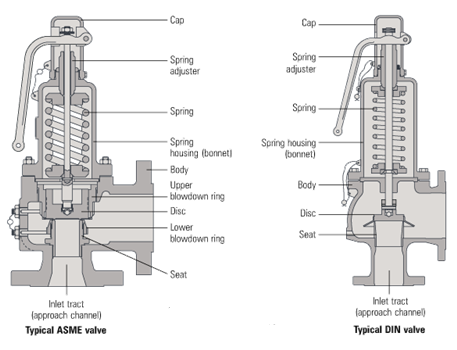

- Safety Valve: An automatic pressure relief device that quickly opens the discharge medium when the system pressure exceeds a predetermined value, preventing further pressure rise and protecting pipelines, containers, and equipment from damage. It is the ultimate guardian of the system.
|
trait |
Water pump (power core) |
Safety valve (door of life) |
|
Main work can |
Provide and maintain the energy and pressure of system fluid. |
Monitor and control the maximum allowable pressure of system fluid. |
|
Working form form |
Work continuously under normal working conditions to provide power. |
Keep it closed under normal working conditions and stand by for protection. |
|
Influence finger mark |
Flow,lift,efficiency and energy consumption. |
Set the pressure,discharge capacity,sealing and opening sensitivity. |
|
Cooperative purpose mark |
Ensure that the system runs in an efficient and ideal working condition. |
Ensure that the system operates within the safe upper pressure limit. |
How to achieve "intelligent collaboration"
between safety valves and water pumps?
The collaboration between the two does not exist in isolation, but is reflected in the design and operational logic of the entire system:
- Dynamic pressure control: The water pump starts and supplies energy to the system. If the pressure at the outlet of the water pump suddenly surges due to a sudden change in downstream load or malfunction (such as pipeline blockage or valve misoperation), the safety valve must respond immediately.
- SJ recommends using water pumps with overload protection function, in conjunction with high response speed safety valves. When the pressure approaches the set value of the safety valve, the control system of the water pump can perform speed reduction or frequency conversion adjustment in advance to reduce the frequent or large-scale opening of the safety valve and extend the service life of the equipment.
- Shutdown and restart protection: During emergency shutdown or restart of the water pump, the system may experience water hammer effects or instantaneous pressure fluctuations. The safety valve must have reliable sealing to ensure rapid reseating after normal pressure recovery and effective pressure relief under extreme high pressure.
- Equipment selection balance: When designing, engineers must ensure that the displacement of the safety valve is greater than the maximum possible output of the water pump. This is the most basic safety principle in collaboration, ensuring that even if the water pump is operating at maximum load, the safety valve can promptly discharge excess pressure, achieving the "ultimate balance" of the output pressure of the water pump.
How to choose safety valves and water pumps to achieve maximum benefits?
To ensure the highest efficiency and security level of the system, the following key pairing principles must be followed:
1. Pressure matching principle (Safety First):
The set pressure of the safety valve must be less than the maximum allowable working pressure (MAWP) of the protected equipment.
At the same time, this set pressure should be slightly higher than the maximum normal working pressure of the water pump to prevent the safety valve from malfunctioning during normal system fluctuations.
2. Principle of Capacity Margin:
The rated displacement of the safety valve must be greater than or equal to the maximum heat or pressure that the pump can generate at its maximum output flow rate under any possible operating conditions, including no-load operation or when the outlet is completely closed. The safety factor is usually required to be greater than 1.1.
3. Material compatibility principle (Media Compatibility):
The material of the overcurrent components of the water pump and safety valve must have good corrosion resistance to the conveying medium (such as water, chemicals, etc.), ensuring that the material performance will not deteriorate during long-term operation and emergency pressure relief.
4. Efficiency&Response Balance:
For variable frequency drive (VFD) water pump systems, pilot operated safety valves or valves with fast response characteristics should be selected. This type of valve can better match the dynamic speed regulation capability of the water pump, reduce system pressure lag and overshoot, and achieve higher operating energy efficiency.
1. Pressure matching principle (Safety First):
The set pressure of the safety valve must be less than the maximum allowable working pressure (MAWP) of the protected equipment.
At the same time, this set pressure should be slightly higher than the maximum normal working pressure of the water pump to prevent the safety valve from malfunctioning during normal system fluctuations.
2. Principle of Capacity Margin:
The rated displacement of the safety valve must be greater than or equal to the maximum heat or pressure that the pump can generate at its maximum output flow rate under any possible operating conditions, including no-load operation or when the outlet is completely closed. The safety factor is usually required to be greater than 1.1.
3. Material compatibility principle (Media Compatibility):
The material of the overcurrent components of the water pump and safety valve must have good corrosion resistance to the conveying medium (such as water, chemicals, etc.), ensuring that the material performance will not deteriorate during long-term operation and emergency pressure relief.
4. Efficiency&Response Balance:
For variable frequency drive (VFD) water pump systems, pilot operated safety valves or valves with fast response characteristics should be selected. This type of valve can better match the dynamic speed regulation capability of the water pump, reduce system pressure lag and overshoot, and achieve higher operating energy efficiency.
Conclusion
SJ is well aware that industrial customers require not only independent high-efficiency water pumps or qualified safety valves, but also a collaborative, reliable, and trustworthy fluid control solution. We are committed to providing our customers with a system that meets both production requirements and international safety standards.
SJ company believes that safety and efficiency are the "twin engines" of industrial operation, and the synergy between water pumps and safety valves is the key to starting these two engines.
SJ company believes that safety and efficiency are the "twin engines" of industrial operation, and the synergy between water pumps and safety valves is the key to starting these two engines.
