SJ Explains The Core Technology Of Check Valves In Detail
2025-12-17
SJ Explains The Core Technology Of Check Valves In Detail
SJ Explains The Core Technology Of Check Valves In Detail
- What is a check valve
- What is the working principle of the NVR valve
- What are the types of check valves
- What are the characteristics of NVR valves?
Q1 What is a check valve?
Check valves are an important component of one-way fluid systems. These valves are sometimes referred to as reflux valves, retention valves, bottom valves, one-way valves, check valves, or simply NRVs, designed to prevent backflow - otherwise backflow may damage or contaminate equipment. Check valve is a common type of valve widely used in various fields, from household pipeline systems to large industrial equipment.
Check valves are an important component of one-way fluid systems. These valves are sometimes referred to as reflux valves, retention valves, bottom valves, one-way valves, check valves, or simply NRVs, designed to prevent backflow - otherwise backflow may damage or contaminate equipment. Check valve is a common type of valve widely used in various fields, from household pipeline systems to large industrial equipment.

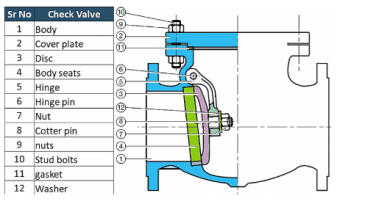

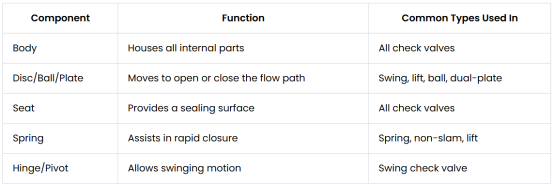

Although the designs of check valves vary, their key components remain unchanged:
a. The valve body is the main structure and contains various components inside.
b. The internal mechanism is usually composed of disks, spheres, hinges, and baffles, which allow or prevent fluid flow according to direction.
C. The sealing ring is connected to the internal mechanism to prevent leakage when the valve is in the closed position.
a. The valve body is the main structure and contains various components inside.
b. The internal mechanism is usually composed of disks, spheres, hinges, and baffles, which allow or prevent fluid flow according to direction.
C. The sealing ring is connected to the internal mechanism to prevent leakage when the valve is in the closed position.
SJ Valve is well aware of the importance of check valves in one-way fluid systems. As a professional manufacturer in this field, we are committed to providing high-quality check valve solutions. Our check valve design is unique and can effectively prevent fluid backflow, thereby protecting equipment from damage or contamination. Whether in household pipeline systems or large industrial equipment, SJ Valve's check valves ensure stable operation of the system. Our products come in various design forms and use high-quality core components such as valve bodies, discs, and spheres to ensure that each check valve has good sealing performance when closed, avoiding any leakage and meeting the needs of different customers.
Q2 What is the working principle of the NVR valve?
The working principle of NVR valves is very simple. When fluid flows, the valve disc inside the valve will be pushed open by the pressure of the fluid, allowing the fluid to flow freely in one direction. When the fluid flows in the opposite direction, the valve disc will automatically close due to changes in fluid pressure, thereby preventing fluid backflow. The NVR valve ensures one-way fluid flow through this automatic closing mechanism.
SJ Valve is committed to providing efficient fluid control solutions. Our NVR valve adopts a precise automatic sensing mechanism: when the medium flows forward, the fluid pressure will push open the valve disc accordingly, ensuring unobstructed passage; Once the medium reflux occurs, the valve disc will immediately reset and close automatically under the action of pressure difference. Through this core technology, SJ Valve ensures strict unidirectional flow of system fluids, effectively preventing backflow risks and ensuring the safety of your pipelines.
Q3 What are the types of check valves?

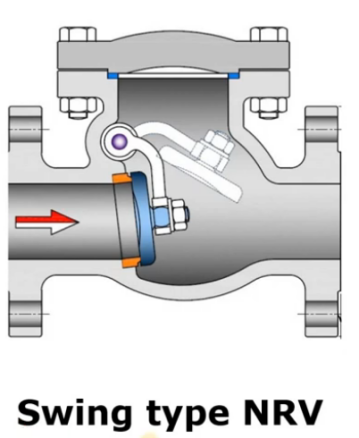

a. Swing check valve: It is characterized by a hinged valve disc, which opens when flowing forward and closes when flowing backward. Commonly used in water supply and sewage treatment systems.

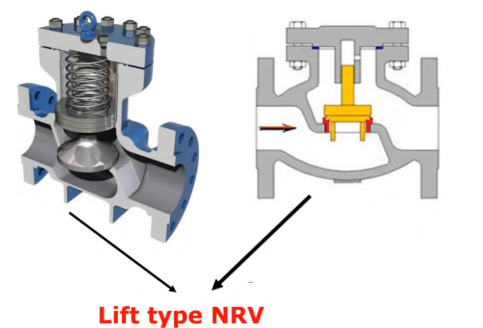

b. Lift check valve: It contains an adjustable valve disc or piston inside, which allows fluid to pass through when the disc or piston rises, and prevents fluid from flowing in the opposite direction when the disc or piston falls. Suitable for high-voltage applications.

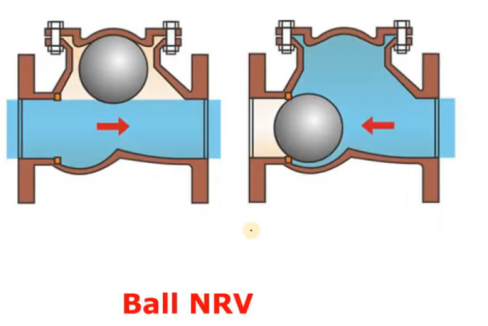

c. Spherical check valve: Using a spherical valve core, when fluid flows forward, the valve core will move and open, sealing with the valve seat to prevent backflow. Commonly used in low-voltage systems.
d. Diaphragm check valve: using a flexible diaphragm, the diaphragm bends and opens when flowing forward, and seals and closes when flowing backward. Suitable for systems that transport corrosive fluids.
e. Chip type check valve: designed for compact spaces, lightweight, and installed between flanges. Commonly used in HVAC and industrial processes
a. Swing check valve: It is characterized by a hinged valve disc, which opens when flowing forward and closes when flowing backward. Commonly used in water supply and sewage treatment systems.
b. Lift check valve: It contains an adjustable valve disc or piston inside, which allows fluid to pass through when the disc or piston rises, and prevents fluid from flowing in the opposite direction when the disc or piston falls. Suitable for high-voltage applications.
c. Spherical check valve: Using a spherical valve core, when fluid flows forward, the valve core will move and open, sealing with the valve seat to prevent backflow. Commonly used in low-voltage systems.
d. Diaphragm check valve: using a flexible diaphragm, the diaphragm bends and opens when flowing forward, and seals and closes when flowing backward. Suitable for systems that transport corrosive fluids.
e. Chip type check valve: designed for compact spaces, lightweight, and installed between flanges. Commonly used in HVAC and industrial processes
SJ Valve offers a full range of high-performance check valve solutions, including swing type for water supply and drainage systems, lift type for high-pressure conditions, spherical type for low-pressure environments, and diaphragm type check valves specifically designed for conveying corrosive media. Aiming to ensure precise and reliable unidirectional fluid control for your various industrial processes and HVAC systems through diversified technological solutions.
Q4 What are the characteristics of NVR valves?
NVR valves have many significant features, which make them widely used in multiple industries. Here are some main features:
a. Anti reflux function
The core function of NVR valves is to prevent fluid backflow. It ensures that the fluid can only flow in one direction, preventing damage or contamination of the system due to backflow. For example, in the water supply system, NVR valves can prevent sewage from flowing back into the clean water pipeline, ensuring the safety of water supply.
b. Efficient and stable
NVR valves have high working stability and can operate normally under various fluid pressures and flow rates. Valves are usually designed with mechanisms such as springs and gravity inside to ensure their automatic closing function, reducing the need for human intervention.
c. Simple structure and easy maintenance
Compared with other types of valves, NVR valves have a simpler structure, making their installation and maintenance more convenient. Even after prolonged use, users can ensure its normal operation through simple cleaning and inspection.
d. Prevent equipment damage
In many cases, backflow in fluid systems can cause serious damage to equipment, especially in high-pressure or high-temperature environments. NVR valves can effectively avoid this situation, thereby protecting other equipment and pipelines in the system.
NVR valves have many significant features, which make them widely used in multiple industries. Here are some main features:
a. Anti reflux function
The core function of NVR valves is to prevent fluid backflow. It ensures that the fluid can only flow in one direction, preventing damage or contamination of the system due to backflow. For example, in the water supply system, NVR valves can prevent sewage from flowing back into the clean water pipeline, ensuring the safety of water supply.
b. Efficient and stable
NVR valves have high working stability and can operate normally under various fluid pressures and flow rates. Valves are usually designed with mechanisms such as springs and gravity inside to ensure their automatic closing function, reducing the need for human intervention.
c. Simple structure and easy maintenance
Compared with other types of valves, NVR valves have a simpler structure, making their installation and maintenance more convenient. Even after prolonged use, users can ensure its normal operation through simple cleaning and inspection.
d. Prevent equipment damage
In many cases, backflow in fluid systems can cause serious damage to equipment, especially in high-pressure or high-temperature environments. NVR valves can effectively avoid this situation, thereby protecting other equipment and pipelines in the system.
SJ Valve's NVR valves have the characteristics of preventing backflow, high efficiency and stability, simple structure, and easy maintenance, and are widely used in multiple industries, especially in scenarios where backflow prevention and system safety are required. With its high working stability and automatic closing mechanism, SJ Valve's NVR valves can effectively protect system equipment, avoid damage or contamination caused by backflow, and ensure the long-term safety and reliability of fluid systems.
