SJ Launches a New Series of Knife Gate Valve
2025-08-29
SJ Launches a New Series of Knife Gate Valve
SJ Company launches a new series of knife gate valve products
Definition of Knife Gate Valve
A knife gate valve is a valve that controls fluid flow through the up and down movement of a knife shaped gate. Its main feature is that the gate is designed in a sharp blade shape, which can easily cut and handle media containing solid particles, fibers, or high viscosity slurry, effectively preventing blockage. Therefore, it is particularly suitable for industrial fields such as papermaking, mining, wastewater treatment, and chemical engineering that require the treatment of complex fluids.
Core Composition and Design
Knife gate valves are one-way or two-way straight through block valve, designed to handle media containing solid particles, fibers, or high viscosity slurries. It mainly consists of the following parts:
Knife gate valves are one-way or two-way straight through block valve, designed to handle media containing solid particles, fibers, or high viscosity slurries. It mainly consists of the following parts:
Valve Body: Typically, it adopts an ultra-thin wafer design, which is very compact and saves installation space and pipeline weight. The valve body provides an unobstructed straight passage inside.
Knife shaped Gate: This is the iconic component of knife shaped gate valves. It is not a thick wedge-shaped gate like traditional gate valves, but rather like a blade. Its bottom usually has a slope or chamfer, made of hard stainless steel, which can cut into the medium in a "shearing" manner, cutting off solid substances (such as fibers in pulp and particles in slurry) to ensure smooth valve closure.
Valve Seat: When the gate is lowered and closed, it will tightly adhere to the valve seat. The valve seat can be made of flexible materials such as nitrile rubber and EPDM rubber to provide reliable sealing.
Stuffing Box: Located above the valve stem, it uses packing to prevent medium leakage from the connection between the valve stem and the valve body, ensuring a clean and safe operating environment.
Knife shaped Gate: This is the iconic component of knife shaped gate valves. It is not a thick wedge-shaped gate like traditional gate valves, but rather like a blade. Its bottom usually has a slope or chamfer, made of hard stainless steel, which can cut into the medium in a "shearing" manner, cutting off solid substances (such as fibers in pulp and particles in slurry) to ensure smooth valve closure.
Valve Seat: When the gate is lowered and closed, it will tightly adhere to the valve seat. The valve seat can be made of flexible materials such as nitrile rubber and EPDM rubber to provide reliable sealing.
Stuffing Box: Located above the valve stem, it uses packing to prevent medium leakage from the connection between the valve stem and the valve body, ensuring a clean and safe operating environment.
Working principle and application advantages
The unique feature of knife gate valves lie in its simple and effective opening and closing action:
When opened, the knife shaped gate is completely lifted and retracted into the valve body, and the fluid channel is completely unobstructed, avoiding any accumulation of media.
When closed, the gate descends like a guillotine, its sharp edge directly piercing through the medium, cutting off solid substances in the fluid until it fully adheres to the valve seat, achieving effective sealing.
It is precisely because of this "cut-off" function that knife gate valves exhibit unparalleled advantages in dealing with complex media that are prone to jamming, wear, and leakage of ordinary valves. Therefore, they are widely used in fields such as papermaking, mining, metallurgy, sewage treatment, and chemical engineering.
Product Classification and Characteristics
The SJ knife gate valve series products offer multiple configurations to meet the specific needs of different customers.
The SJ knife gate valve series products offer multiple configurations to meet the specific needs of different customers.

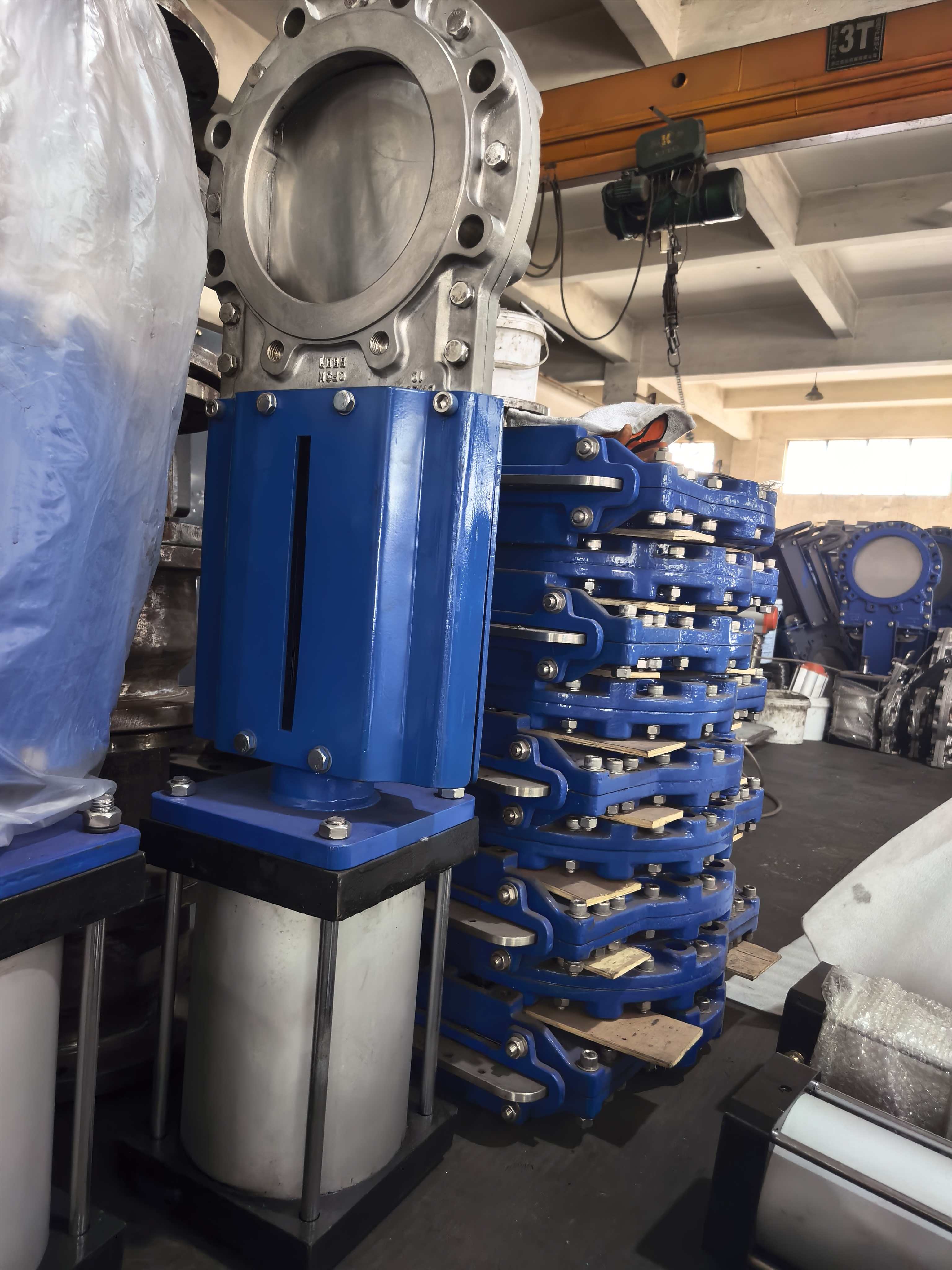

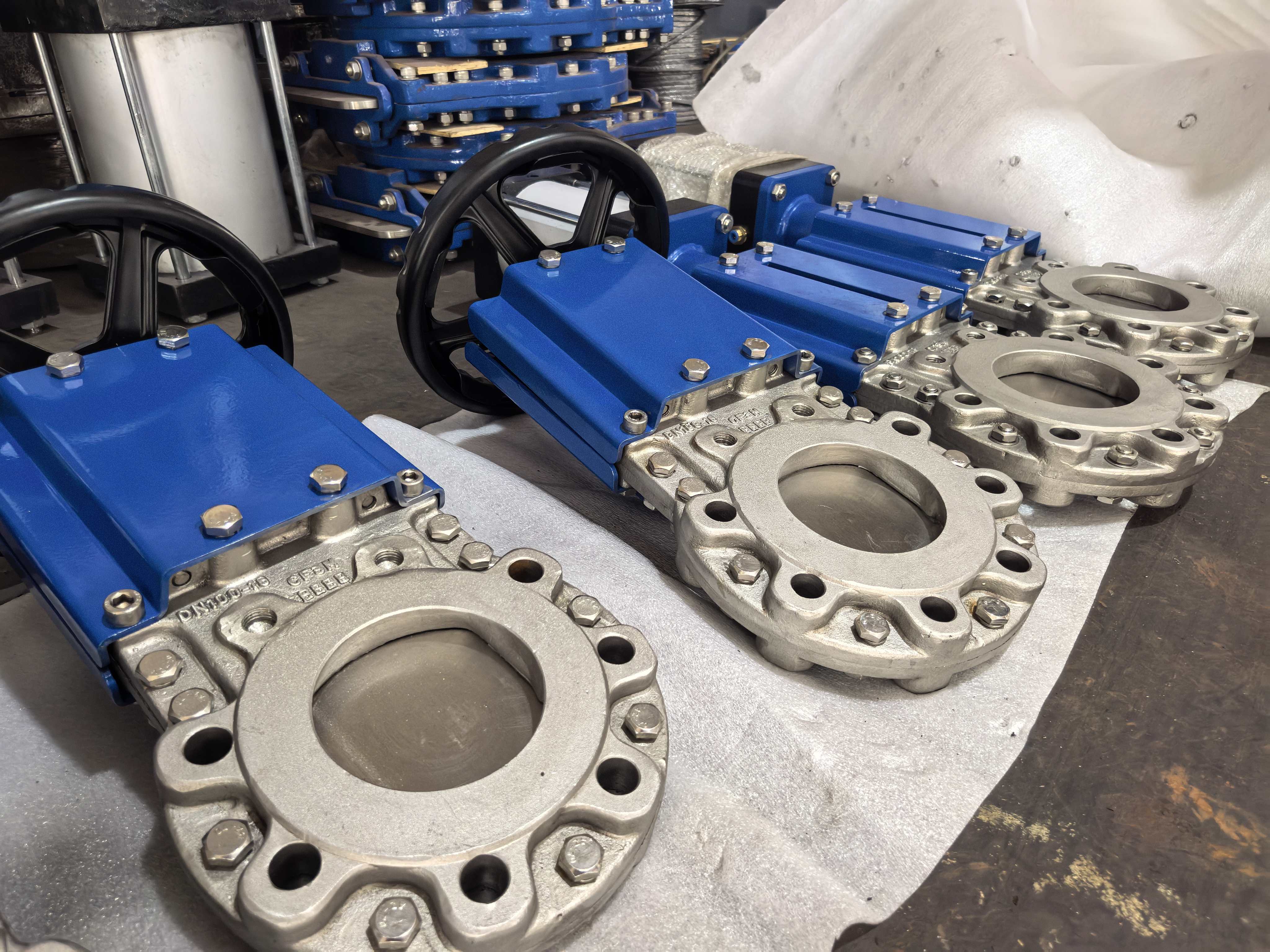

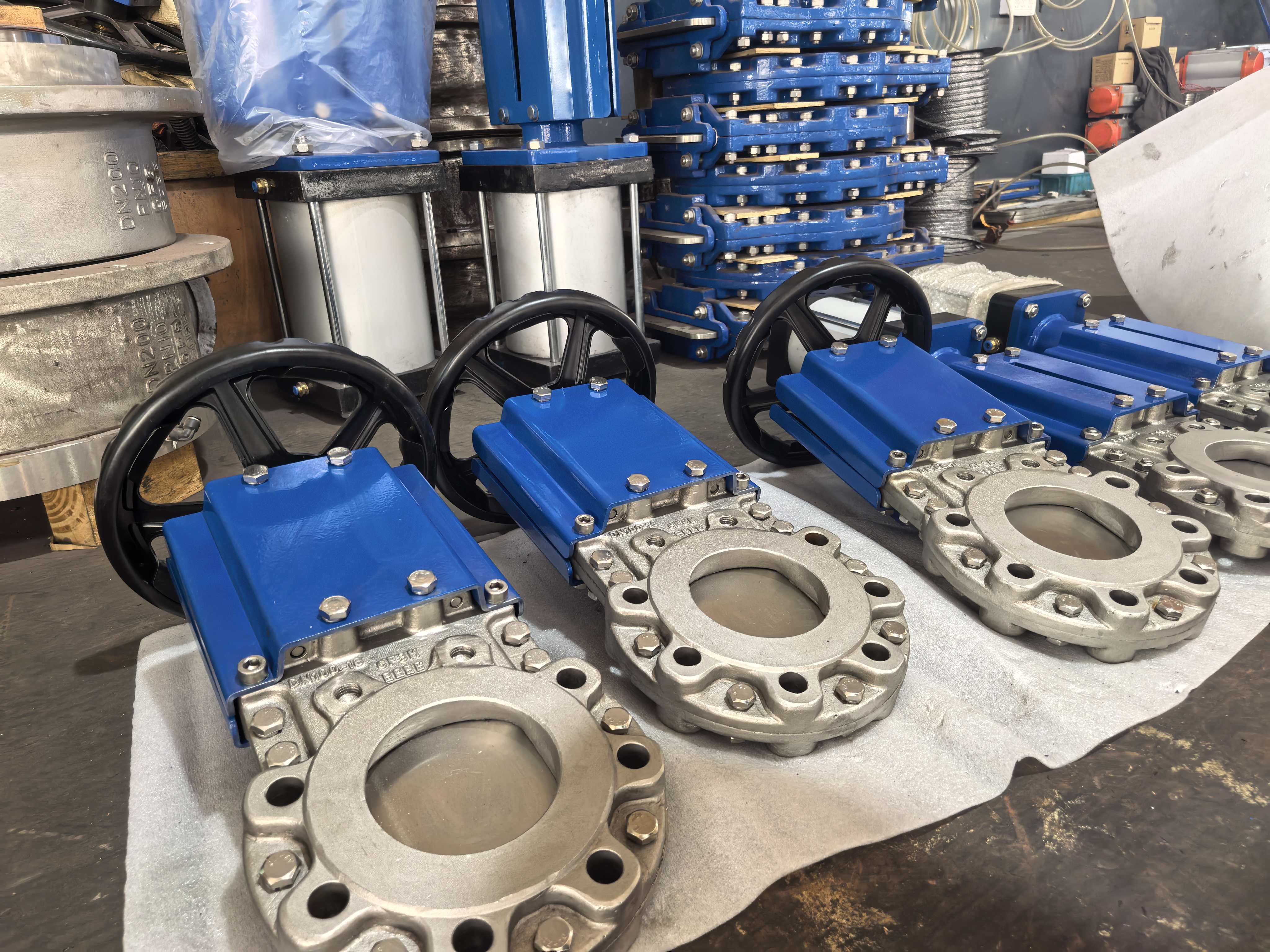

By driving mode: Three driving modes are provided: manual, pneumatic, and electric. Users can flexibly choose according to the degree of automation and operational needs.
According to the valve body structure: adopting a compact wafer design, the valve body is ultra-thin, greatly saving installation space and pipeline weight.
According to the valve body structure: adopting a compact wafer design, the valve body is ultra-thin, greatly saving installation space and pipeline weight.
Core features
Excellent cutting ability: The inclined design of the blade gate ensures that it can shear solid impurities in the fluid like a "blade", achieving barrier free closure.
Excellent self-cleaning function: The gate can scrape off sediment attached to the valve body and sealing surface during operation, reducing maintenance frequency.
Compact and lightweight structure: The ultra-thin valve body design not only reduces costs, but also makes transportation and installation easier.
Reliable sealing performance: Advanced packing and seat sealing technology is used to ensure zero leakage of the valve in the closed state while ensuring fluid cut-off.
Excellent self-cleaning function: The gate can scrape off sediment attached to the valve body and sealing surface during operation, reducing maintenance frequency.
Compact and lightweight structure: The ultra-thin valve body design not only reduces costs, but also makes transportation and installation easier.
Reliable sealing performance: Advanced packing and seat sealing technology is used to ensure zero leakage of the valve in the closed state while ensuring fluid cut-off.
