In modern oil, natural gas, and chemical energy systems, the safety and efficiency of pipeline networks serve as the lifeline of industrial operations. As the "industrial heart" of fluid control, the side-entry trunnion-mounted ball valve—distinguished by its exceptional pressure-bearing capacity, supreme sealing reliability, and convenient maintenance features—has become an indispensable core component in long-distance pipelines and large-scale petrochemical facilities. This article will delve into the technical characteristics and application value of this valve type, providing an in-depth analysis of why it stands as the ideal choice for industrial fluid control.
Q1: What are the core technical advantages of the side-entry trunnion-mounted ball valve?

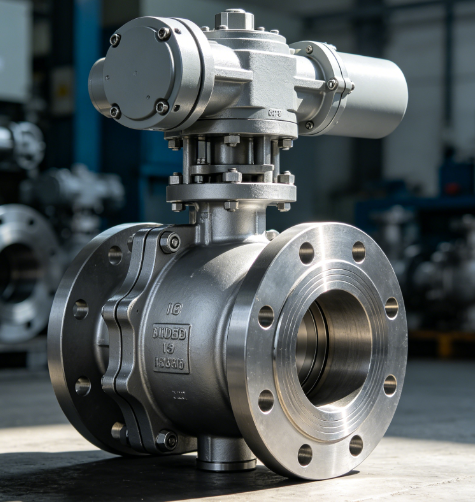

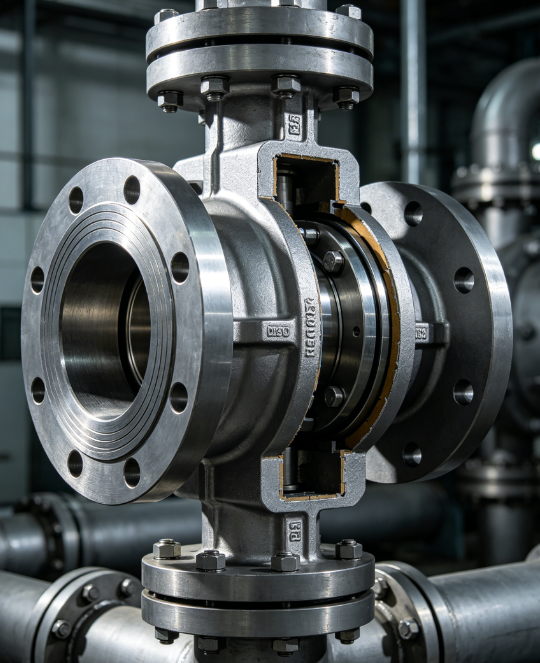

A: This valve type employs a trunnion-mounted ball structure design, utilizing upper and lower bearings to support the ball and effectively distribute the radial thrust generated by high-pressure fluids. Compared to floating ball valves, this structural configuration significantly reduces the operating torque required for opening and closing, ensuring smooth and precise shut-off even under high-pressure operating conditions. Furthermore, its side-entry design allows technical personnel to inspect and replace internal components directly from the side—without the need to remove the entire valve from the pipeline system—thereby drastically reducing long-term maintenance costs and downtime.
A: This valve type employs a trunnion-mounted ball structure design, utilizing upper and lower bearings to support the ball and effectively distribute the radial thrust generated by high-pressure fluids. Compared to floating ball valves, this structural configuration significantly reduces the operating torque required for opening and closing, ensuring smooth and precise shut-off even under high-pressure operating conditions. Furthermore, its side-entry design allows technical personnel to inspect and replace internal components directly from the side—without the need to remove the entire valve from the pipeline system—thereby drastically reducing long-term maintenance costs and downtime.
SJ Summary: Through a precisely engineered upper and lower bearing support system, SJ side-entry trunnion-mounted ball valves ensure effortless operation and precise sealing, even in high-pressure, large-bore applications. We strive not only for excellence in mechanical performance but also—through SJ’s optimized side-entry maintenance solutions—aim to minimize our customers' long-term operational and maintenance costs, thereby demonstrating SJ’s deep technical expertise in the field of precision industrial manufacturing.
Q2: In which key sectors are these valves primarily utilized?

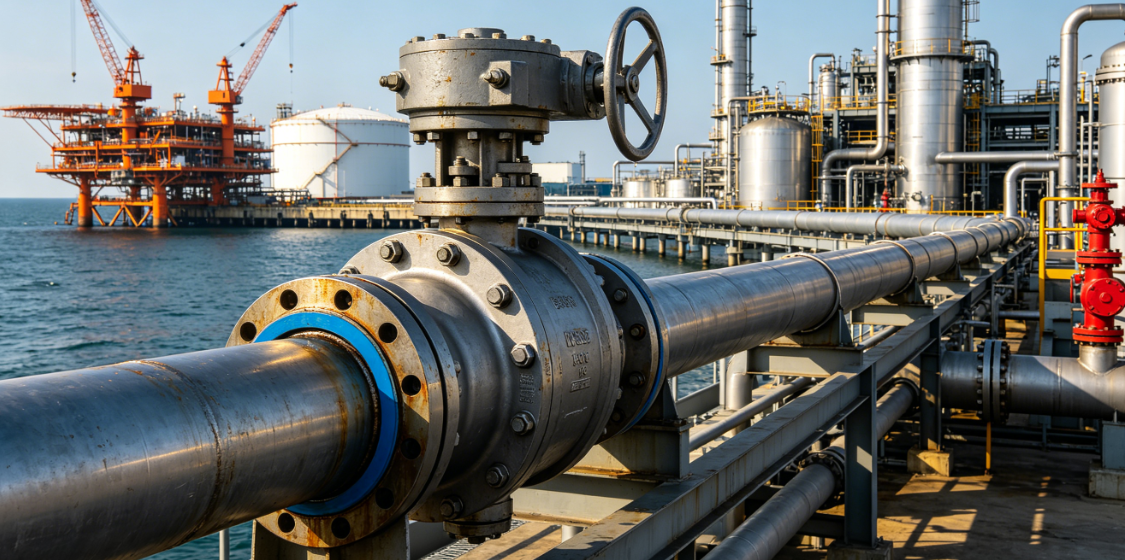

A: Thanks to their exceptionally high safety margins and superior corrosion resistance, these valves are widely deployed across various high-standard energy infrastructure projects. Key application scenarios include: long-distance oil and gas transmission pipelines, crude oil and natural gas processing plants, oil refining and petrochemical facilities, and offshore operating platforms. They are capable of handling not only standard fluids but also hazardous media—such as sulfur-bearing, high-pressure, flammable, and explosive substances—while consistently delivering stable and durable sealing performance to ensure the smooth operation of the entire production process.
A: Thanks to their exceptionally high safety margins and superior corrosion resistance, these valves are widely deployed across various high-standard energy infrastructure projects. Key application scenarios include: long-distance oil and gas transmission pipelines, crude oil and natural gas processing plants, oil refining and petrochemical facilities, and offshore operating platforms. They are capable of handling not only standard fluids but also hazardous media—such as sulfur-bearing, high-pressure, flammable, and explosive substances—while consistently delivering stable and durable sealing performance to ensure the smooth operation of the entire production process.
SJ consistently provides customized material solutions tailored to the specific media requirements of different industries. Through a product portfolio characterized by high reliability, SJ ensures that its brand delivers exceptional operational performance across a wide range of demanding industrial environments.
Q3: How does this product functionally guarantee the absolute safety of the system?

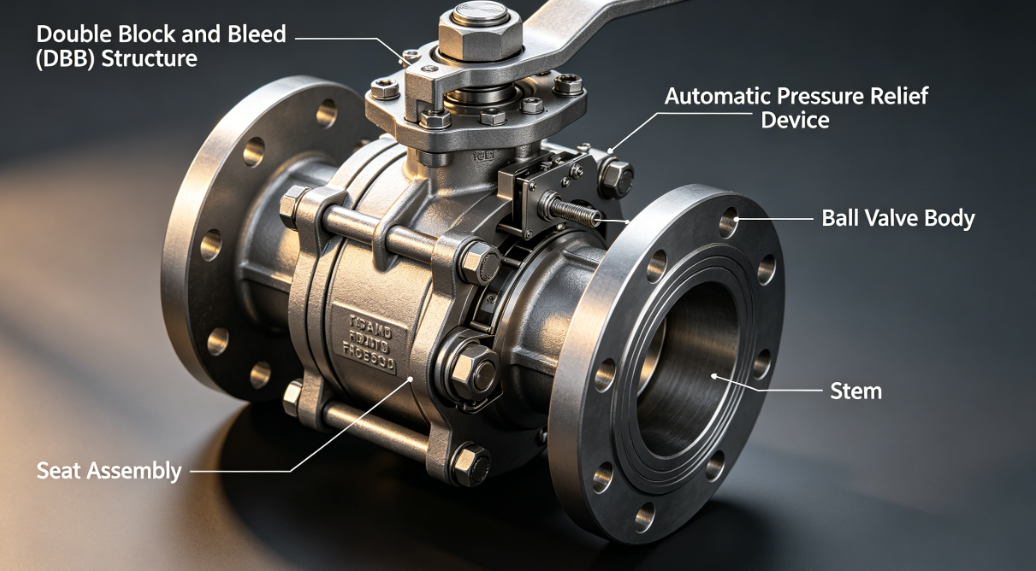

A: Safety is the primary objective in the design of this type of valve. It is equipped with an advanced Double Block and Bleed (DBB) function, which, when in the closed position, simultaneously blocks fluid pressure both upstream and downstream of the ball. Furthermore, it allows for the discharge of any accumulated media through a central cavity bleed port; this feature not only safeguards maintenance personnel but also facilitates pressure testing and the verification of seal integrity. Additionally, the valve incorporates an automatic pressure relief mechanism designed to mitigate safety risks associated with excessive pressure buildup within the central cavity, thereby establishing a comprehensive and robust barrier against leakage.
A: Safety is the primary objective in the design of this type of valve. It is equipped with an advanced Double Block and Bleed (DBB) function, which, when in the closed position, simultaneously blocks fluid pressure both upstream and downstream of the ball. Furthermore, it allows for the discharge of any accumulated media through a central cavity bleed port; this feature not only safeguards maintenance personnel but also facilitates pressure testing and the verification of seal integrity. Additionally, the valve incorporates an automatic pressure relief mechanism designed to mitigate safety risks associated with excessive pressure buildup within the central cavity, thereby establishing a comprehensive and robust barrier against leakage.
Safety is the paramount principle at SJ Manufacturing. We equip every side-entry trunnion-mounted ball valve as a standard with both the Double Block and Bleed (DBB) function and automatic pressure relief protection. Combined with SJ’s strict adherence to fire-safe and anti-static testing standards, we construct the most secure isolation barrier within industrial fluid control systems—ensuring that every client enjoys not only high performance but also the ultimate confidence in safety that the SJ brand delivers.
