What is a Spool Valve and How Does It Work?

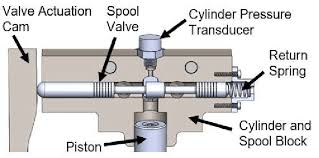

A spool valve is a directional flow regulation device that channels fluid by axially displacing a precisely engineered "spool" (a shaft featuring "lands" and "grooves") within a cylindrical housing (or sleeve) that contains connection ports.

By moving the spool, the lands and grooves sequentially connect or obstruct the ports, allowing the valve to:

Redistribute flow paths (switch flow direction).

Open or isolate circuits (turn flow on/off).

Proportionally meter flow, depending on the spool's geometry and the control method employed.

What is a Diaphragm Valve and How Does It Work?

Definition and Mechanism

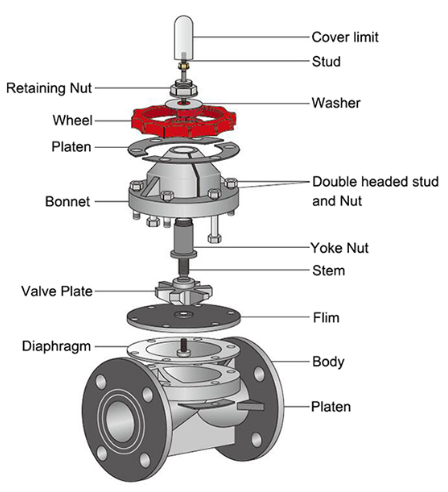

A diaphragm valve (also known as a membrane valve) regulates flow by compressing a pliable membrane (diaphragm) against a sealing surface (weir or straight-through body) to stop media flow, or by lifting the diaphragm to permit flow.

Isolation and Actuation

The diaphragm fundamentally separates the working fluid from the actuator mechanism (bonnet or valve cap). The actuator is responsible for manipulating the diaphragm (via manual operation, pneumatic pressure, or electric motor) to achieve on/off control or flow modulation.

Diaphragm valves are highly prized for achieving a hermetic seal (bubble-tight shutoff), their sanitary and self-draining configurations, excellent chemical resistance (due to the compatibility of the lining and diaphragm materials), and a minimal risk of internal contamination because the fluid never contacts moving metallic inner components.

How Do Spool Valves and Diaphragm Valves Differ in Sealing and Leak Tightness?

Sealing Philosophy Discrepancy

The core sealing approach is fundamentally distinct:

Spool Valves achieve sealing through minimal clearances and elastomeric O-rings placed along the spool lands. Since the spool slides within a bore featuring multiple ports, effective sealing relies on dynamic O-rings or precise metal-to-metal tolerances. While spool valves can achieve very low leakage rates (especially in hydraulic applications), they are vulnerable to particulate contamination which can scratch the spool or degrade the seals, leading to internal bypass or sticking.

Diaphragm Valves guarantee bubble-tight shutoff because the diaphragm itself forms the primary seal and isolates the process fluid from the valve cap and actuator. Sealing is accomplished by deforming the flexible diaphragm onto the valve seat—thus, there are no dynamic internal metallic sealing faces in direct contact with the media. This characteristic makes diaphragm valves exceptionally well-suited for sanitary and aggressive media requiring a zero-dead-leg configuration.

Practical Implications for Leakage

High-Pressure, Low Internal Leakage: For achieving very low internal leakage under high differential pressures, spool valves with robust sealing components can perform excellently, provided the fluid is meticulously clean and filtration integrity is strictly maintained.

Positive Isolation (Bubble-Tight Containment): For applications demanding absolute isolation (bubble-tight, hygienic containment), diaphragm valves typically outperform spool valves because the membrane completely separates the fluid path from the moving metal components.

How Do Spool and Diaphragm Valves Compare on Durability ?

Spool valves

Pros: Relatively robust in high-pressure hydraulic service; easy to replace seals; long life when fluid is filtered and clean; modular cartridges simplify replacement.

Cons: Sensitive to particulate and abrasive fluids (scoring of spool causes leakage/sticking). O-rings and dynamic seals wear and require periodic replacement—especially if the valve cycles often under contaminants.

Diaphragm valves

Pros: Minimal internal component wear (fluid does not contact moving metal parts), easy in-line diaphragm replacement, ideal for corrosive/abrasive or sanitary services. Diaphragms are relatively low cost and often user replaceable without heavy teardown.

Cons: Diaphragms are consumables: exposure to aggressive chemicals, thermal cycling, or mechanical abrasion eventually leads to embrittlement, rupture, or loss of elasticity and requires drum-to-drum replacement. In high-cycle or high-temperature services diaphragms may require frequent changeouts. Some diaphragm types are rated for up to ~1 million cycles under specified conditions.

How Do They Compare on Flow Capacity and Pressure/Temperature Ratings?

Performance Comparison of Flow Capacity, Pressure, and Temperature

Both valve families encompass a broad spectrum of performance capabilities—however, typical practical differences exist.Pressure Examples: Spool valves used in heavy-duty hydraulic systems and high-pressure solenoid assemblies are commonly specified for ratings in the hundreds of bars (for instance, many cartridge and directional spool valves from SJ are rated 315–350 bar; some specialized spool solenoids are specified up to 420 bar). Diaphragm valves are frequently perceived as lower-pressure devices in many catalogues, yet high-specification diaphragm valves (including metal-body and multi-diaphragm configurations) can be designed for surprisingly high pressures. Documentation and product catalogs (such as those published by SJ)  confirm diaphragm variations rated up to 420 bar in specific designs and materials (spanning DN ranges DN15–900), highlighting that contemporary diaphragm engineering can satisfy demanding pressure needs where appropriate construction and materials are employed.Temperature Examples: Diaphragm temperature limitations are heavily dependent on the chosen diaphragm compound: materials like EPDM, NBR, FKM, and PTFE-lined diaphragms offer different maximum thermal ranges. Typical diaphragm units may be specified to operate up to approximately 150°C for certain material selections; it is essential to consult the vendor's data sheets (e.g., from SJ ) for exact performance curves.
