Bellows Sealed Globe Valve
Size: 1/2"-20"
Class: 150#-2500#
Each valve is tested per API 598.
Every bellow assembly is helium leak-tested to assure zero leakage.
Non-rotating stems prevent torsion of bellow.
Secondary stem seals include:Stem backseat
API 624 stem packing
Class: 150#-2500#
Each valve is tested per API 598.
Every bellow assembly is helium leak-tested to assure zero leakage.
Non-rotating stems prevent torsion of bellow.
Secondary stem seals include:Stem backseat
API 624 stem packing
Quantity
Bellows Sealed Globe Valve Manufacturer
What is a Bellows Sealed Globe Valve
- The bellows sealed globe valve is an essential component of many industries, such as the chemical, oil and gas, and petrochemical industries. It is an industrial valve used to regulate and control the flow of fluids, gases, and other media through a pipeline or system. These bellows valves are widely used due to their unique design, which includes a bellows seal that protects the valve stem from corrosion and prevents the fluid from eroding the valve stem.

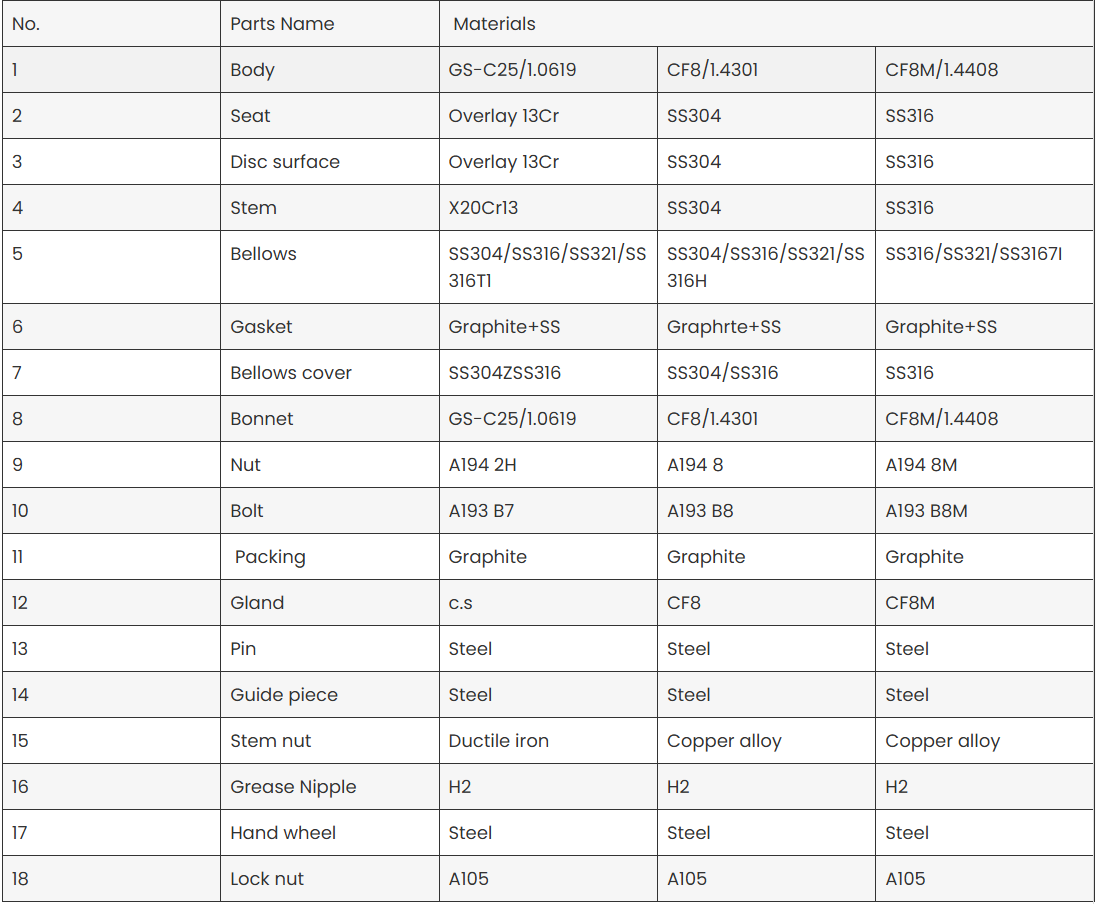

What is a Bellows Sealed Globe ValveComponents and characteristics
- Bellow is the key part of bellows seal valve ,which is welded to both the valve bonnet and valve stem, with automatic roll welding. The metal bellow can keep the stem part 100% no leakage.
- Double seal design(bellows+packing). Bellow form a metal seal to prevent leakage, and packing can provide seal if the bellow failed.
- Overlay welded seat can keep reliable sealing under severe conditions.
- Ergonomic hand wheel. It provide longer service life and easier Operation.
