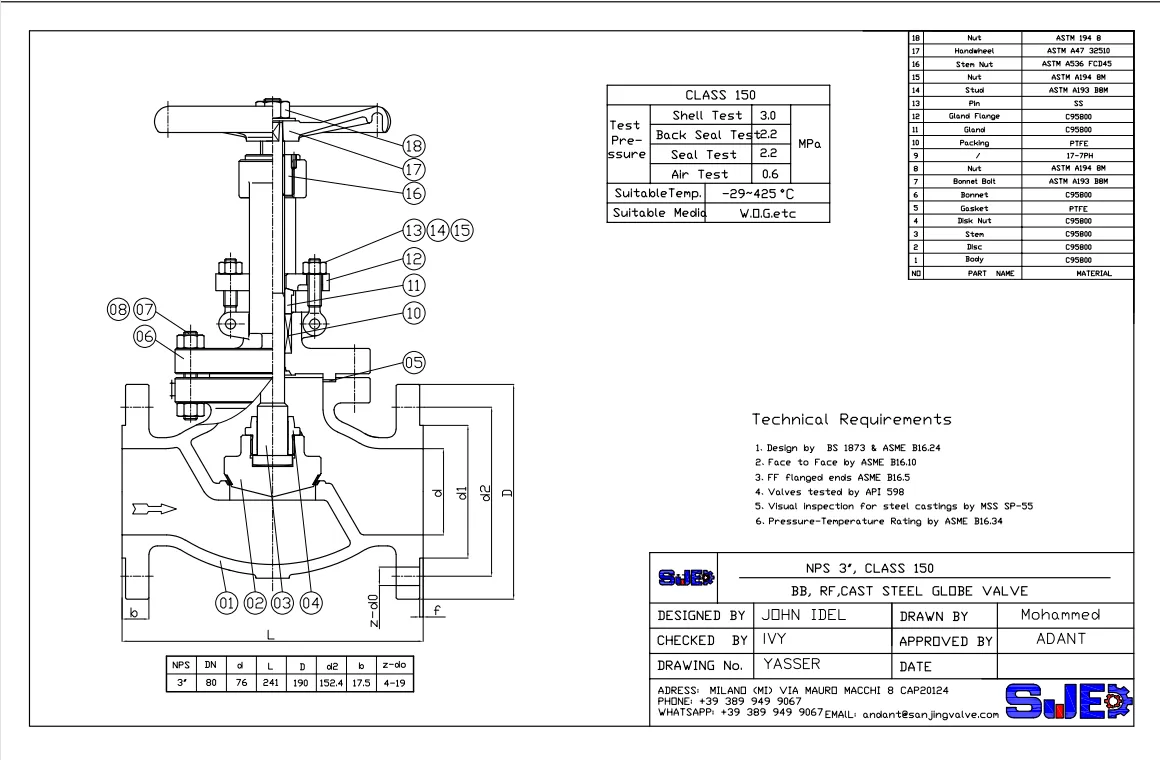

Body & Bonnet Construction – All castings are precision-machined, with a one‑piece bonnet design that ensures superior alignment and reduces component count. Leading globe valve suppliers often adopt this configuration to enhance reliability.

Body Materials – Available in a wide range of cast steels:

• Carbon steel: A216 WCB, WCC

• Alloy steel: A217 WC6, WC9, C5, C12

• Low‑temperature carbon steel: A352 LCB, LCC

• Stainless steel: A351 CF8, CF8M, CF3, CF3M, CF8C

• Duplex steel: A899/994 4A, 5A, 6A

Trim (API Trim 8) – Features a 13Cr stem, a 13Cr‑faced disc, and CoCr alloy‑faced seats, making this globe valve suitable for continuous service up to 850°F (454°C).

Seat Finish – The CoCr alloy seating surfaces are hardfaced, ground, and lapped to a mirror‑like finish, while the conical seat is machined to a fine surface smoothness. This level of craftsmanship is a hallmark of quality cast steel globe valve production, ensuring that globe valves from top manufacturers deliver tight shut‑off and long service life.

.
