The function of High Pressure Ball Valve

Q: What is the main function of a high‑pressure ball valve in pipeline systems? A: The high‑pressure ball valve is specially engineered for high‑pressure pipeline working conditions to realize fluid cut‑off, connection and flow switching. It adopts robust ball‑and‑seat matching structure to bear large system pressure, reliably blocks high‑pressure medium flow, and can complete quick opening‑closing operation. It isolates upstream and downstream pipelines to protect downstream equipment, and undertakes pipeline switching, emergency cut‑off and medium control tasks for high‑pressure process loops. This prevents medium overflow and equipment damage caused by excessive system pressure, and guarantees stable operation of high‑pressure process pipelines. Conclusion: Therefore, the main function of the high‑pressure ball valve is to provide stable fluid on‑off control and reliable pressure‑bearing isolation, protecting equipment and pipelines under high‑pressure working conditions during normal operation, maintenance and emergency shutdown scenarios.

The principle of using High Pressure Ball Valve

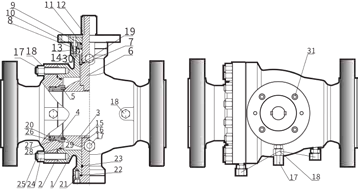

Q: What is the working principle of a High Pressure Ball Valve? A: Its operation is based on the 90‑degree rotation of the ball and reinforced pressure‑resistant sealing structure. When the valve is fully open, the through‑hole of the spherical core aligns with the pipeline passage to allow high‑pressure medium to pass through smoothly. When closed, rotating the ball by 90° separates the ball bore from the pipeline, and the reinforced sealing seats are tightly pressed against the spherical surface under medium pressure to form tight sealing and block fluid transmission. For trunnion‑mount high‑pressure ball valves, the fixed‑shaft ball bears most of the medium thrust, reducing friction load on sealing seats; partial models are equipped with middle‑cavity self‑relief function to automatically release abnormal over‑pressure inside valve cavity and avoid internal pressure overload. Conclusion: Therefore, the operating principle of the high‑pressure ball valve relies on 90‑degree ball rotation to realize fluid switch, together with pressure‑resistant reinforced sealing and trunnion support structure, to achieve safe and stable medium isolation under high‑pressure service conditions.

The operating conditions and advantages of High Pressure Ball Valve

Q: What are the common applications and key advantages of high‑pressure ball valves?

A: This valve is widely deployed in heavy‑duty high‑pressure industrial environments such as oil & gas transmission, petrochemical, power plant, hydrogen energy, and heavy‑duty process industries. It is designed for pipeline systems handling Class600‑Class2500 high‑pressure media, accompanied by high‑temperature, low‑temperature or corrosive working fluids. Its key advantages include:

-High Pressure Resistance: Reinforced body, ball and seat structure adapts to high nominal pressure, resisting large medium thrust and preventing structural deformation. Excellent Sealing Performance: Optimized pre‑loaded seat design maintains stable sealing performance under fluctuating high‑pressure medium, lowering internal and external leakage risk. Emergency Cut‑off Capability: Realizes fast 90‑degree opening‑closing action, supports rapid emergency shut‑down for high‑pressure pipelines.

-High Mechanical Reliability: Adopts high‑strength forging materials such as A105, LF2, F51 duplex steel, anti‑blow‑out stem and anti‑static construction, extending service life under harsh working conditions.

-Strong Media Adaptability: Available for high‑temperature, cryogenic, corrosive and hazardous process medium by adjusting seat and body material combinations.

-Compliant Standard Design: Manufactured in accordance with API 6D, ASME B16.34 and other international specifications to satisfy strict high‑pressure process requirements.

Conclusion: Therefore, the high‑pressure ball valve delivers robust and dependable fluid control solutions for severe high‑pressure working scenarios. With advantages including outstanding pressure resistance, reliable sealing and strong medium adaptability, it is an indispensable core fluid control component for heavy‑duty industrial pipeline systems.

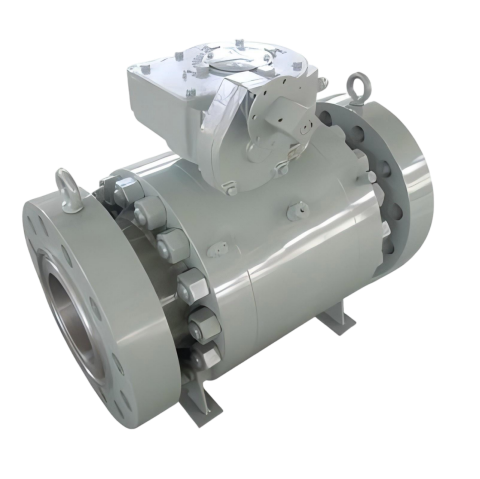

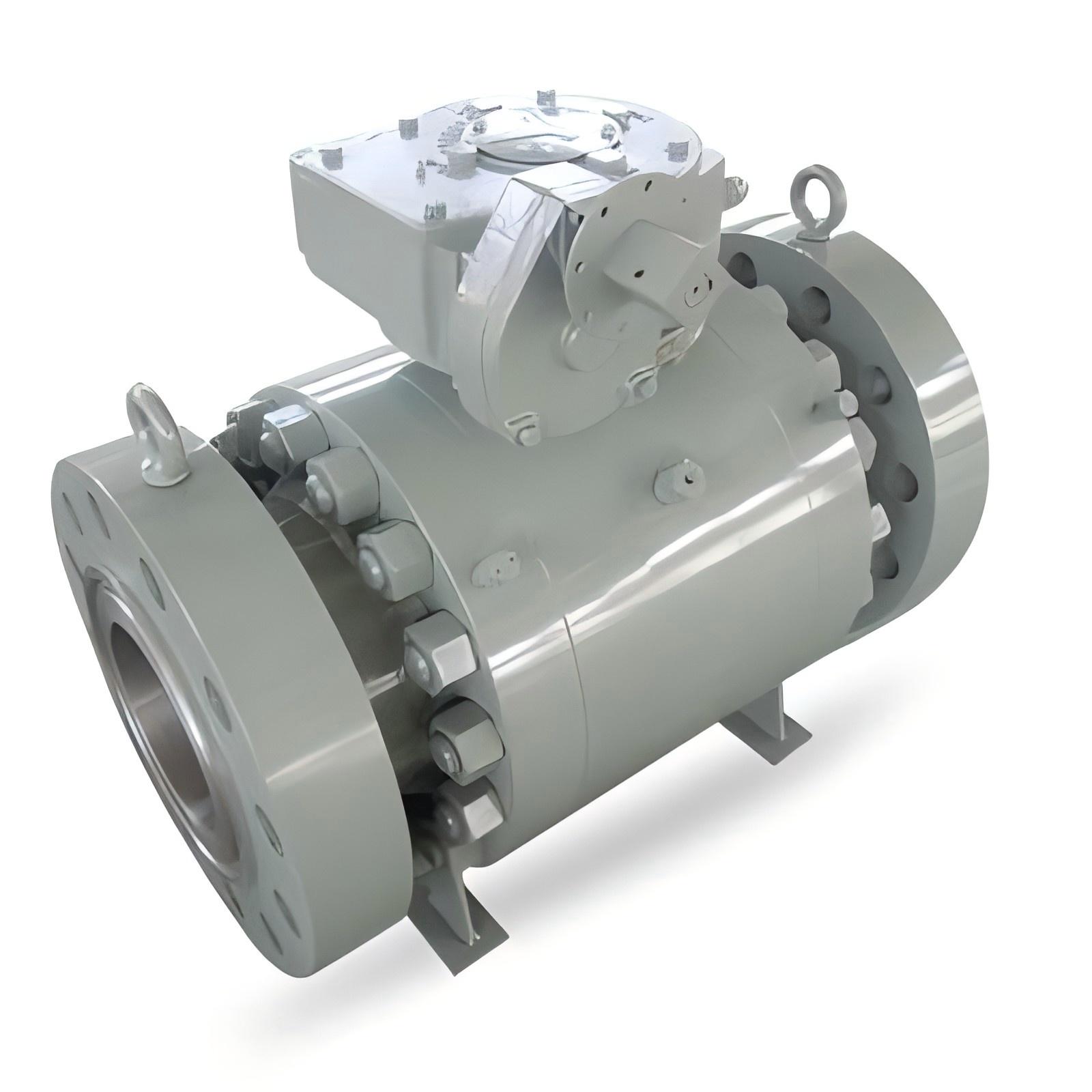

As a leading industrial valve manufacturer, SJ is proud to offer its high‑performance high‑pressure ball valve solutions, specifically engineered for critical high‑pressure service in oil, gas, petrochemical, hydrogen energy and power‑generation applications. Our high‑pressure ball valve series mainly adopts trunnion‑mounted fixed‑ball construction; the heavy‑duty forged valve body, reinforced ball and seat assembly effectively withstand pressure up to Class2500, greatly mitigating deformation and leakage risks under extreme high‑pressure conditions. This specialized high‑pressure ball valve realizes positive tight shut‑off and optional automatic middle‑cavity pressure relief, enabling operators to safely carry out downstream isolation and maintenance work. Constructed with premium high‑strength materials including A105, LF2 low‑temperature carbon steel, F51 duplex stainless steel, and manufactured complying with API 6D, ASME B16.34 international standards, SJ provides the pressure‑bearing capacity, safety performance and long‑term durability your high‑pressure process lines demand.
