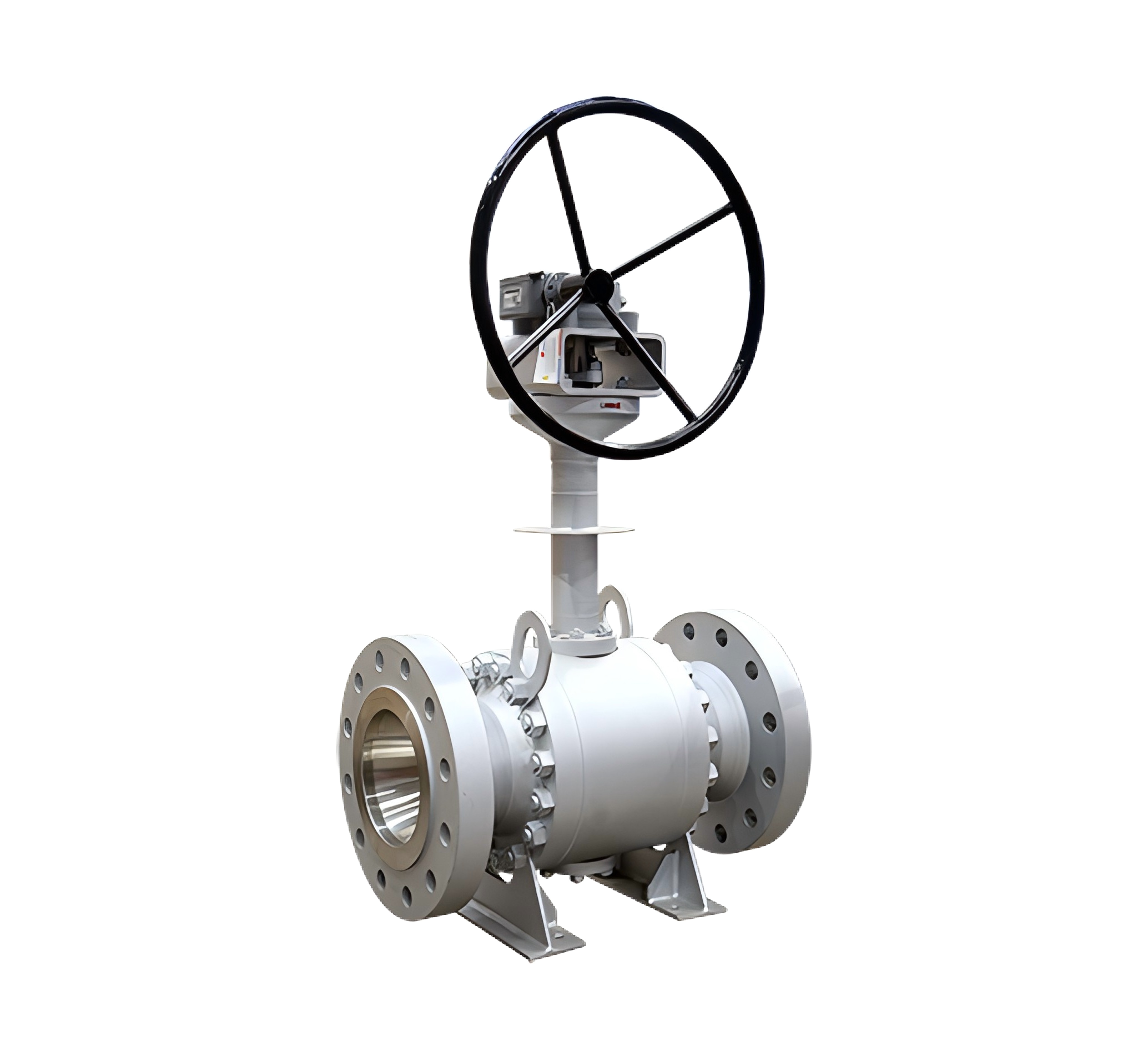

½” thru 36” Class 150 to Class 2500 S J Cryogenic Ball Valve have been widely used in low temperature and cryogenic applications

A: The cryogenic ball valve is a specially optimized flow control component designed for ultra-low temperature pipeline systems. Its core functions include precise fluid isolation, stable flow regulation, and safe cut-off of cryogenic media such as liquefied natural gas, liquid nitrogen, and liquid oxygen. It can effectively block the flow of low-temperature fluids under extreme cold conditions, prevent medium leakage caused by material brittle fracture and seal failure, and support safe pipeline switching, system testing and equipment maintenance. Additionally, it maintains long-term sealing stability and operational safety in high-pressure cryogenic working environments to avoid pipeline safety hazards caused by low-temperature medium transmission.

Conclusion: Therefore, the main function of the cryogenic ball valve is to achieve reliable flow control and tight isolation of ultra-low temperature media, providing essential safety guarantees for the normal operation, maintenance and emergency disposal of cryogenic pipeline systems.

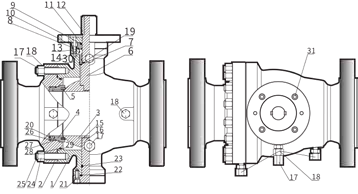

A: The working principle of the cryogenic ball valve is based on the 90-degree rotary motion of the internal spherical valve core, combined with professional low-temperature adaptive structural design. When the valve is opened, the through hole of the spherical ball aligns with the pipeline channel, enabling smooth passage of cryogenic fluids. When closed, rotating the ball 90 degrees separates the through hole from the pipeline, and the precision-fit low-temperature resistant sealing seat closely fits the ball surface to achieve full fluid cut-off. Different from ordinary ball valves, it adopts an extended bonnet structure to isolate the valve stem and internal components from ultra-low temperature media, avoiding frost condensation and operational jamming. Meanwhile, the special sealing structure can adapt to thermal contraction of materials under low temperature, ensuring continuous and stable sealing performance without failure.

Conclusion: Therefore, the operating principle of the cryogenic ball valve relies on 90-degree ball rotation to realize flow switch and regulation, and adopts low-temperature adaptive structural and sealing design to solve the failure problems of ordinary valves in ultra-low temperature environments, achieving efficient and safe control of cryogenic media.

A: Cryogenic ball valves are widely applied in ultra-low temperature industrial scenarios, including LNG storage and transportation, petrochemical cryogenic processing, aerospace low-temperature medium delivery, liquid nitrogen/liquid oxygen industrial pipelines, and new energy cryogenic equipment systems. They are specially suitable for pipeline systems with working temperatures ranging from -40°C to -196°C and bearing medium-pressure and high-pressure working conditions. Its key advantages include:

Low-temperature Resistance & Anti-brittle Fracture: Made of professional low-temperature resistant materials such as LF2 low-temperature carbon steel and 304/316L stainless steel, it avoids brittle fracture and structural damage under ultra-low temperature conditions, ensuring structural integrity.

Ultra-high Sealing Reliability: Equipped with low-temperature special sealing pairs and adaptive compression structure, it offsets the material thermal contraction gap at low temperature, realizing zero leakage isolation of cryogenic media.

Stable & Flexible Operation: The extended bonnet and anti-freezing structural design effectively prevent frost accumulation and stem jamming, ensuring flexible switch operation even in continuous low-temperature working environments.

Strong Environmental Adaptability: It can stably operate in harsh working conditions such as ultra-low temperature, high pressure and low-temperature corrosive media, with strong environmental resistance and wide application range.

Long Service Life & Low Maintenance Cost: The rugged and optimized low-temperature structure reduces component wear and failure probability, lowering frequent maintenance and replacement costs in long-term cryogenic service.

Conclusion: Therefore, the cryogenic ball valve is a dedicated and high-reliability fluid control solution for ultra-low temperature industrial pipeline systems. With prominent advantages of low-temperature resistance, zero leakage, stable operation and low maintenance cost, it is an indispensable core component in cryogenic industrial production and medium transmission systems.

As a leading industrial valve manufacturer, SJ is proud to deliver high-performance cryogenic ball valve solutions tailored for critical ultra-low temperature working conditions in LNG, petrochemical, new energy and aerospace industries. Our cryogenic ball valves adopt optimized low-temperature resistant structural design and are forged from premium low-temperature steel materials including LF2 low-temperature carbon steel and stainless steel, effectively resisting material brittle fracture and seal failure under -196°C ultra-low temperature environments. Featuring an extended bonnet anti-freezing structure and precision matching sealing system, our valves achieve zero-leakage isolation and stable flow control of various cryogenic media such as liquefied natural gas, liquid nitrogen and liquid oxygen. Strictly manufactured in accordance with international industrial standards, SJ’s cryogenic ball valves deliver outstanding safety, operational stability and long-term durability, fully meeting the rigorous service requirements of critical cryogenic process pipelines.
