Rate Range Class 150 to Class 2500 -Size Range ½” thru 36”Electric Ball Valves

Model NO. Electric Ball Valves

Features & Benefits
------------------------------------
-Rate Range Class 150 to Class 2500
-Size Range ½” thru 36” (Class Dependent)
-Full and Reduced Bore
-Body Wall Thickness ASME B16.34
-End Connections: RF, RTJ, BW, SW, NPT, BSP, Special
-Fugitive Emissions ISO 15848
-Fire-Safe Tested API 607
-Emergency Sealant Injectors Optional
-Anti-Static Device and Live-Loaded Packing

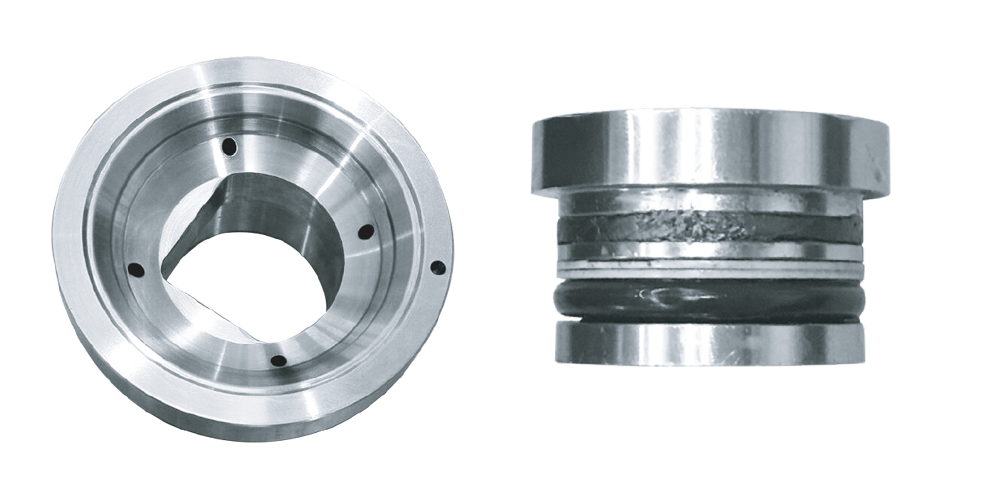

-Guided Seat Design
-Blowout Proof, Low Torque Guided Stem Design
-Wide Range of Soft and Metal Seated Options
-Manual, Electric, Pneumatic, or Electro-Hydraulic Operators Available
-Custom Face-to-Face Lengths Available

Quantity

Electric Ball Valves

SJ is a professional industrial ball‑valve manufacturer. Products comply with API‑6D & ASME B16.34 standards, including trunnion‑mounted, top‑entry and floating ball designs. Full‑bore / reduced‑bore available. Pressure: Class150‑2500, size: 2"‑40". Widely used in petrochemical, oil‑gas and power industries. Can be fitted with electric actuators, custom service available

Technical specification
Design reference		API	ASME	rOCT
Design standard		API6D	ASME B16.34	/
Structural length	Flanged ends	API6D	ASEM B16.10	/
	Welded connection
Flanged ends		ASME B16.5/ASME B16.47		rOCT 33259 rOCT 12815
Butt-welding ends		ASME B16.25
Test &inspection		API6D	API598	rOCT 9544

Notes:The sizes of valve connectingflange and butt-welding terminas can be designed according to customer's requirement.

Main material
	Part Name	Main Material		Part Name	Main Material
1	Body	WCB,LCB,LCC,4A,CF8,CF3,CF3M,CF8M,G20Mn5. Inconel,Monel,Alloysteel,Aluminium Bronze	16	Trunnion	Matchingwith valve body
2	Cover		17	Drain plug	Component
3	Ball	A105,LF2,F304,F304L,F316,F316L,F321,F416,F440CF5	18	Grease injection valve	Matching with valve body
4	Seat Retainer	A105,LF2,F304,F304L,F316,F316L,F321,F416,F440CF5	19	Anti static device	IncX-750
5	Seat Seal	PTFE,RPTFE,DEV,NLY,PPL,POM,PEEK,+STL,+TCC,+Ni60 410,LF2,F304,F304L,F316,F316L,F321,F416,F440C,F51, Inconel,Monel,Alloy steel,Aluminium Bronze	20	Spring	IncX-750
6	Stem		21	Hexagon socket screw	B7,B7M,L7,L7M,Inconel,Monel,Alloy steel,Aluminium Bronze
7	Thrust Washer	PTFE	22	Metal winding gasket	SS+Graphite
8	Pin	1035	23	O Ring	HNBR,VITON,VITONAED,VITON GTL
9	O Ring	HNBR,VITON,VITONAED,VITON GTL	24	Nut	2H,2HM,7,7M,Inconel,Monel,Alloy steel,Aluminium Bronze
10	Spiral Wound Gasket	SS+Graphite	25	Stud	B7,B7M,L7,L7M,Inconel,Monel,Alloy steel,Aluminium Bronze
11	Connecting flange	Matching with valve body	26	Flexible graphite braided filler	Graphite
12	Key	1035	27	O Ring	HNBR,VITON,VITONAED,VITON GTL
13	O Ring	HNBR,VITON,VITONAED,VITON GTL	28	O Ring	HNBR,VITON,VITONAED,VITON GTL
14	Hexagon socket screw	B7,B7M,L7,L7M,Inconel,Monel,Alloy steel,Aluminium Bronze	29	Metal gasket	SS+Graphite
15	Bearing	SS+Graphite	30	Drain plug	Component
			31	Worm Gear	Assembly
Notes:Major parts of the valve series and materials of sealing surface differ according to actual working condition and customer's special requirement.

Electric Ball Valves
Fullbore
Nominal Size		D		L		H1		H2		W		Weight
in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	Lb	kg
2	50	1.93	49	11.5	292	8.11	206	4.45	113	15.75	400	72.8	33
3	80	2.91	74	14	356	12.4	315	5.08	129	29.53	750	141.2	64
4	100	3.94	100	17	432	12.99	330	6.65	169	11.81	1000	257.9	117
6	150	5.91	150	220	559	13.58	345	5.88	148	11.81	300	628.3	385
8	200	7.91	201	26	660	16.34	415	7.28	185	15.75	300	996.5	452
10	250	9.92	252	31	787	16.81	427	8.9	226	19.69	400	1622.6	736
12	300	11.93	303	33	838	18.31	465	10.59	269	23.62	500	2204.6	1000
14	350	13.15	334	35	889	20.43	519	11.81	300	23.62	600	2929.9	1329
16	400	15.16	385	39	991	25.12	638	13.78	350	23.62	600	3813.9	1730
18	450	17.16	436	43	1092	26.89	683	15.83	402	23.62	600	5037.5	2285
20	500	19.17	487	47	1194	29.45	748	17.56	446	23.62	600	6203.5	2814
22	550	21.18	538	51	1295	33.82	854	19.73	495	23.62	600	7429.5	3370
24	600	23.19	589	550	1397	35.1	917	20.91	531	31.5	800	10846.6	4920
26	650	24.92	633	57	1448	37.72	958	21.89	556	31.5	500	13349.8	5060
28	700	26.93	684	61	1549	40.75	1035	24.41	620	31.5	800	14748.7	6069
30	750	28.94	735	65	1651	42.8	1087	26.22	666	31.5	800	17250.9	7825
32	800	30.66	779	70	1778	43.46	1104	28.22	606	31.5	800	18650.8	8480
34	850	32.68	830	76	1930	45	1143	28.27	718	31.5	800	23478.8	10650
36	900	34.41	874	82	2083	56.5	1435	34.92	887	31.5	800	32407.4	14700

The above parameters are based on Class600--6.3~10.0MPa and are for reference only. For detailed information, please consult the technical team.

FAQ for SJ Electric Ball Valves

Q1: What designs are available for SJ electric ball valves? Full‑bore or reduced‑bore?

A: SJ supplies floating‑ball, trunnion‑mounted and top‑entry electric ball valves, both in full‑bore and reduced‑bore versions. Full‑bore allows pigging with minimum pressure drop for main pipelines. Reduced‑bore is compact and cost‑effective for branch lines. Standard sizes follow API standards, custom sizes are available.

SJ Advantage: Complete dimension database from NPS2"‑40", ready‑to‑use 2D/CAD drawings to save your selection time.

Q2: What is the advantage of electric ball valve vs pneumatic? Which actuators can SJ fit?

A: Electric ball valves require no compressed air supply, ideal for remote & unattended automation. On‑off or modulating (4‑20mA) control is available. SJ can fit various brands of electric actuators, including general‑purpose and explosion‑proof types.

SJ Advantage: Valve‑actuator pre‑matched & pre‑tested in factory, ready for site wiring to minimize on‑site commissioning work.

Q3: What is the benefit of top‑entry design? Can SJ supply top‑entry electric ball valves?

A: Top‑entry design enables in‑line maintenance without removing valve from pipeline, greatly reducing system downtime. SJ offers full range top‑entry electric ball valves Class150‑2500, NPS2"‑40".

SJ Advantage: Valves are fully manufactured in‑house, not assembled from outsourced bodies. SJ provides on‑line maintenance guidance.

Q4: What pressure, size and material range do SJ electric ball valves cover? Do they comply with international standards?

A: Pressure: Class150‑2500; Size: NPS2"‑40"(DN50‑DN1000). Body materials include WCB, LCB, CF8M, duplex steel and special alloys. Design & test comply with API‑6D, ASME B16.34. Material certificates and test reports are available.

SJ Advantage: Full‑range factory acceptance test; complete bilingual documentation for oversea project compliance.
