150-1500 PN 16-250 TEMPERATURE RANGE-50°C / +400°C High Temperature Ball Valve
150-1500 PN 16-250 TEMPERATURE RANGE-50°C / +400°C High Temperature Ball Valve
High Temperature Ball Valve
Features & Benefits
------------------------------------

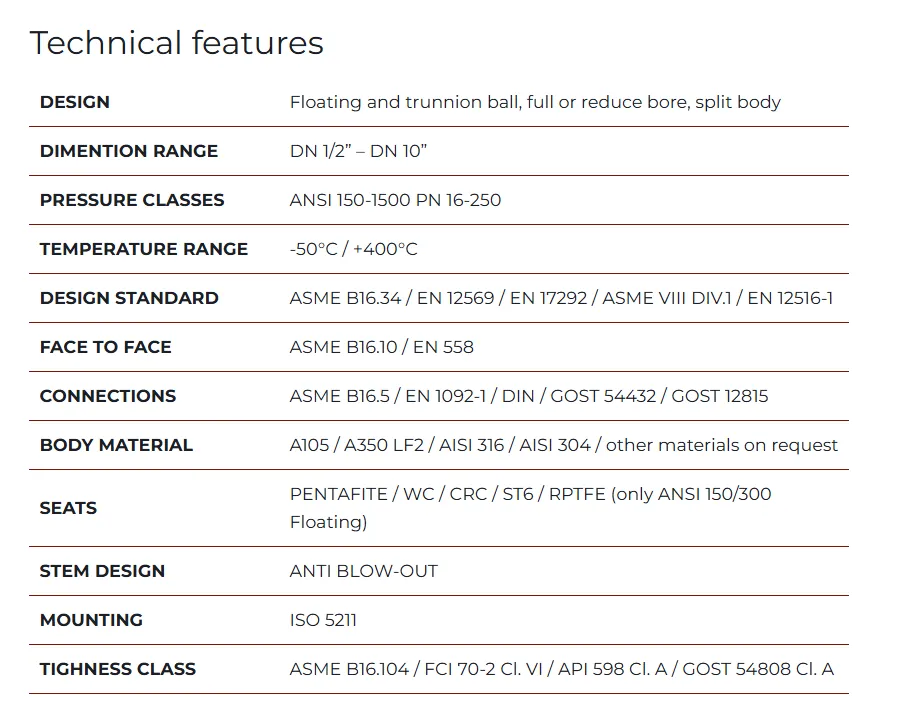

DIMENTION RANGEDN 1/2” – DN 10”
PRESSURE CLASSESANSI 150-1500 PN 16-250
TEMPERATURE RANGE-50°C / +400°C

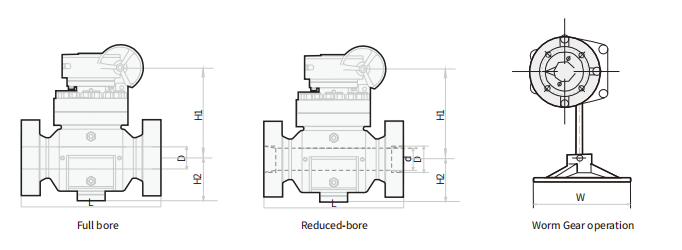

-Full Bore and Reduced Bore
-High temperature and high pressure resist
-Temperature shock resist
-High wear resistance
-Special material requirements
------------------------------------
DIMENTION RANGEDN 1/2” – DN 10”
PRESSURE CLASSESANSI 150-1500 PN 16-250
TEMPERATURE RANGE-50°C / +400°C
-Full Bore and Reduced Bore
-High temperature and high pressure resist
-Temperature shock resist
-High wear resistance
-Special material requirements
Quantity

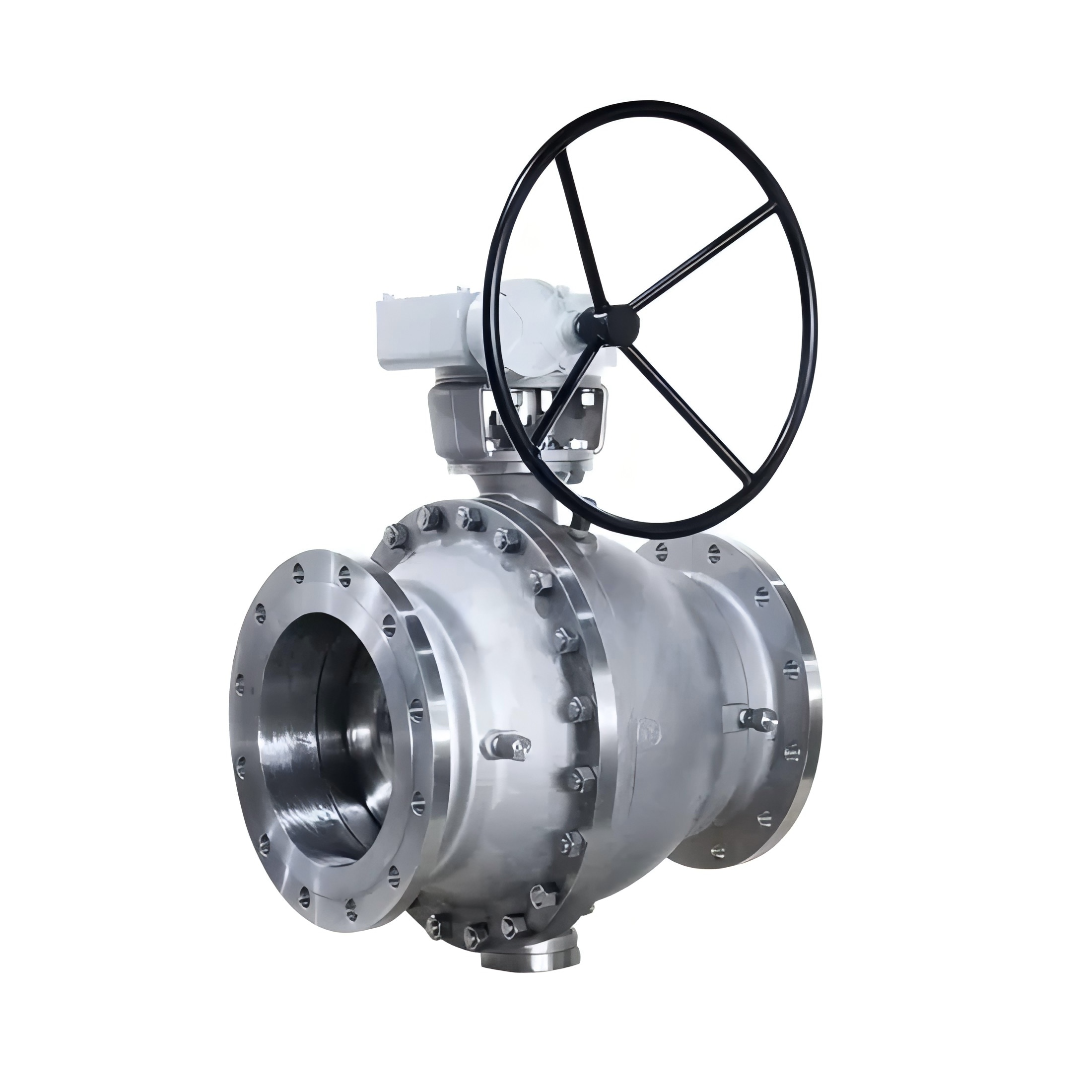

High Temperature Ball Valve
This high temperature ball valves model combines the well-known reliability of SJ valves, the result of many years of experience in producing ball valves for extreme temperatures, with the ability to solve fluid interception problems, the result of constant research and technological control reserved for each individual order.
Over the years, SJ has managed to maintain these product qualities and even make ball valves the most competitive on the market by mass-producing some components, such as metal seats, making them available on a ball valves for high temperature service
With the use of metal seats, it is possible to create ball valves with metal seats with zero leakage, easy maintenance, no adjustment between seat and ball required, and a 40% reduction in operating torque compared to standard metal seat solutions.
Over the years, SJ has managed to maintain these product qualities and even make ball valves the most competitive on the market by mass-producing some components, such as metal seats, making them available on a ball valves for high temperature service
With the use of metal seats, it is possible to create ball valves with metal seats with zero leakage, easy maintenance, no adjustment between seat and ball required, and a 40% reduction in operating torque compared to standard metal seat solutions.

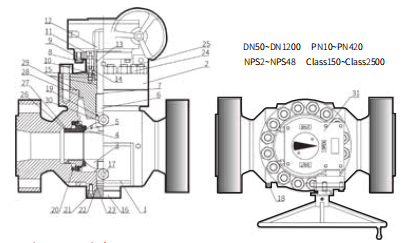

- STEM TIGHNESS
- Dual ring system with loading nut allows correct stem shim preload and adjustment to restore clearance for wear and differential thermal expansion between stem and body
- GASKETS
- Use only Grafoil® gaskets, inherently resistant to high temperatures: no polymers used
- STEM
- The stem is 100% oversized and the maximum torque is the expected torque. Rating DP.
- BOLTS AND FLANGE
- All flange connections are designed in accordance with ASME VIII Div.1 and ANSI B16.34.
- BALL
- Very high precision ground balls are produced in-house, then they are hard coated with the most advanced systems
- SEAT
- Metal seats are preloaded with springs for perfect low pressure bubble tightness to restore lifetime wear and differential thermal expansion between stem and body.
Why SJ?
Precision Mlachined Forged BodyThe forged body tliminates
the possibility of leakage due to poor castings.Predision
finish machining keeps tight tolerances to ensure secureassambly
for high prassure, criical apphcat ons.
Ball/Seat LappingLapping saats to tho ball ensures tght tolorancas,
iimpraving shut.oftsealing capability while lowering torque requiremenes.
