Pneumatic Ball Valve
Features & Benefits
------------------------------------
-Rate Range Class 150 to Class 2500
-Size Range ½” thru 36” (Class Dependent)
-Full and Reduced Bore
-Body Wall Thickness ASME B16.34
-End Connections: RF, RTJ, BW, SW, NPT, BSP, Special
-Fugitive Emissions ISO 15848
-Fire-Safe Tested API 607
-Emergency Sealant Injectors Optional
-Anti-Static Device and Live-Loaded Packing
-Guided Seat Design
-Blowout Proof, Low Torque Guided Stem Design
-Wide Range of Soft and Metal Seated Options
-Manual, Electric, Pneumatic, or Electro-Hydraulic Operators Available
-Custom Face-to-Face Lengths Available
-Options: Emergency Shutdown (ESD) Valves, Welded Body for Municipal Heating, Cryogenic, Metal-Seated, Double Block and Bleed, Double Isolation and Bleed
------------------------------------
-Rate Range Class 150 to Class 2500
-Size Range ½” thru 36” (Class Dependent)
-Full and Reduced Bore
-Body Wall Thickness ASME B16.34
-End Connections: RF, RTJ, BW, SW, NPT, BSP, Special
-Fugitive Emissions ISO 15848
-Fire-Safe Tested API 607
-Emergency Sealant Injectors Optional
-Anti-Static Device and Live-Loaded Packing
-Guided Seat Design
-Blowout Proof, Low Torque Guided Stem Design
-Wide Range of Soft and Metal Seated Options
-Manual, Electric, Pneumatic, or Electro-Hydraulic Operators Available
-Custom Face-to-Face Lengths Available
-Options: Emergency Shutdown (ESD) Valves, Welded Body for Municipal Heating, Cryogenic, Metal-Seated, Double Block and Bleed, Double Isolation and Bleed
Quantity

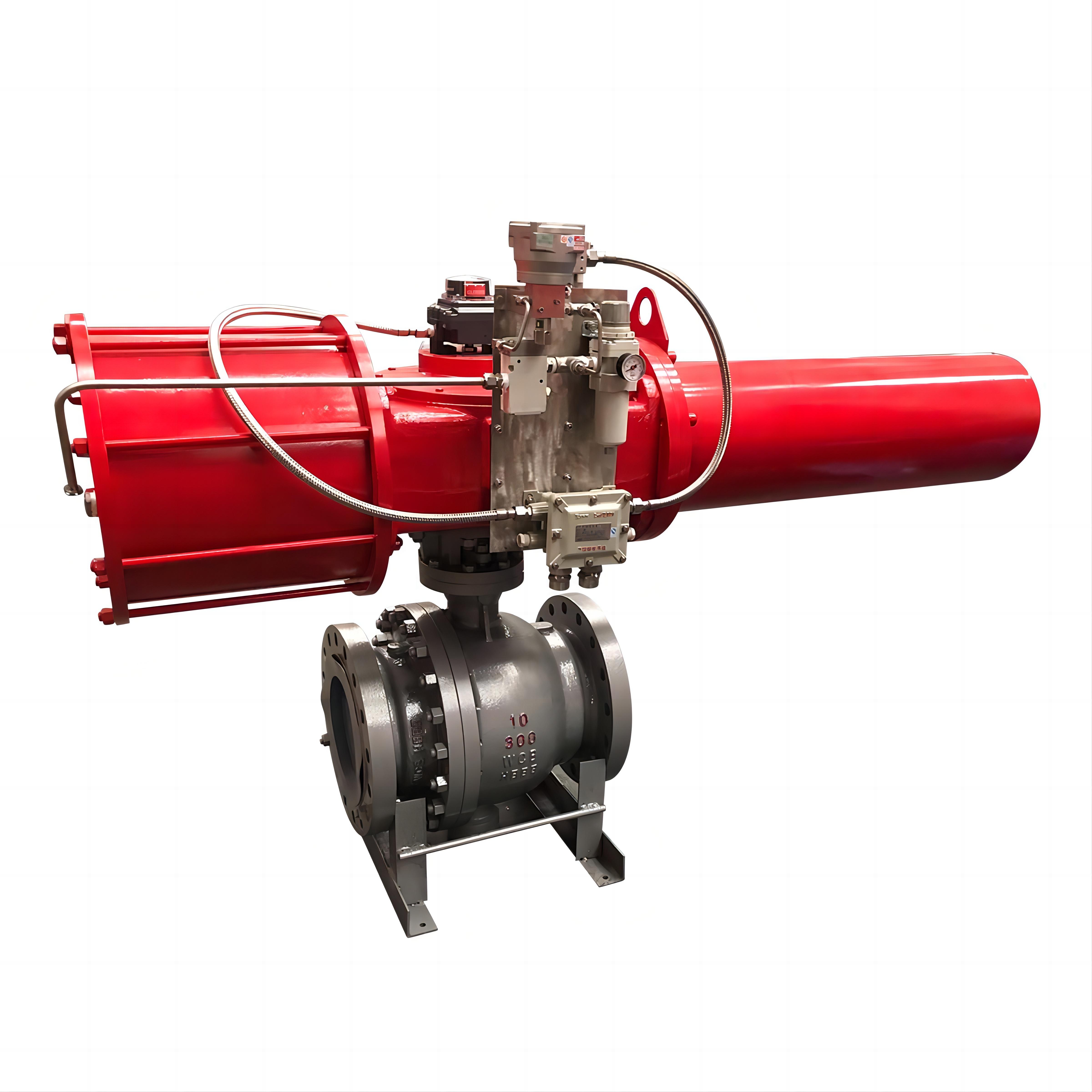

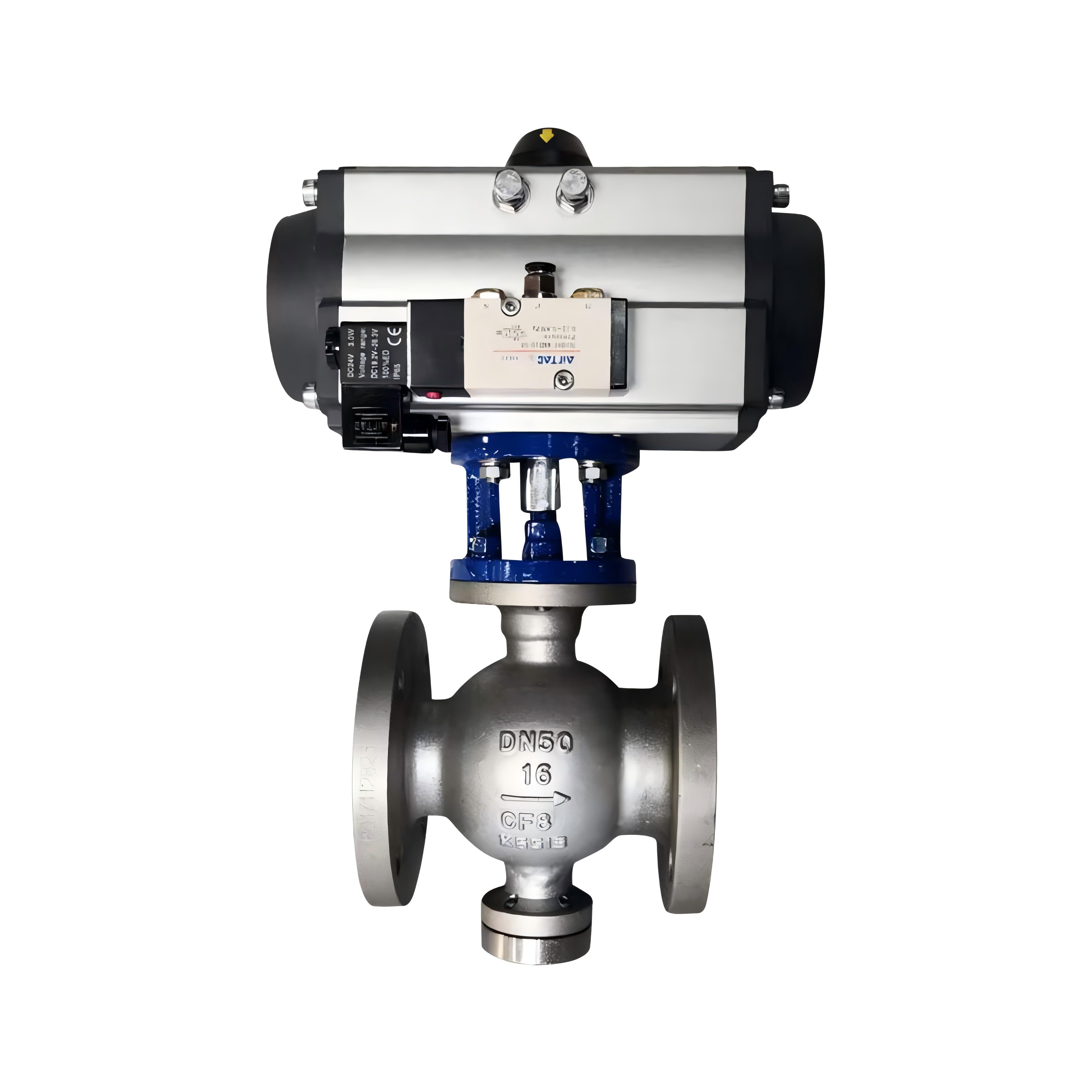

SJ Pneumatic Ball Valve
SJ Pneumatic Ball Valve is an automated valve that is operated by a pneumatic actuator. It utilizes compressed air or gas to drive an internal ball within the valve. Causing it to move and shut off all or part of the flow of a fluid. This allows for precise control of the device, providing users with a reliable and efficient way to regulate their systems.S J Pneumatic Ball Valve actuators are designed with tight seals and close tolerances. This allows for maximum efficiency and minimal energy loss throughout the system. S J Pneumatic Ball Valve are available in a variety of sizes and materials. Ensuring that there is something to suit any application. Additionally, due to their modular design, these valves are highly customizable, allowing for optional accessories to be added for enhanced functionality. All of this makes pneumatic ball valves an ideal solution for many applications where precise control of fluid flow is essential.
Types of S J Pneumatic Ball Valve
There are many types of pneumatically operated ball valves to choose from. The most common are single-acting/double-acting/three-way valves. Single-acting/two-port valves are operated by pneumatic pressure supplied to only one port. The valve is open or closed depending on the direction of supply. These ball valves have a single pilot connection, which is a switch between open and closed positions with a signal from an external source such as a timer, switch. Or a control signal from a gas pressure regulator. Double-acting/three-way valves require two different sources of pressurized air, one to open and one to close the valve. This makes flow control more precise because it can adjust the rate of opening and closing depending on the applied pressure.
Double-acting/three-way valves are operated using two different sources of pressurized air, one to open and one to close the valve. This makes flow control more precise because it can adjust the rate of opening and closing depending on the applied pressure. Three-way valves offer a higher level of accuracy than single-port valves and are ideal for use in industrial processes that require fine adjustments or require high precision. They also offer smoother operation due to their design. Ensure reliable operation in the most demanding applications such as chemical processing, petrochemical refining and pharmaceuticals. Furthermore, they offer increased safety as they allow the liquid flow to be shut off quickly if necessary.
Certifications&Compliance
S J Valves are designed and manufactured to internationally recognized standards including but not limited to the following:
Design: API 6D
Fire Testing: API 607, API 6FA, BS 6755 Part II
Testing: API 6A, API 598, API 17D, ISO 5208, BS 6755 Part I, BS 6364
Marking: API 6A, MSS-SP-25, PED
Certifications: API607, SIL, NACE, MR0175, PED, Fugitive Emissions
Partial List of Applications
- Oil & Gas Fipelines
- Refineries and Petochemical Plants
- Powar Goneration
- Gas and Coal Fired Turbines
- Gas Measurement Systems
- Offshore Piatforms
- Cryogenic Serice Appications
- Emegency Shut Down Wales
- Pulp & Paper
- Mining
- Boiler Sxeam and Drain Applications
- Refineries and Petochemical Plants
- Powar Goneration
- Gas and Coal Fired Turbines
- Gas Measurement Systems
- Offshore Piatforms
- Cryogenic Serice Appications
- Emegency Shut Down Wales
- Pulp & Paper
- Mining
- Boiler Sxeam and Drain Applications

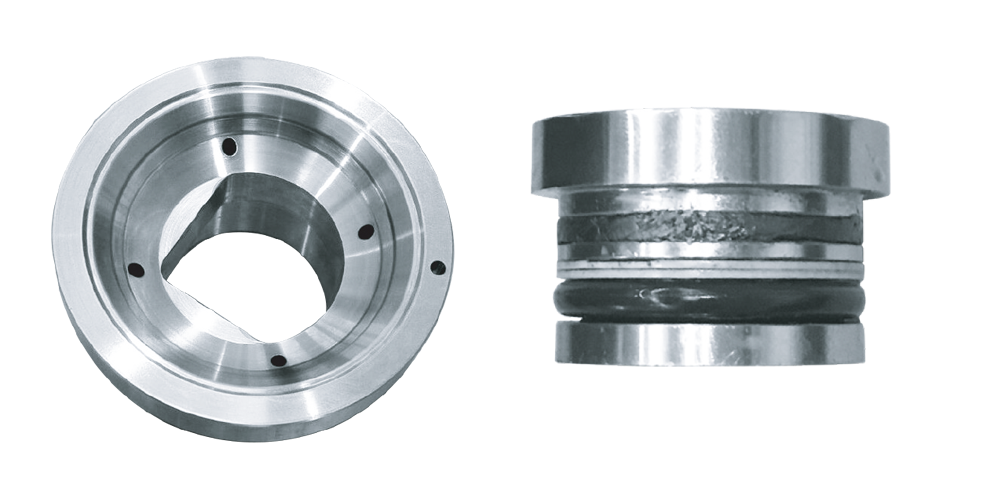

V-Port Seats Available
The S J Valves trunnion mounted ball valve design allows for the use of all types and materials of construction and may be installed in any flow configuration and orientation. Customizable spring configurations and guided seat design gives the option for a carbon steel body and end enclosures with a duplex or stainless seat module. Metal seated options are available for a variety of high temperature, corrosive, or abrasive applications. Our experienced team of engineers can design and build the right valve for your exact requirements. S J trunnion ball valves are Sil 2 certified, fire tested, FE tested, and built for application specific versatility and long term reliability.
