S J Jacketed Ball Valves



Jacket Ball Valves

The function of Jacket Ball Valve

Q: What is the main function of a jacket ball valve in pipeline systems?

A: The jacket ball valve is a special‑purpose ball valve with outer thermal‑insulating jacket structure. Its core functions are medium on‑off isolation and temperature maintenance for easy‑to‑solidify, high‑viscosity media. By passing heating or cooling medium into the jacket cavity, it keeps the internal valve body and process medium at stable temperature, preventing medium condensation, crystallization or solidification which may cause valve stuck or blockage. It can realize reliable cut‑off, pipeline switching and equipment maintenance for heat‑trace required working conditions.

Conclusion: Therefore, the main function of the jacket ball valve is to realize reliable fluid control while maintaining medium temperature, avoiding medium solidification blockage and ensuring stable operation of thermal‑trace pipeline systems.

The principle of using Jacket Ball Valve

Q: What is the working principle of a jacket ball valve?

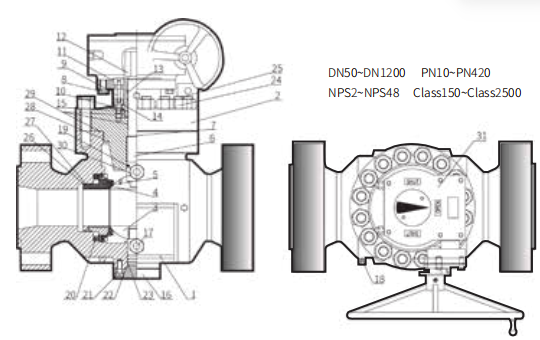

A: The working principle of the jacket ball valve combines 90‑degree rotary ball‑valve switch principle with jacket heat‑transfer structure. The inner ball core rotates 90 degrees to open or close the fluid passage just like ordinary ball valves. An outer hollow jacket covers the main valve‑body. Hot steam, hot oil or cooling fluid circulates inside the jacket cavity, transferring heat energy to the inner valve body, so as to keep the process medium inside the valve from cooling down and solidifying. Sealing seats adopt suitable material matching for viscous or easy‑crystallizing media.

Conclusion: Therefore, the operating principle of the jacket ball valve relies on spherical‑ball rotation to complete pipeline switch, and uses circulating medium inside outer jacket to maintain medium temperature, solving blockage risks caused by medium condensation and solidification.

The operating conditions and advantages of Jacket Ball Valve

Q: What are the common applications and key advantages of Jacket Ball Valves?

A: Jacket ball valves are widely used in chemical, resin, asphalt, paraffin, food and pharmaceutical pipelines, for media easy to crystallize, solidify or high‑viscosity. They adapt to working scenarios requiring steam or heat‑oil tracing. Its key advantages include:

Anti‑blocking Performance: Jacket heat tracing prevents medium condensation, crystallization and solidification inside valve cavity.

Complete Valve Function: Retains ball‑valve merits of quick 90‑degree on‑off and reliable sealing.

Flexible Heat‑medium Selection: Support steam, hot oil and other circulating heating / cooling media for jacket cavity.

Integrated Structure: Jacket and valve‑body are integrated, no extra external heating tape needed.

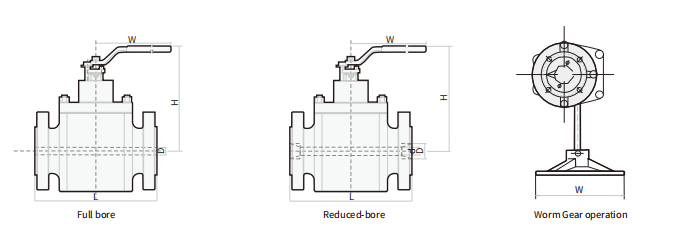

Multiple Structure Options: Available in floating‑ball or trunnion‑mounted type for different pressure and size requirements.

Conclusion: Therefore, the jacket ball valve is a special fluid control solution for easy‑solidify and high‑viscosity media. With prominent anti‑blocking capacity by heat‑trace jacket, it guarantees stable operation for chemical, food and other heat‑required process pipelines.

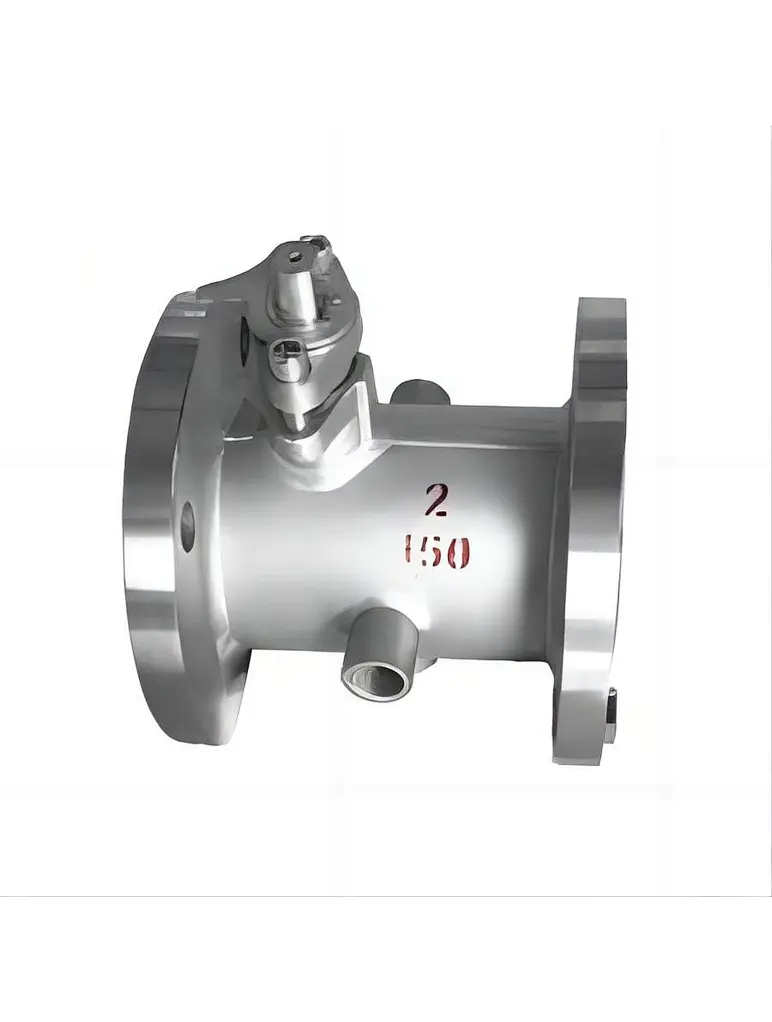

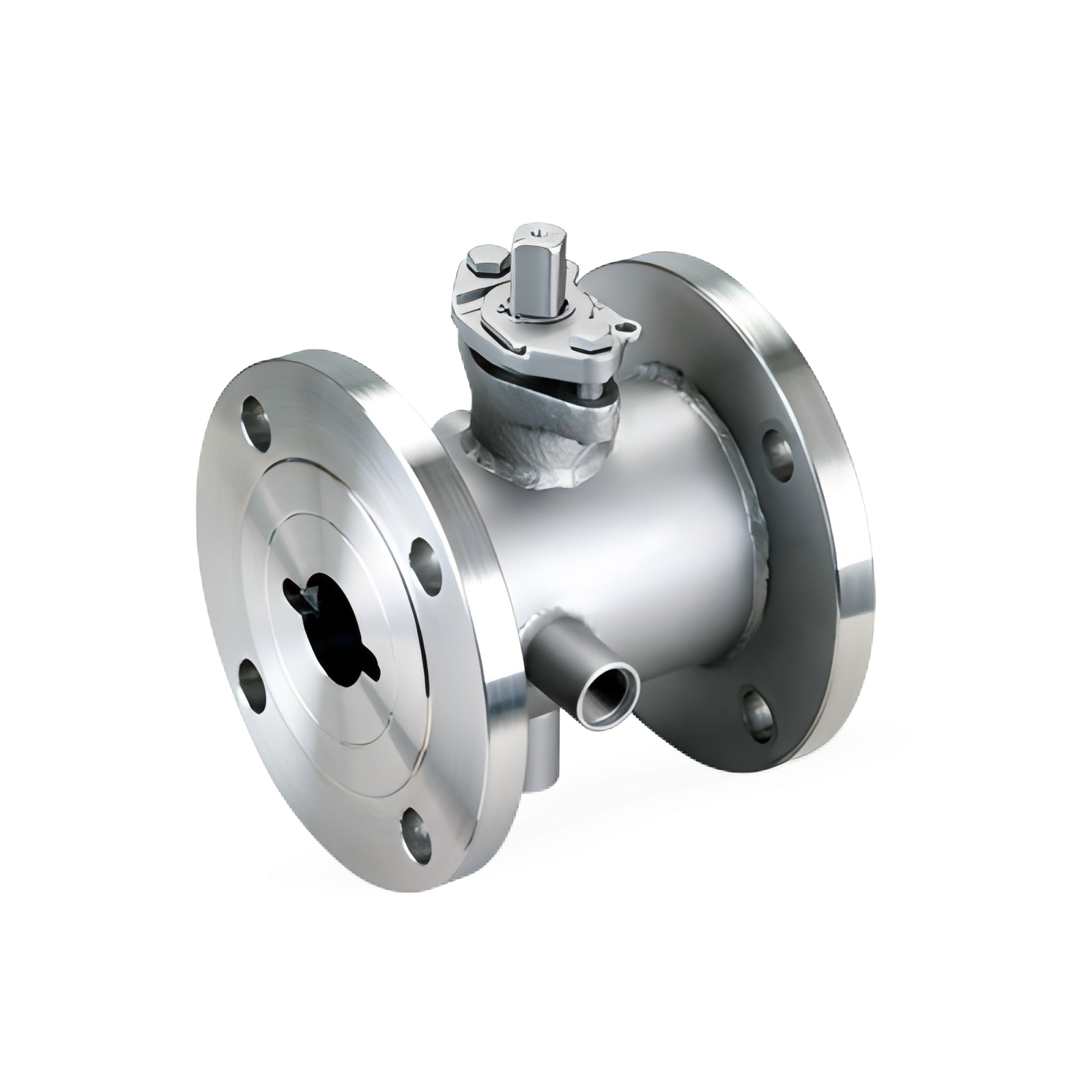

As a leading industrial valve manufacturer, SJ is proud to deliver high‑performance jacket ball valve solutions tailored for chemical, food, pharmaceutical and asphalt working conditions. SJ jacket ball valves adopt integrated jacket structure, supporting steam or hot‑oil tracing service. Available in floating‑ball and trunnion‑mounted versions, they handle easy‑crystallized, high‑viscosity media. Valve bodies can be cast or forged with WCB, stainless steel and other materials. Strictly manufactured according to relevant industrial standards, SJ jacket ball valves avoid medium solidification blockage and provide reliable on‑off sealing performance for heat‑trace process pipelines.
